Abox Pro 025-2,5²/sw

Abox Pro 025-2,5²/sw

Junction box

Abox Pro 025-2,5²/sw

Productnumber: 40202001 | Dimensions: 92 x 92 x 60 mm

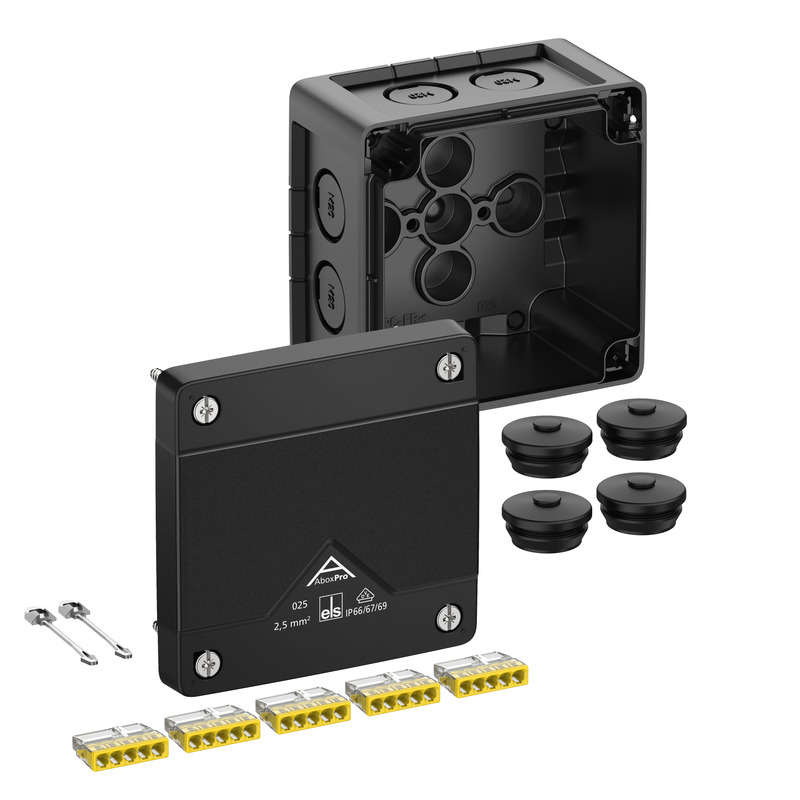

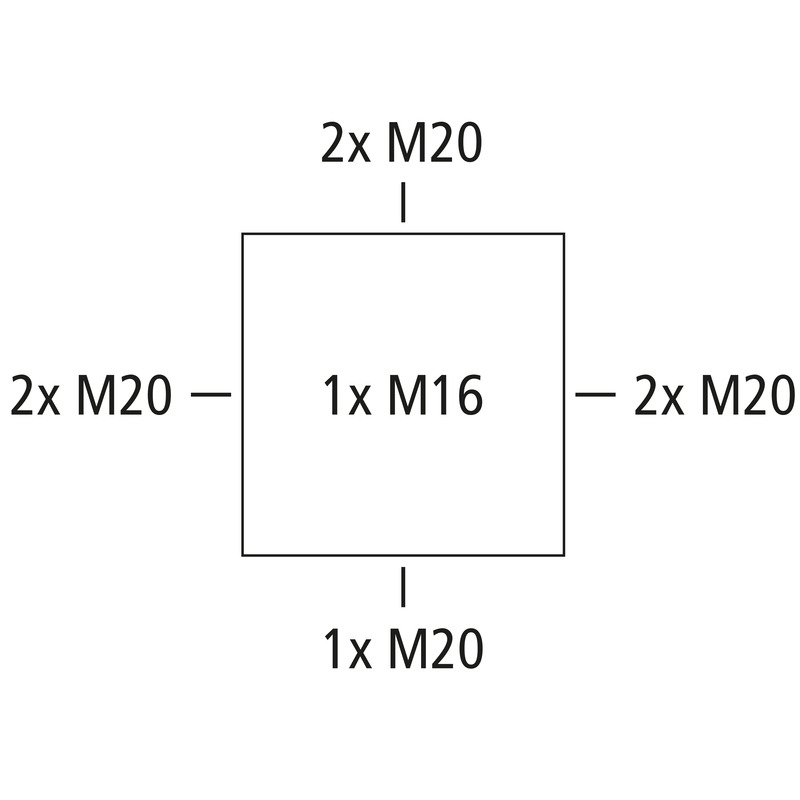

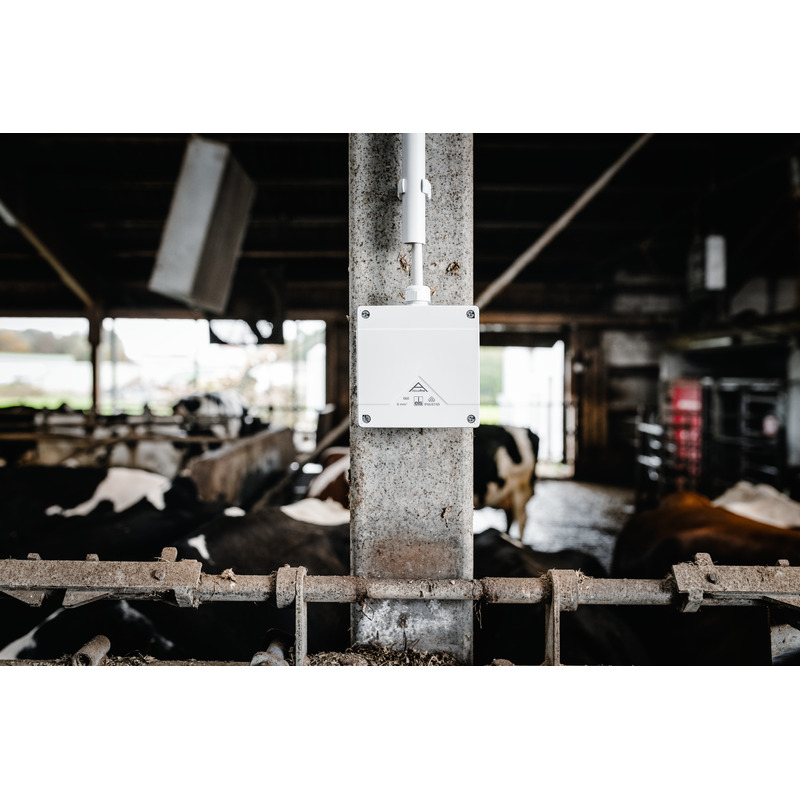

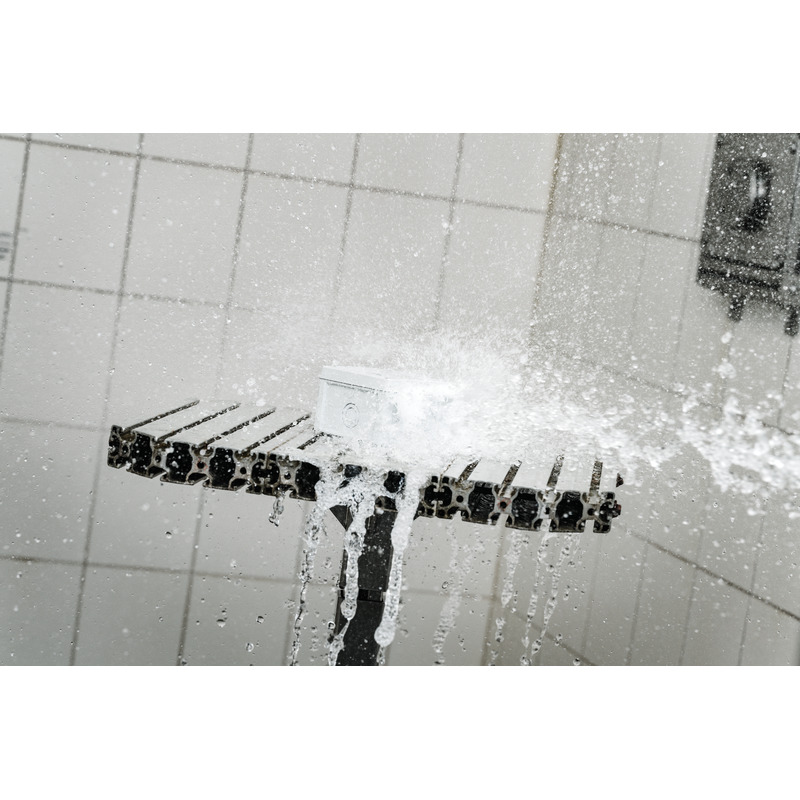

Junction box, protection class IP66/IP67/IP69, nominal cross-section 2.5 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M16/M20, (1 rear, 7 side), internal fixing points, for installation in industrial environments and unprotected outdoor areas

black, U_i=450 V AC, I_n=24 A, with 5 screwless 5-wire terminal, Wago 2273-205, max. nominal cross-section in accordance with DIN EN 60998: 2.5 mm², clampable cross-sections per pole: 5 x 0.5 - 2.5 mm² rigid Cu and Al (follow installation instructions)

Accessories supplied:
4 double membrane seals IP66 M20 sealing range 7 - 13 mm, cover retainer

electrical characteristics

Rated insulation voltage AC	450 V
Rated insulation voltage DC	450 V
Min. conductor cross section	0,5 mm²
Max. conductor cross section	2,5 mm²
Protection class	II
Type of protection	IP66/IP67/IP69
Rated current	24 A
Terminal type	screwless
Number of poles	5

Colours

Base unit colour	black
Cover colour	black

Dimensions

Width	92 mm
Length	92 mm
Height	60 mm
Inner length	78 mm
Inner width	78 mm
Inner height	40 mm
Weight	0.1767 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V0
Glow-wire flammability according to EN 60695-2-11	960 °C

mechanical properties

Impact strength	IK09
Sealable	yes
Cover screw torque	1.5 Nm
Type of fastening	Wall/ceiling mounting
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	60 °C
24h ambient temperature	60 °C
Installation location	unprotected outdoor areas

Sales Information

EAN	4013902662135
Packing Unit Code	C62
ETIM Class	EC002600
Custom tariff number	85369095

Material

Base unit material	Polycarbonate
Cover material	Polycarbonate
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel V2A

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	DLG (Ammonia resistance)
Test mark	DNV (Class: Ships and Offshore Installations)

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction FR/ES	pdf (5 MB)
Assembly instruction DE/EN	pdf (5 MB)

Dimensioned drawing

Dimensional drawing	pdf (3 MB)
Dimensional drawing	dwg (3 MB)
Dimensional drawing	dxf (16 MB)

Certificate

DLG Approval DE	pdf (1 MB)
VDE Certificate DE/EN	pdf (496 KB)
DNV Certificate EN	pdf (198 KB)
CE Declaration DE/EN/FR	pdf (139 KB)
CE Declaration DE/EN/PL	pdf (141 KB)
UKCA Declaration EN	pdf (166 KB)

Accessories

new

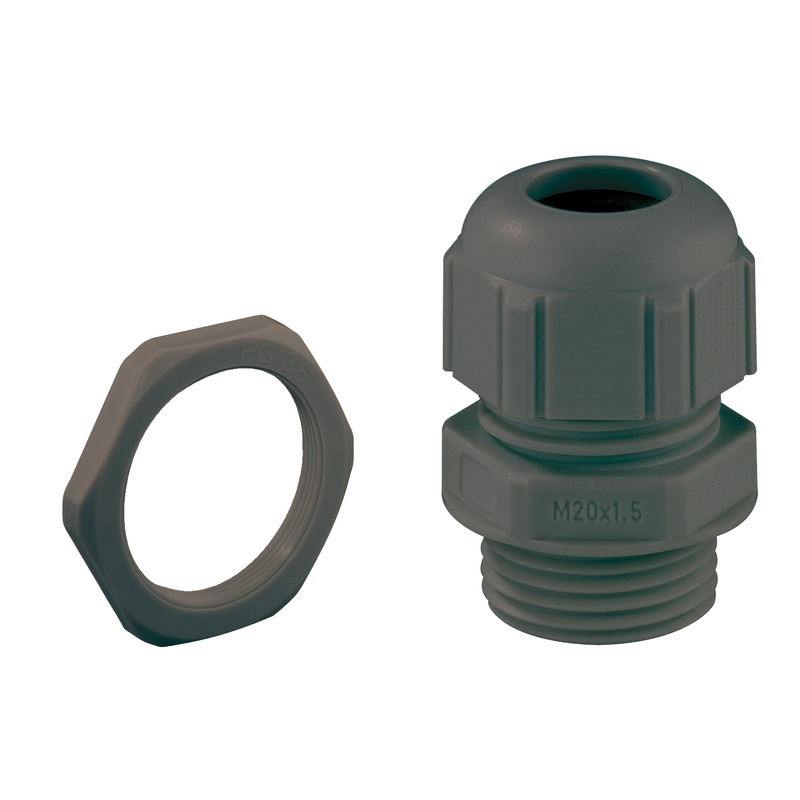

Cable gland - KVR M16-MGM/sw

Cable gland KVR M16-MGM/sw

Dimensions : 22 x 22 x 31 mm
Productnumber: 22701601

Sealing range 4 - 10 mm, Thread length 8 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, black
(*IP69 in...

Watchlist

Cable gland - KVR M20-MGM/sw

Cable gland KVR M20-MGM/sw

Dimensions : 26,5 x 26,5 x 36 mm
Productnumber: 22702001

Sealing range 6 - 12 mm, Thread length 9 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, black
(*IP69 in...

Watchlist

Cable gland - KVR M20-GDB/MGM/sw

Cable gland KVR M20-GDB/MGM/sw

Dimensions : 30 x 30 x 37 mm
Productnumber: 22702101

Sealing range 7 - 14 mm, Thread length 9 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, black
(*IP69 in...

Watchlist

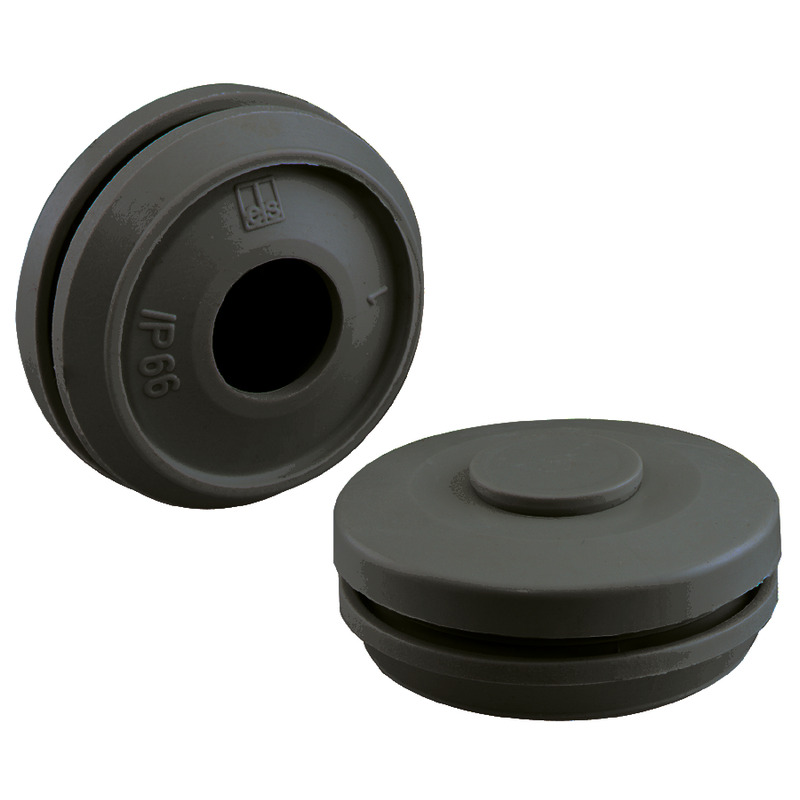

Double-membrane seals - DMS M16/sw

Double-membrane seals DMS M16/sw

Dimensions : 20,7 x 20,7 x 13,2 mm
Productnumber: 26001601

Sealing range 5 - 9 mm

Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...

Watchlist

Double-membrane seals - DMS M20/sw

Double-membrane seals DMS M20/sw

Dimensions : 25,2 x 25,2 x 13,4 mm
Productnumber: 26002001

Sealing range 7 - 13 mm

Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...

Watchlist

new

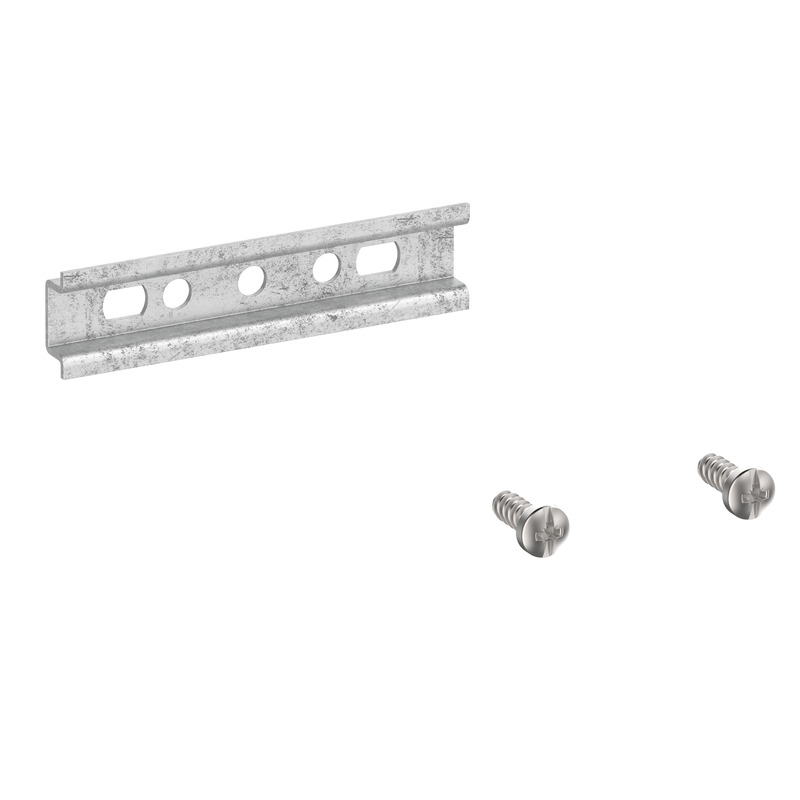

Standard rail - Abox 025 TS15

Standard rail Abox 025 TS15

Dimensions : 15 x 61 x 5,5 mm
Productnumber: 89520201

for Abox / Abox Pro 025

Standard rail in accordance with DIN EN 60715, 15 x 5 mm, incl. fixing screws. For mounting in...

Watchlist

new

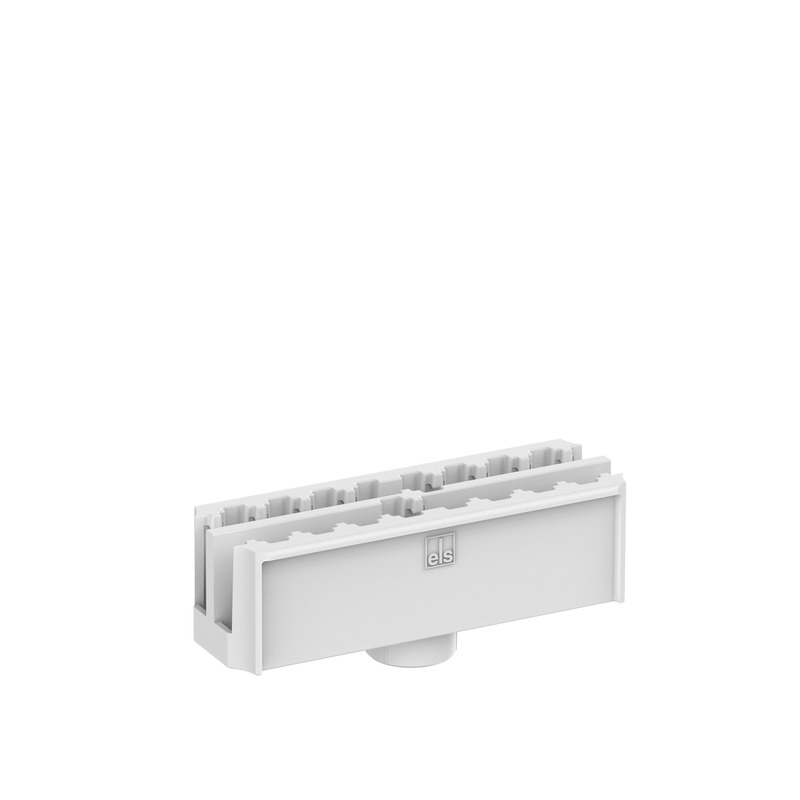

Terminal holder - Abox 025/040 KH 2273 2,5²

Terminal holder Abox 025/040 KH 2273 2,5²

Dimensions : 23 x 70 x 27 mm
Productnumber: 89600201

for position-fixed mounting of up to 6 terminals Wago 2273-205 in...

Terminal holder incl. fixing material for mounting of Wago installation and terminal boxes in Abox...

Watchlist

new

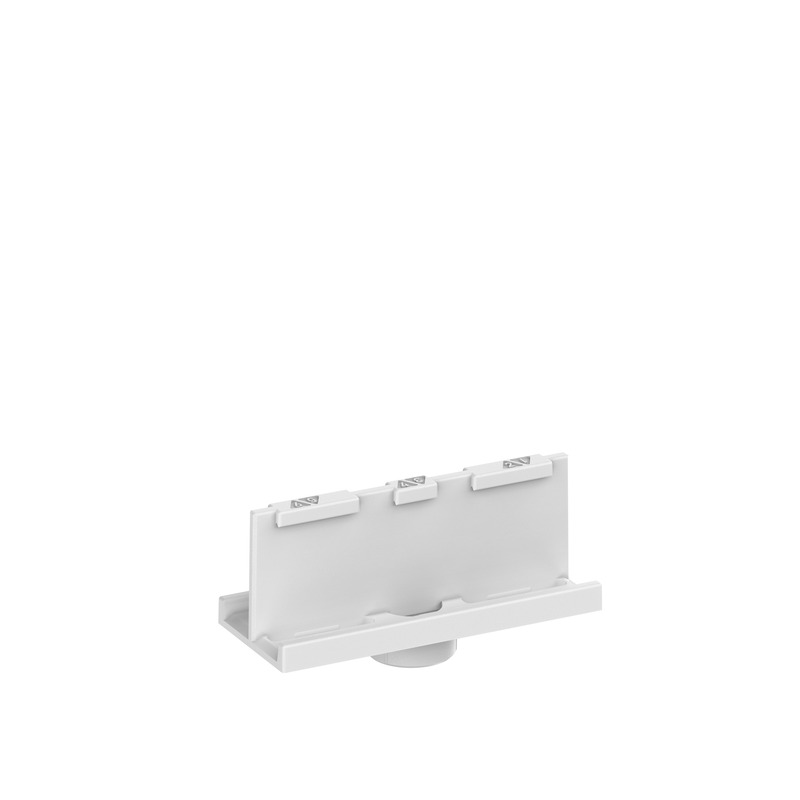

Terminal holder - Abox 025/040 KH 221 4²

Terminal holder Abox 025/040 KH 221 4²

Dimensions : 23 x 56 x 29 mm
Productnumber: 89600301

for position-fixed mounting of up to 6 terminals Wago 221-413 in...

Terminal holder incl. fixing material for mounting of Wago installation and terminal boxes in Abox...

Watchlist

new

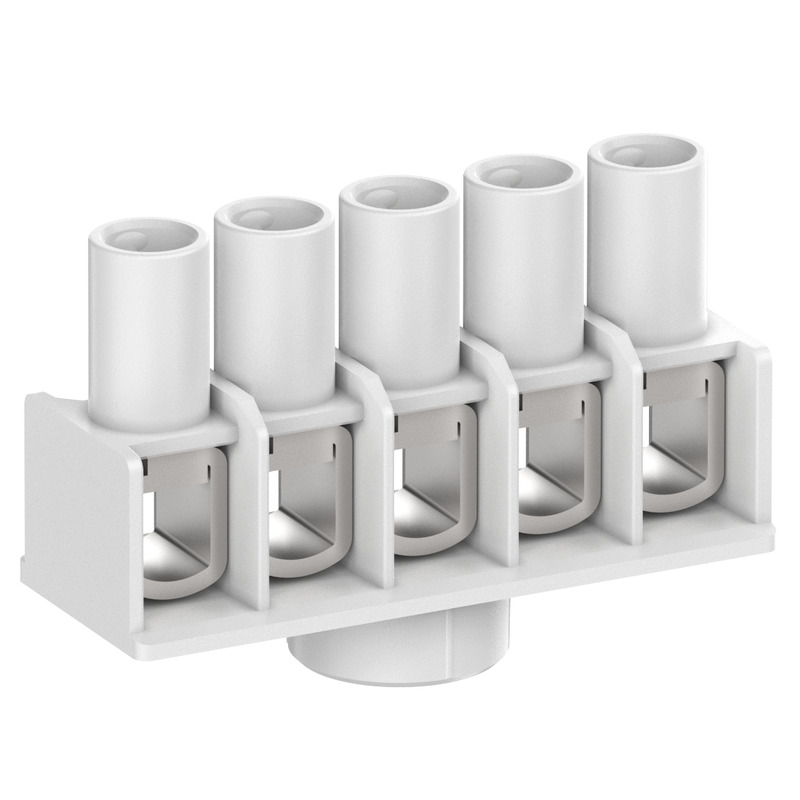

Terminal block - Abox 025/040 KLS-2,5²/4²

Terminal block Abox 025/040 KLS-2,5²/4²

Dimensions : 15 x 46 x 25 mm
Productnumber: 89640401

Screw terminal block for Abox/Abox Pro 025 and Abox/Abox Pro 040,...

Connecting terminal in accordance with DIN EN 60998 (VDE 0613), U_i=690V. For assembly in junction...

Watchlist

new

Mast/pipe fixing set - MABF 65-1

Mast/pipe fixing set MABF 65-1

Dimensions : 38 x 65 x 15 mm
Productnumber: 89601001

for junction boxes Abox / Abox Pro from 2024 onwards of the types Abox...

Mast/pipe fixing set in stainless steel V2A with fastening screws and quick release clamp for...

Watchlist

new

Fastening parts kit - KTB 1

Fastening parts kit KTB 1

Dimensions : 17 x 30 x 14 mm
Productnumber: 89600901

Fixing element for mounting of enclosures on cable tray systems with elongated hole width of 7 mm...

Watchlist

CAD-Data

CAD-Data	Download 3D-CAD-Data

Tender text

Log in to mySpelsberg to download tender texts. mySpelsberg Login

Similar products

new

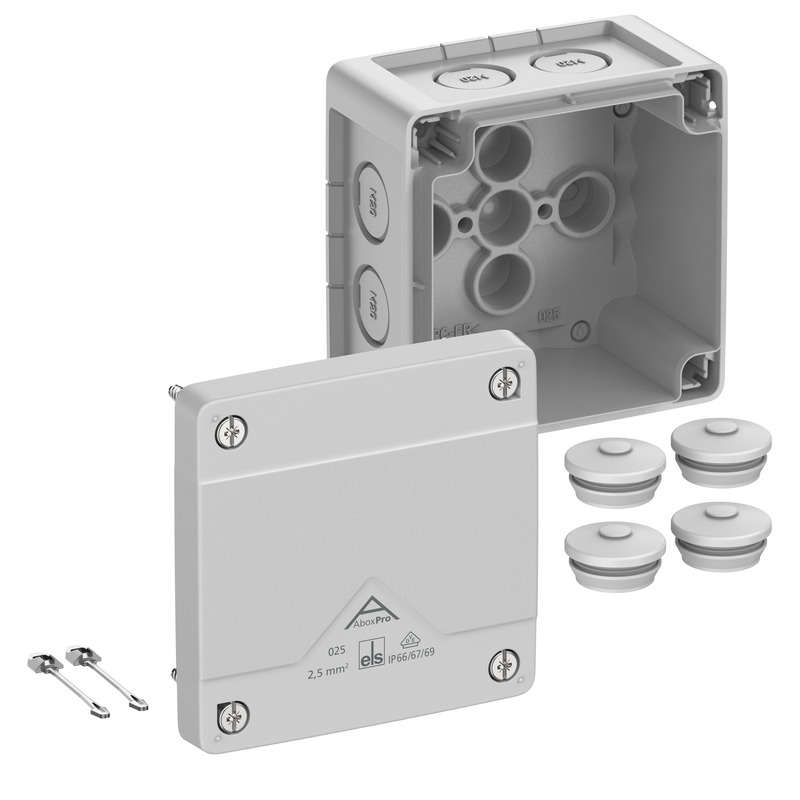

Junction box - Abox Pro 025-L

Junction box Abox Pro 025-L

Dimensions : 92 x 92 x 60 mm
Productnumber: 40240001

grey, U_i=1000 V AC, without terminals

Junction box, protection class IP66/IP67/IP69, nominal cross-section 2.5 mm², certified by VDE (DIN...

Watchlist

new

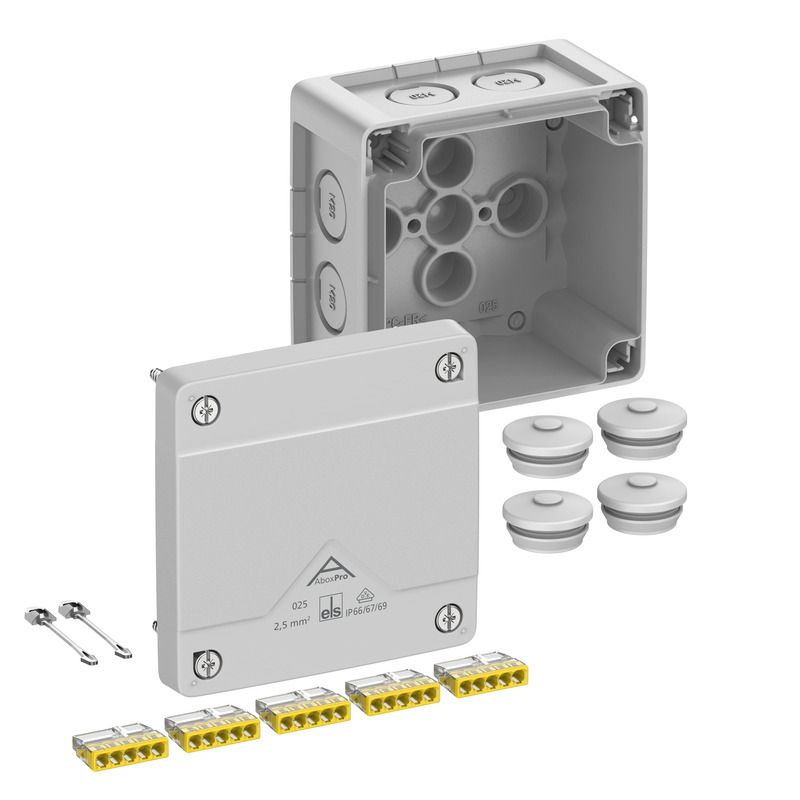

Junction box - Abox Pro 025-2,5²

Junction box Abox Pro 025-2,5²

Dimensions : 92 x 92 x 60 mm
Productnumber: 40242001

grey, U_i=450 V AC, I_n=24 A, with 5 screwless 5-wire terminal, Wago...

Junction box, protection class IP66/IP67/IP69, nominal cross-section 2.5 mm², certified by VDE (DIN...

Watchlist

new

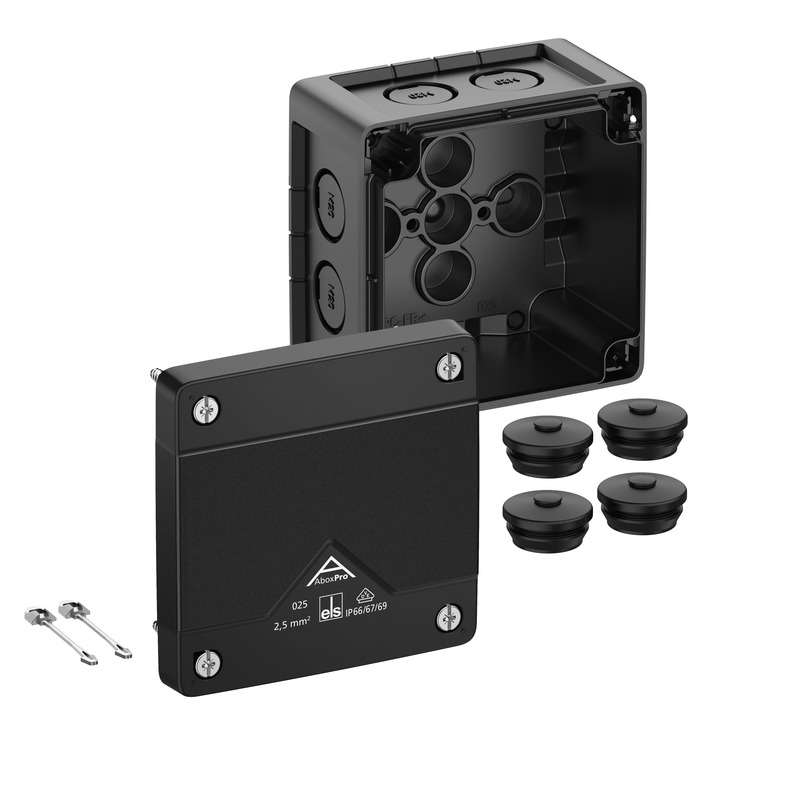

Junction box - Abox Pro 025-L/sw
