Junction box

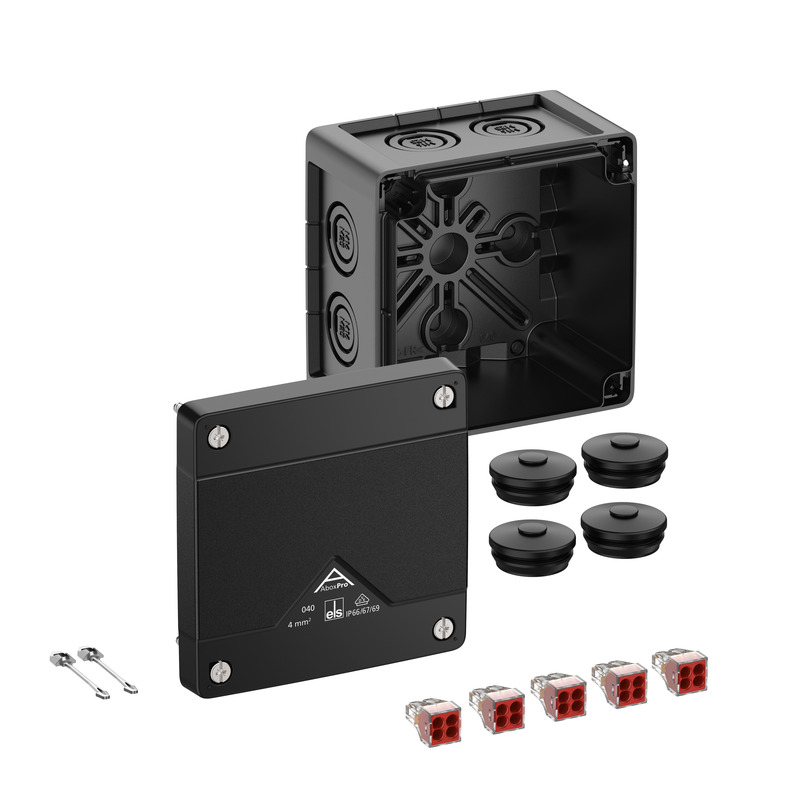

Abox Pro 040-4²/sw

Productnumber: 40402001 | Dimensions: 102 x 102 x 70 mm

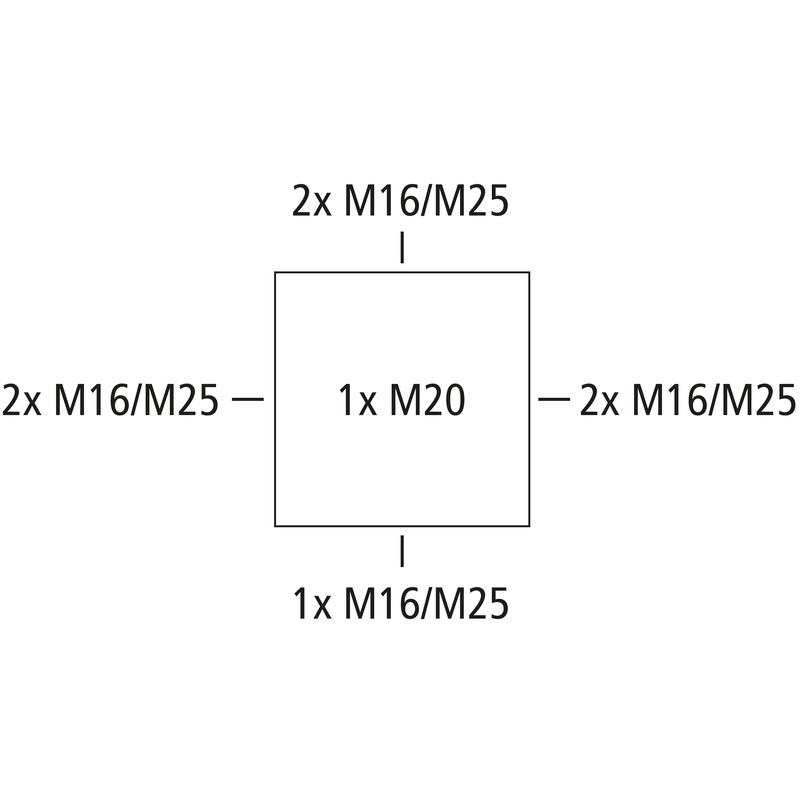

Junction box, protection class IP66/IP67/IP69, nominal cross-section 4 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M16/M20/M25, (1 rear, 7 side), internal fixing points, for installation in industrial environments and unprotected outdoor areas

black, U_i=400 V AC, I_n=32 A, with 5 screwless 4-wire terminal blocks, Wago 773-604, max. nominal cross-section in accordance with DIN EN 60998: 4 mm², clampable cross-sections per pole: 4 x 1.5 - 4.0 mm² rigid Cu/Al (follow installation instructions)

Accessories supplied:

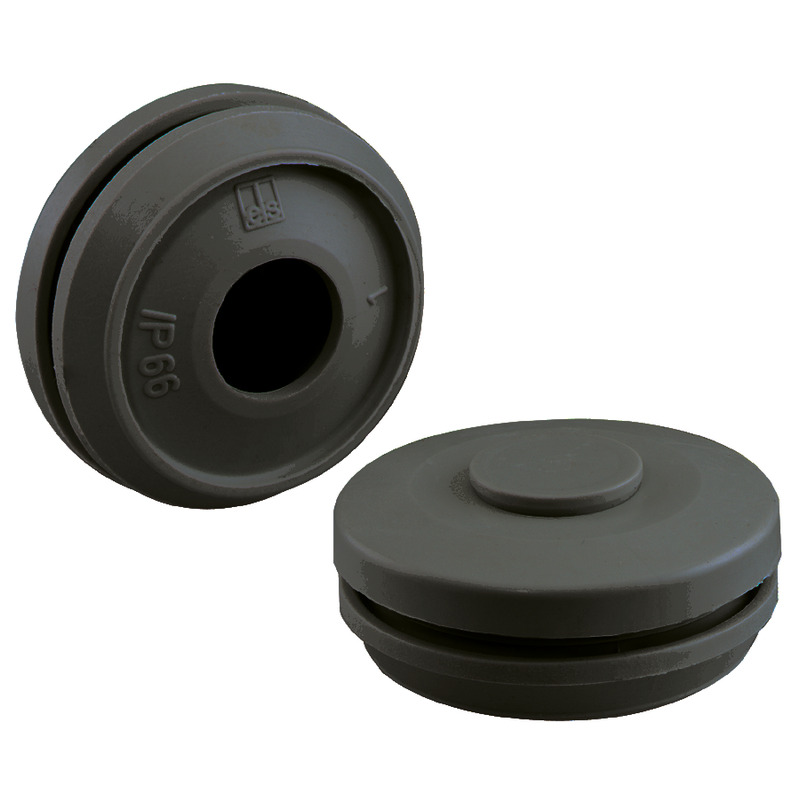

4 double membrane seals IP66 M25 sealing range 9 - 17 mm, cover retainer

electrical characteristics

Rated insulation voltage AC	400 V
Rated insulation voltage DC	400 V
Min. conductor cross section	1,5 mm²
Max. conductor cross section	4 mm²
Protection class	II
Type of protection	IP66/IP67/IP69
Rated current	32 A
Terminal type	screwless
Number of poles	5

Colours

Base unit colour	black
Cover colour	black

Dimensions

Width	102 mm
Length	102 mm
Height	70 mm
Inner length	88 mm
Inner width	88 mm
Inner height	50 mm
Weight	0.23 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V0
Glow-wire flammability according to EN 60695-2-11	960 °C

mechanical properties

Impact strength	IK09
Sealable	yes
Cover screw torque	1.5 Nm
Type of fastening	Wall/ceiling mounting
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	60 °C
24h ambient temperature	60 °C
Installation location	unprotected outdoor areas

Sales Information

EAN	4013902664900
Packing Unit Code	C62
ETIM Class	EC002600
Custom tariff number	85369095

Material

Base unit material	Polycarbonate
Cover material	Polycarbonate
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel V2A

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	DLG (Ammonia resistance)
Test mark	DNV (Class: Ships and Offshore Installations)

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction DE/EN	pdf (5 MB)
Assembly instruction FR/ES	pdf (5 MB)

Dimensioned drawing

Dimensional drawing	pdf (3 MB)
Dimensional drawing	dwg (4 MB)
Dimensional drawing	dxf (19 MB)

Certificate

CE Declaration DE/EN/PL	pdf (141 KB)
VDE Certificate DE/EN	pdf (496 KB)
UKCA Declaration EN	pdf (166 KB)
DNV Certificate EN	pdf (198 KB)
CE Declaration DE/EN/FR	pdf (139 KB)
DLG Approval DE	pdf (1 MB)
