Junction box

Abox Pro 060-L/sw

Productnumber: 40600001 | Dimensions: 127 x 127 x 75 mm

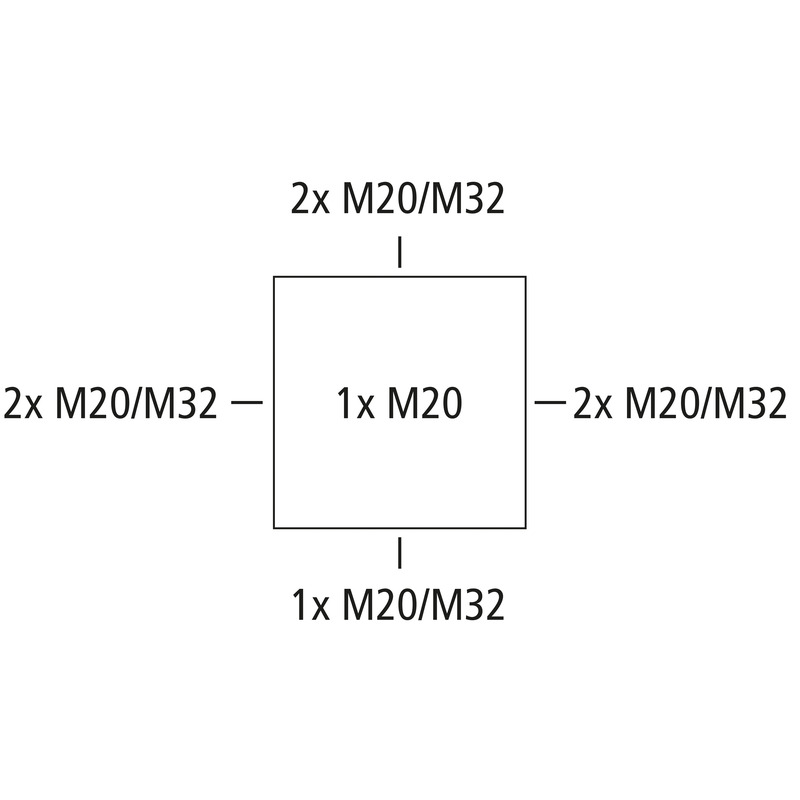

Junction box, protection class IP66/IP67/IP69, nominal cross-section 6 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M20/M32, (1 rear, 7 side), internal fixing points, for installation in industrial environments and unprotected outdoor areas

black, U_i=1000 V AC, without terminals

Accessories supplied:
4 double membrane seals IP66 M32 sealing range 13 - 21 mm, cover retainer

electrical characteristics

Rated insulation voltage AC	1000 V
Rated insulation voltage DC	1000 V
Max. conductor cross section	6 mm²
Protection class	II

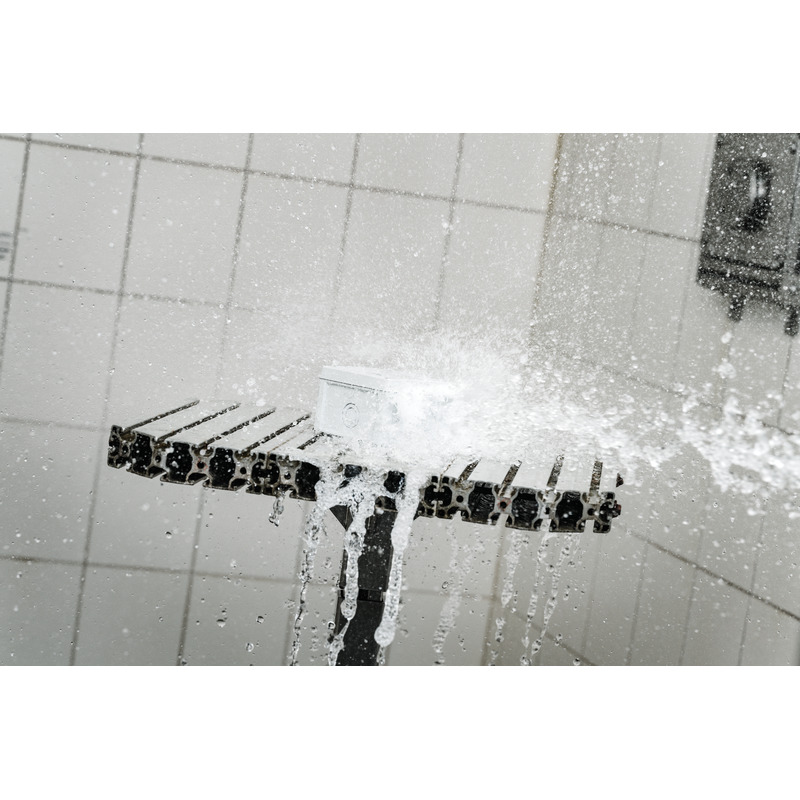

Type of protection	IP66/IP67/IP69
Terminal type	none

Colours

Base unit colour	black
Cover colour	black

Dimensions

Width	127 mm
Length	127 mm
Height	75 mm
Inner length	113 mm
Inner width	113 mm
Inner height	55 mm
Weight	0.312 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V0
Glow-wire flammability according to EN 60695-2-11	960 °C

Max. number of terminals per cross section acc. to DIN VDE 0606-1

max. amount of terminals at 1,5²	14
max. amount of terminals at 2,5²	10
max. amount of terminals at 4²	8
max. amount of terminals at 6²	5

<p>Max. number of wires per cross section acc. to DIN VDE 0606-1</p>

max. amount of wires at 1,5²	40
max. amount of wires at 2,5²	30
max. amount of wires at 4²	24
max. amount of wires at 10²	15

mechanical properties

Impact strength	IK09
Sealable	yes
Cover screw torque	1.5 Nm
Type of fastening	Wall/ceiling mounting
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	80 °C
24h ambient temperature	60 °C

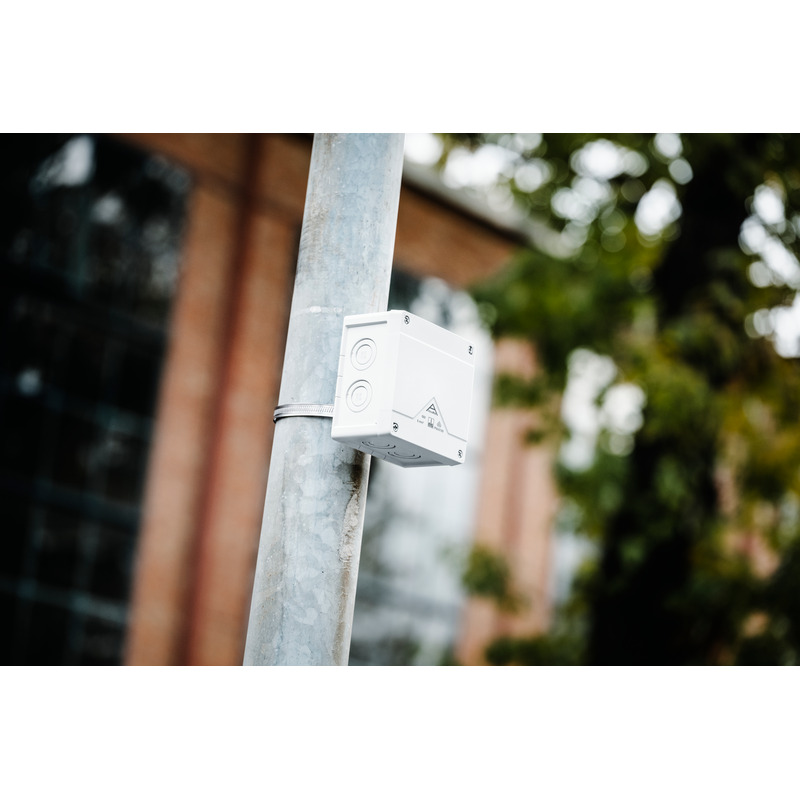

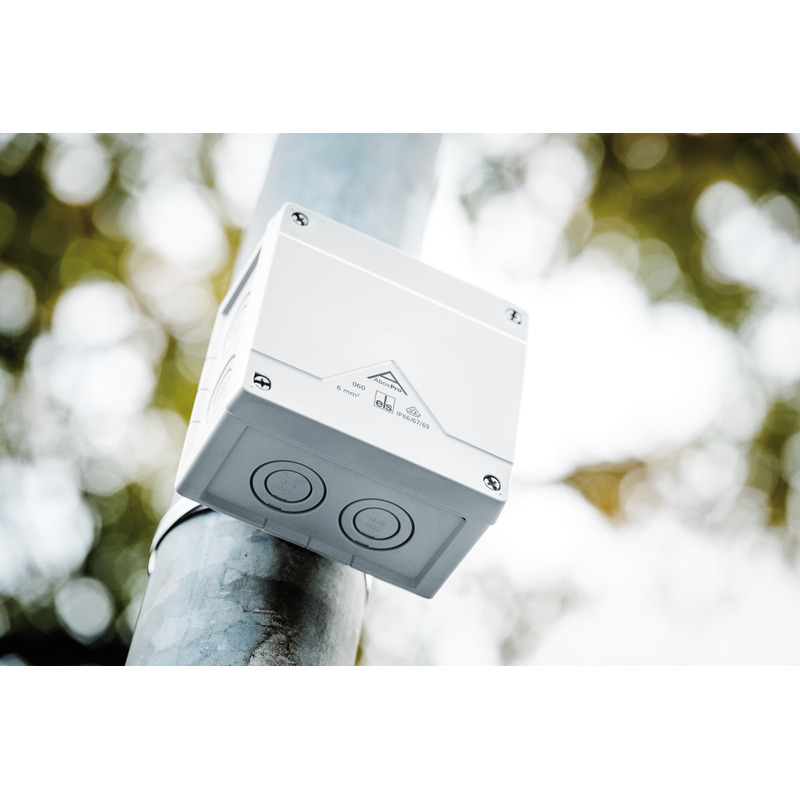

Installation location	unprotected outdoor areas

Sales Information

EAN	4013902664399
Packing Unit Code	C62
ETIM Class	EC002600
Custom tariff number	85389099

Material

Base unit material	Polycarbonate
Cover material	Polycarbonate
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel V2A

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	DLG (Ammonia resistance)

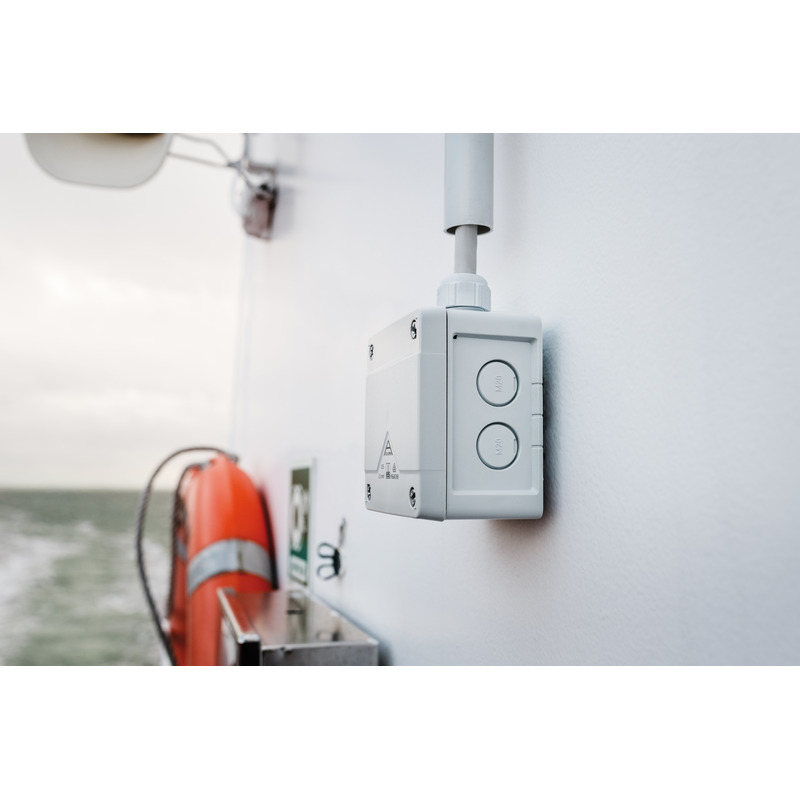

Test mark	DNV (Class: Ships and Offshore Installations)

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction DE/EN	pdf (5 MB)
Assembly instruction FR/ES	pdf (5 MB)

Dimensioned drawing

Dimensional drawing	dxf (26 MB)
Dimensional drawing	pdf (5 MB)
Dimensional drawing	dwg (5 MB)

Certificate

DNV Certificate EN	pdf (198 KB)
DLG Approval DE	pdf (1 MB)
CE Declaration DE/EN/FR	pdf (139 KB)
UKCA Declaration EN	pdf (166 KB)
VDE Certificate DE/EN	pdf (496 KB)
CE Declaration DE/EN/PL	pdf (141 KB)
