Junction box

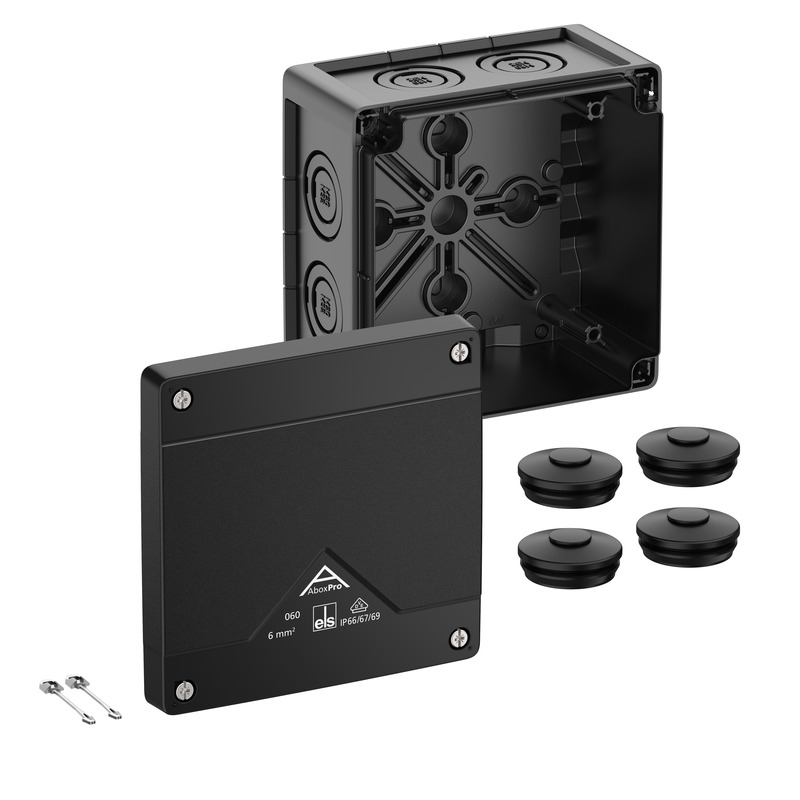

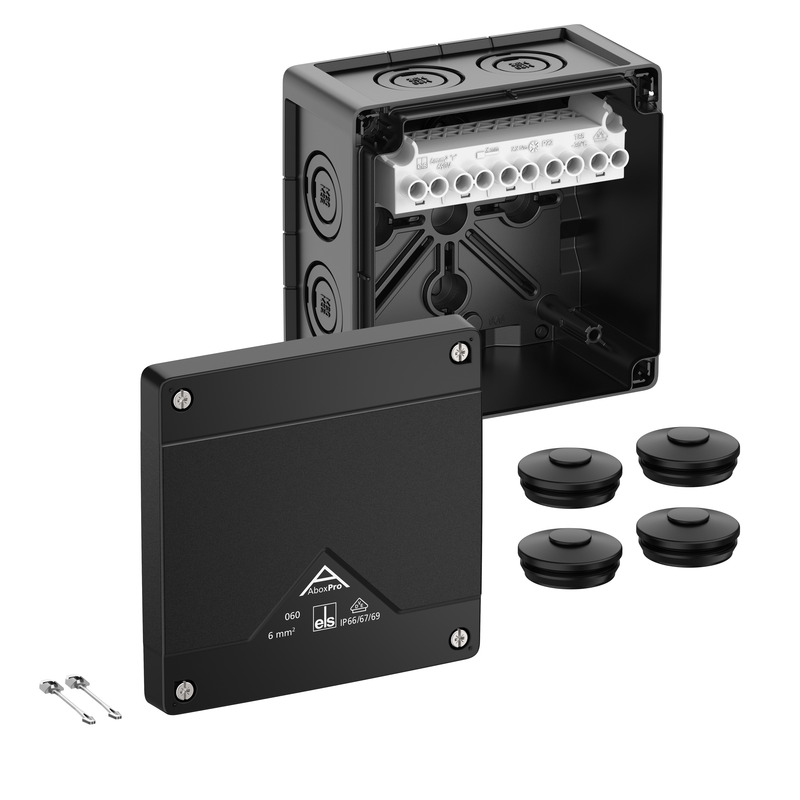

Abox Pro 060-6²/sw

Productnumber: 40602001 | Dimensions: 127 x 127 x 75 mm

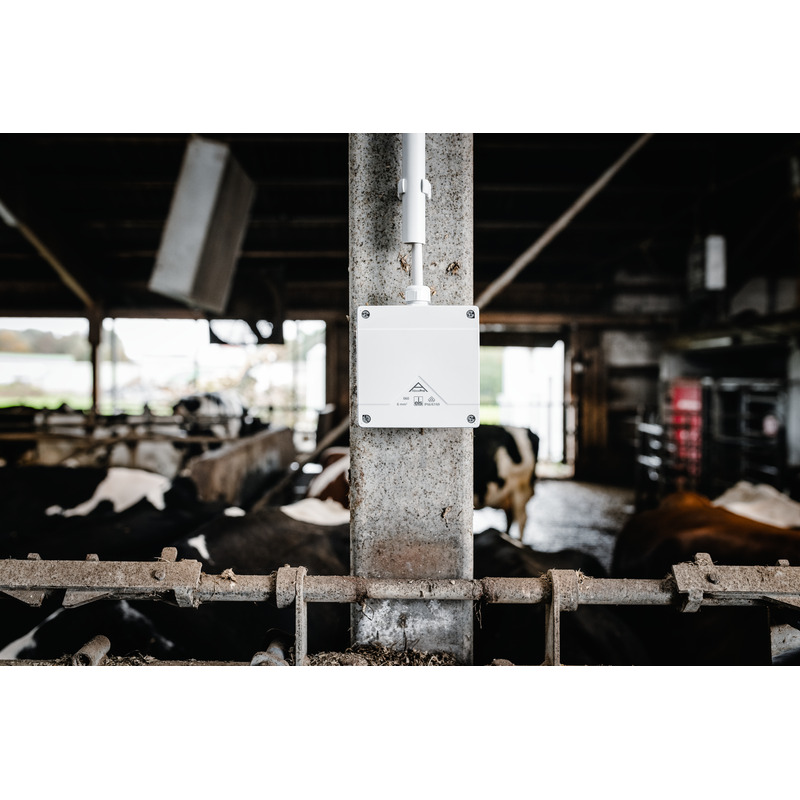

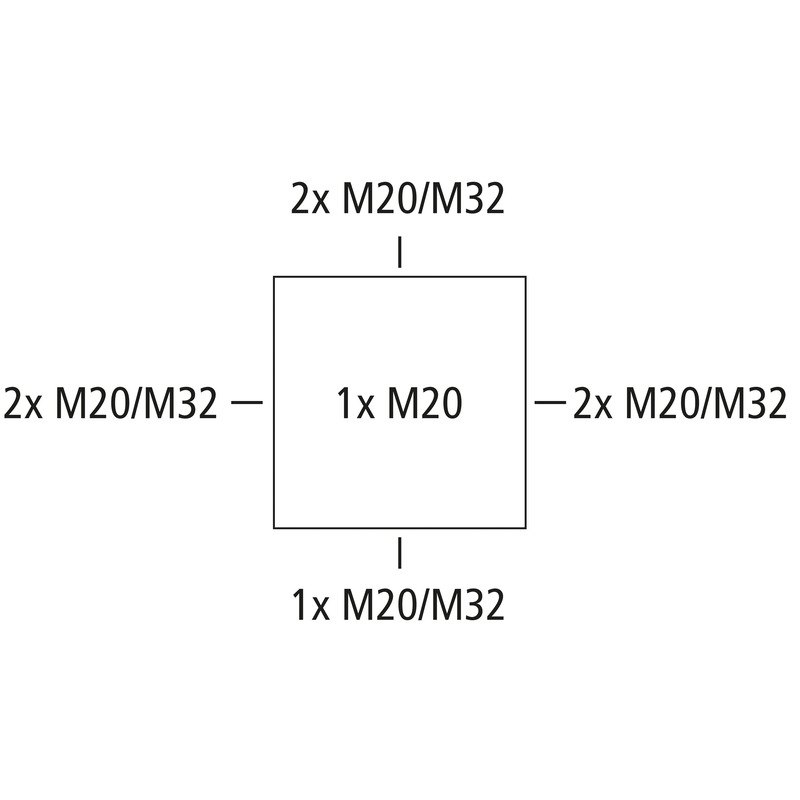

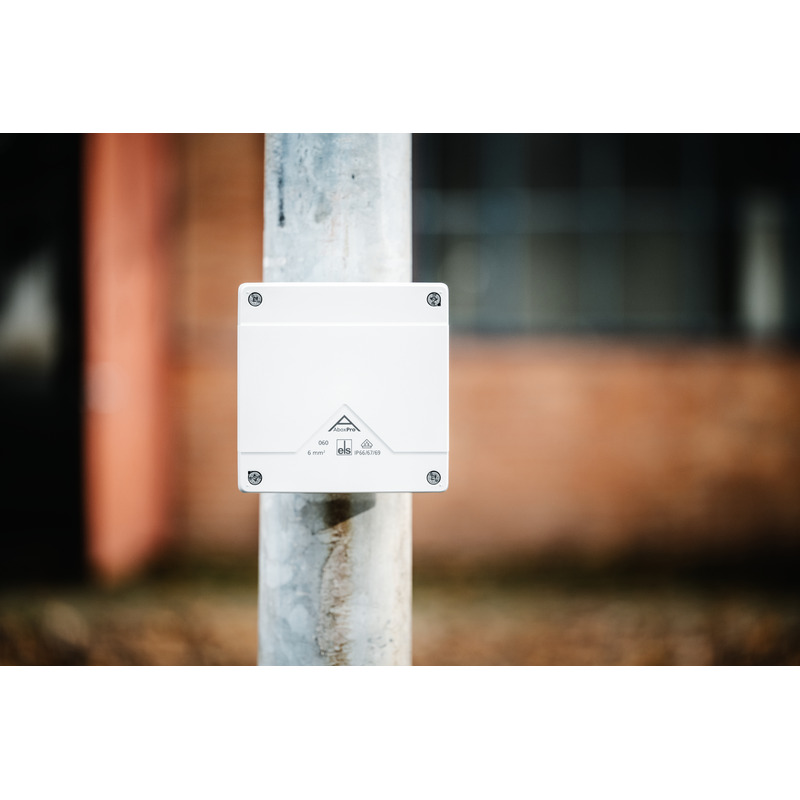

Junction box, protection class IP66/IP67/IP69, nominal cross-section 6 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M20/M32, (1 rear, 7 side), internal fixing points, for installation in industrial environments and unprotected outdoor areas

black, U_i=690 V AC, I_n=41 A, with raised screw terminal block, 5-pole - 6 mm², clampable cross-sections per pole: 4 x 1.5 mm², 4 x 2.5 mm², 4 x 4 mm², 4 x 6 mm² rigid Cu/flexible with wire-end ferrule

Accessories supplied:
4 double membrane seals IP66 M32 sealing range 13 - 21 mm, cover retainer

electrical characteristics

Rated insulation voltage AC	690 V
Rated insulation voltage DC	690 V
Min. conductor cross section	1,5 mm²
Max. conductor cross section	6 mm²
Protection class	II
Type of protection	IP66/IP67/IP69
Rated current	41 A
Terminal type	Screw terminal
Number of poles	5

Colours

Base unit colour	black
Cover colour	black

Dimensions

Width	127 mm
Length	127 mm
Height	75 mm
Inner length	113 mm
Inner width	113 mm
Inner height	55 mm
Weight	0.3805 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V0
Glow-wire flammability according to EN 60695-2-11	960 °C

mechanical properties

Impact strength	IK09
Sealable	yes
Cover screw torque	1.5 Nm
Type of fastening	Wall/ceiling mounting
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	80 °C
24h ambient temperature	60 °C

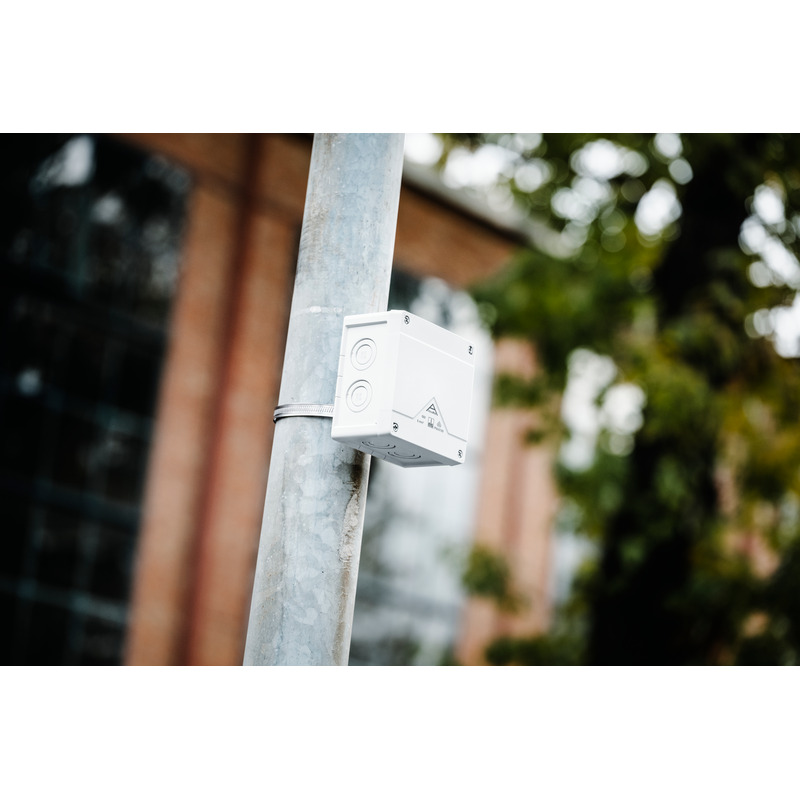

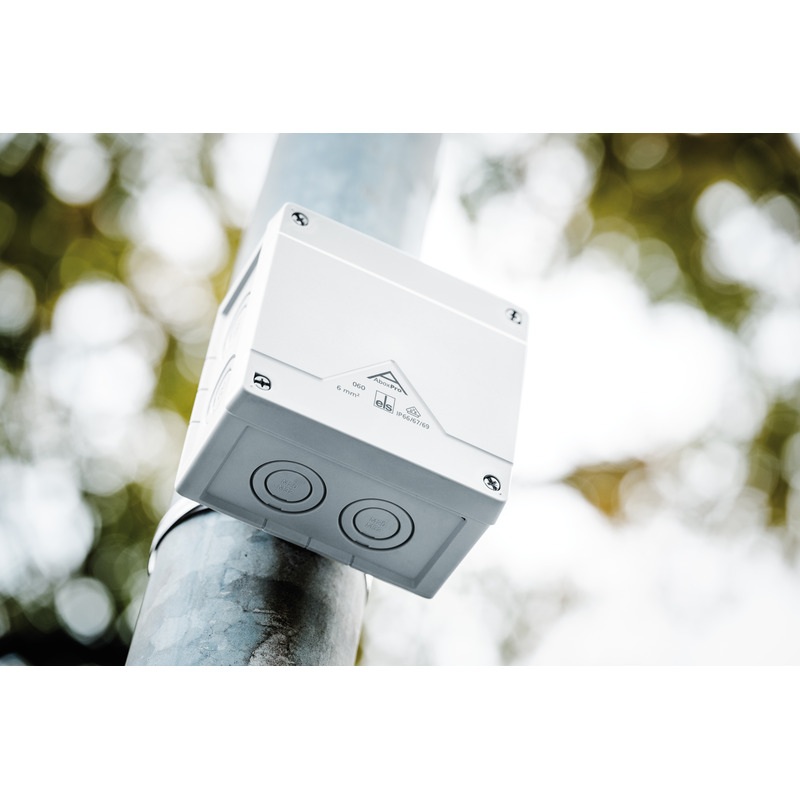

Installation location	unprotected outdoor areas

Sales Information

EAN	4013902664337
Packing Unit Code	C62
ETIM Class	EC002600
Custom tariff number	85369095

Material

Base unit material	Polycarbonate
Cover material	Polycarbonate
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel V2A

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))

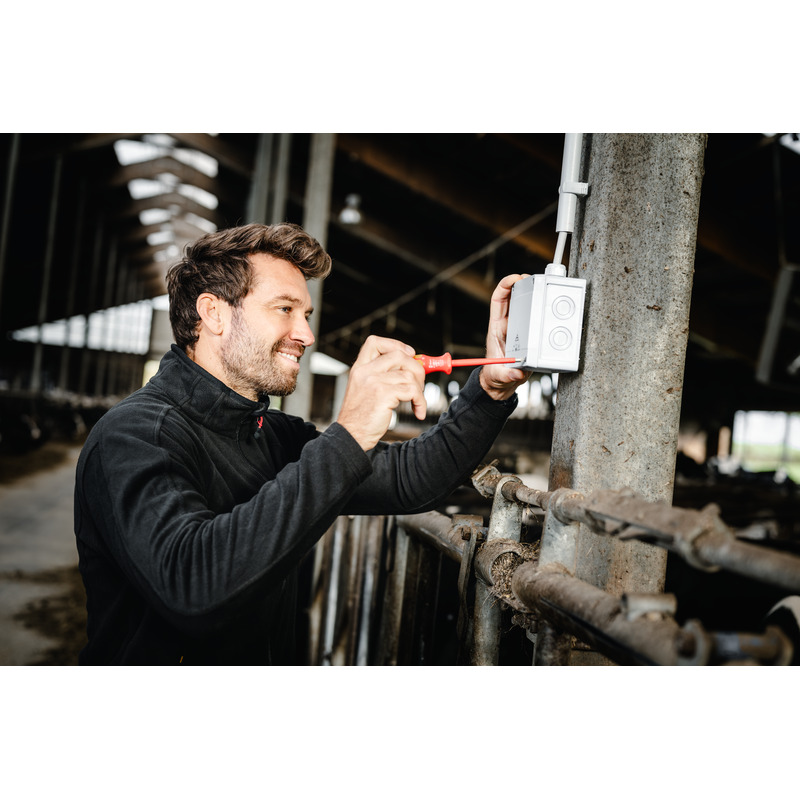

Test mark	DLG (Ammonia resistance)

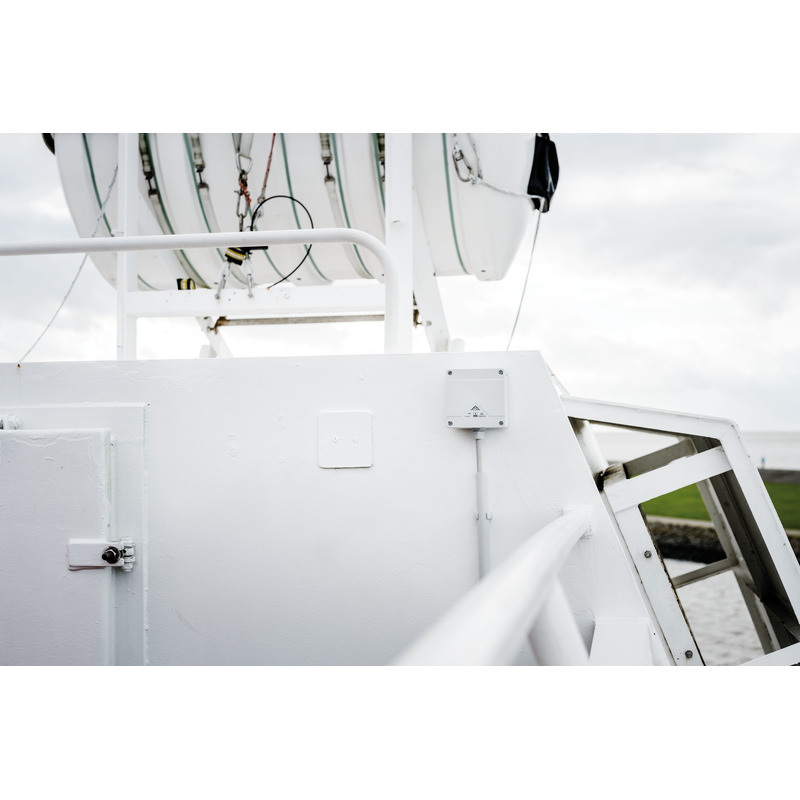

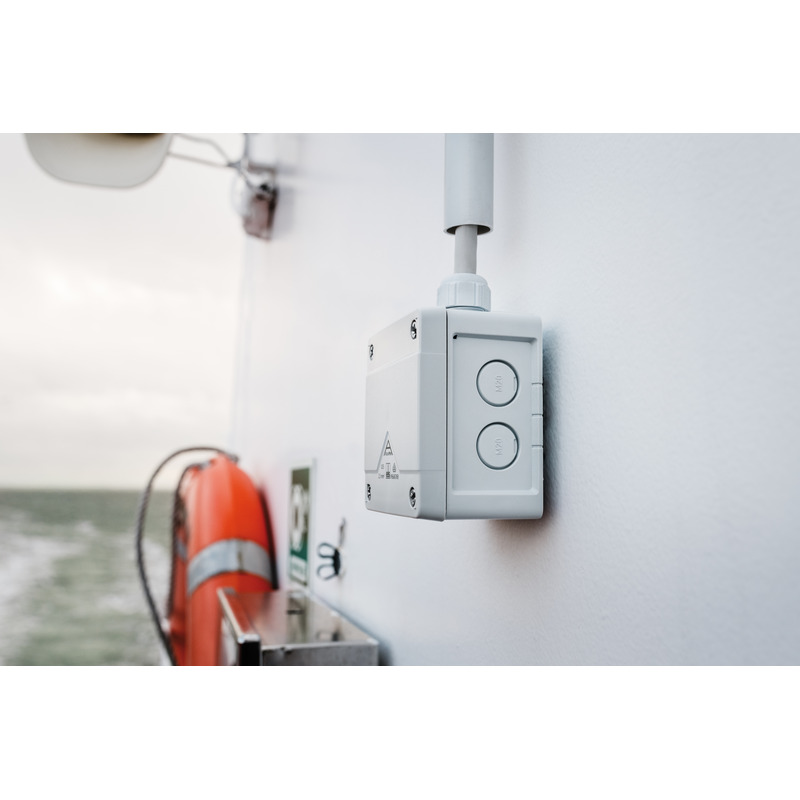

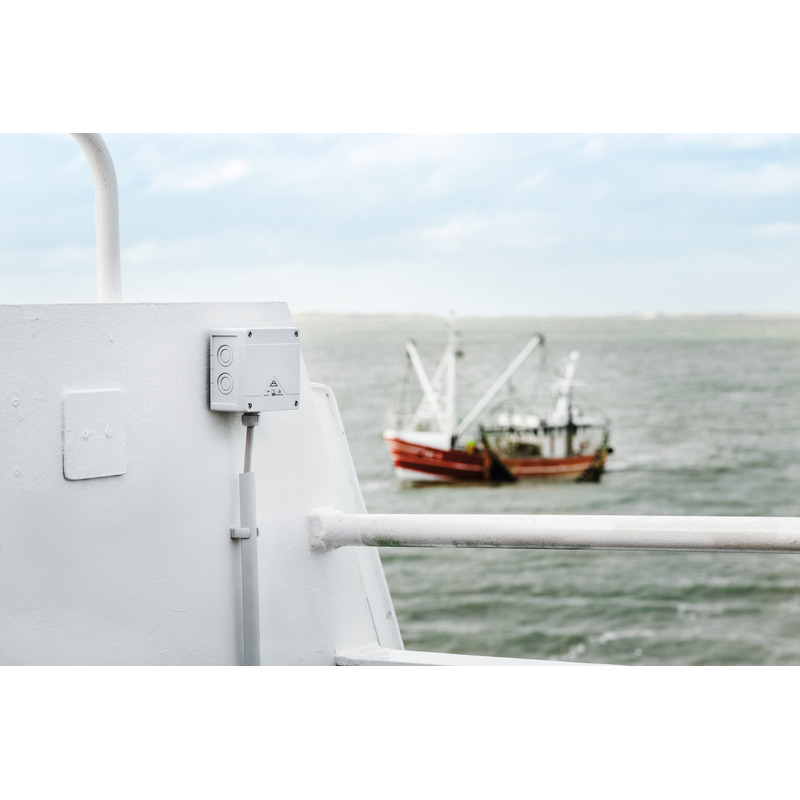

Test mark	DNV (Class: Ships and Offshore Installations)

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction DE/EN	pdf (5 MB)
Assembly instruction FR/ES	pdf (5 MB)

Dimensioned drawing

Dimensional drawing	dxf (26 MB)
Dimensional drawing	pdf (5 MB)
Dimensional drawing	dwg (5 MB)

Certificate

CE Declaration DE/EN/FR	pdf (139 KB)
VDE Certificate DE/EN	pdf (496 KB)
CE Declaration DE/EN/PL	pdf (141 KB)
UKCA Declaration EN	pdf (166 KB)
DNV Certificate EN	pdf (198 KB)
DLG Approval DE	pdf (1 MB)

Accessories

Cable gland - KVR M20-MGM/sw

Cable gland KVR M20-MGM/sw

Dimensions : 26,5 x 26,5 x 36 mm
Productnumber: 22702001

Sealing range 6 - 12 mm, Thread length 9 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, black
(*IP69 in...

Watchlist

Cable gland - KVR M20-GDB/MGM/sw

Cable gland KVR M20-GDB/MGM/sw

Dimensions : 30 x 30 x 37 mm
Productnumber: 22702101

Sealing range 7 - 14 mm, Thread length 9 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, black
(*IP69 in...

Watchlist

Cable gland - KVR M32-MGM/sw

Cable gland KVR M32-MGM/sw

Dimensions : 40 x 40 x 50 mm
Productnumber: 22703201

Sealing range 11 - 21 mm, Thread length 11 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, black
(*IP69 in...

Watchlist

Double-membrane seals - DMS M20/sw

Double-membrane seals DMS M20/sw

Dimensions : 25,2 x 25,2 x 13,4 mm
Productnumber: 26002001

Sealing range 7 - 13 mm

Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...

Watchlist

Double-membrane seals - DMS M32/sw

Double-membrane seals DMS M32/sw

Dimensions : 36,7 x 36,7 x 14,7 mm
Productnumber: 26003201

Sealing range 13 - 21 mm

Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...

Watchlist

new

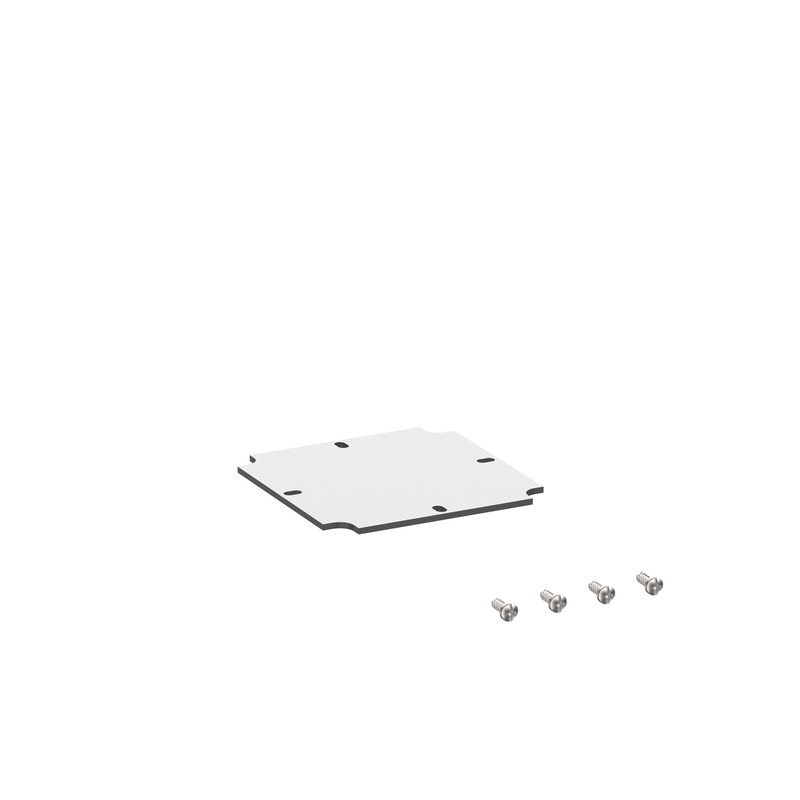

Mounting plate - Abox MPI 060

Mounting plate Abox MPI 060

Dimensions : 94 x 94 x 2,5 mm
Productnumber: 89510601

for Abox / Abox Pro 060

Mounting plate in melamine lined insulating material, 2.5 mm thickness, grey incl. fixing screws....

Watchlist

new

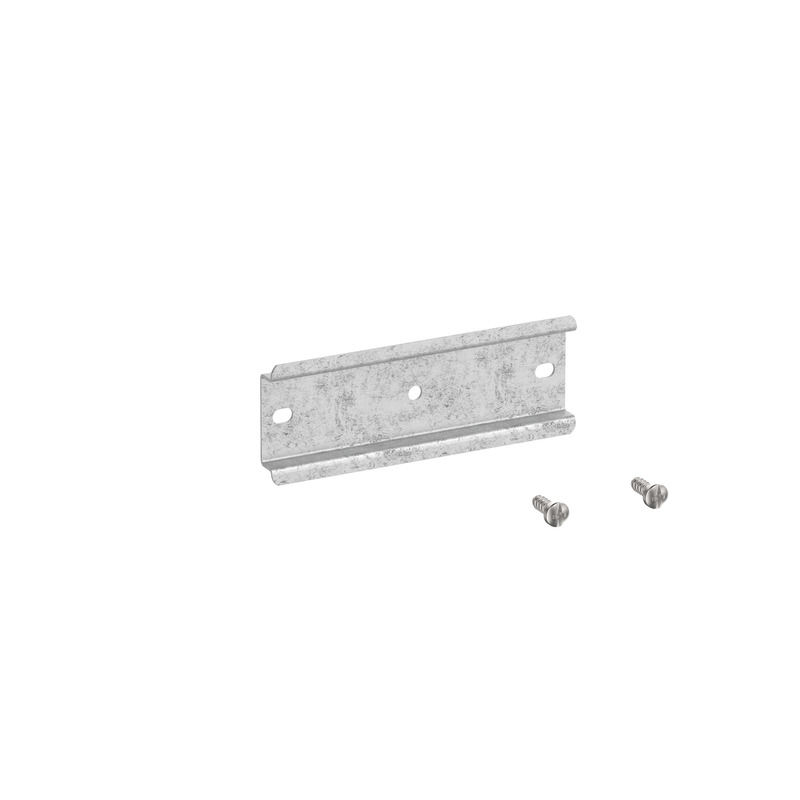

Standard rail - Abox 060 NS35

Standard rail Abox 060 NS35

Dimensions : 35 x 95 x 7,5 mm
Productnumber: 89530601

for Abox / Abox Pro 060

Standard rail in accordance with DIN EN 60715, 35 x 7.5 mm, incl. fixing screws. For mounting in...

Watchlist

new

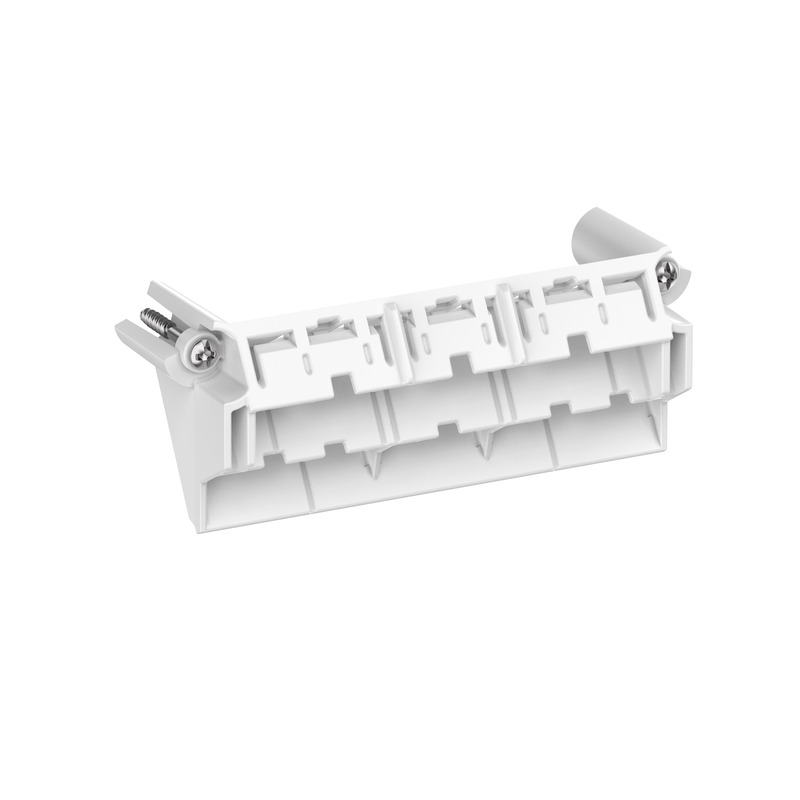

Terminal holder - Abox 060 KH 221 4²

Terminal holder Abox 060 KH 221 4²

Dimensions : 22 x 88 x 32 mm
Productnumber: 89600401

for position-fixed and elevated mounting of up to 6 terminals Wago...

Terminal holder incl. fixing material for mounting of Wago installation and terminal boxes in Abox...

Watchlist

new

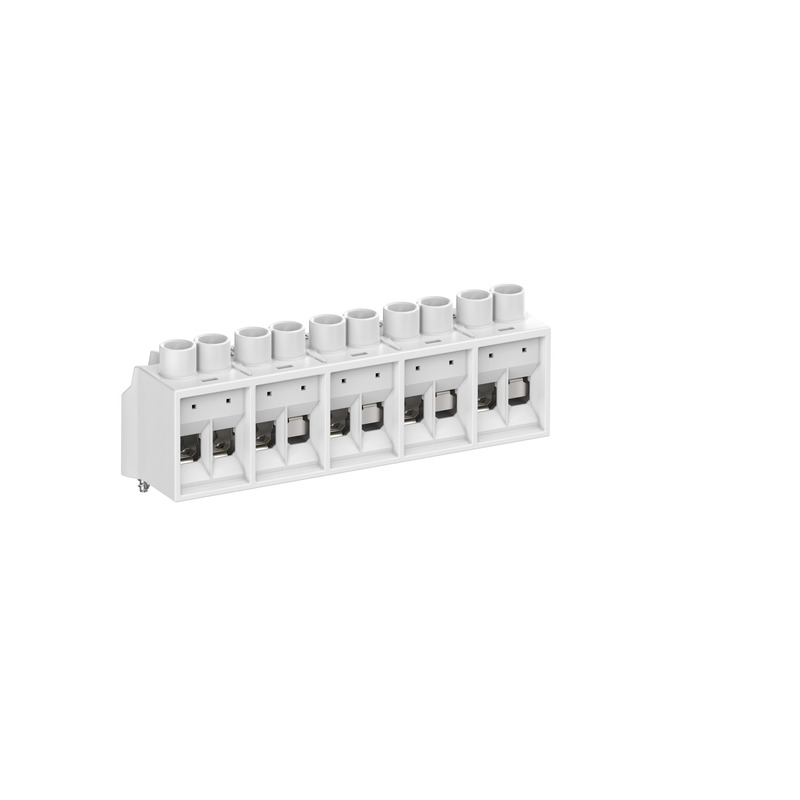

Terminal block - Abox 060 KLS-6²

Terminal block Abox 060 KLS-6²

Dimensions : 23 x 98 x 32 mm
Productnumber: 89640601

Screw terminal block for Abox/Abox Pro 060, 5-pole - 6 mm², I_n = 41 A,...

Connecting terminal in accordance with DIN EN 60998 (VDE 0613), U_i=690V. For assembly in junction...

Watchlist

new

Mast/pipe fixing set - MABF 100-1

Mast/pipe fixing set MABF 100-1

Dimensions : 38 x 100 x 15 mm
Productnumber: 89602001

for junction boxes Abox / Abox Pro from 2024 onwards of the types Abox...

Mast/pipe fixing set in stainless steel V2A with fastening screws and quick release clamp for...

Watchlist

new

Fastening parts kit - KTB 1

Fastening parts kit KTB 1

Dimensions : 17 x 30 x 14 mm
Productnumber: 89600901

Fixing element for mounting of enclosures on cable tray systems with elongated hole width of 7 mm...

Watchlist

CAD-Data

CAD-Data	Download 3D-CAD-Data

Tender text

Log in to mySpelsberg to download tender texts. mySpelsberg Login

Similar products

new

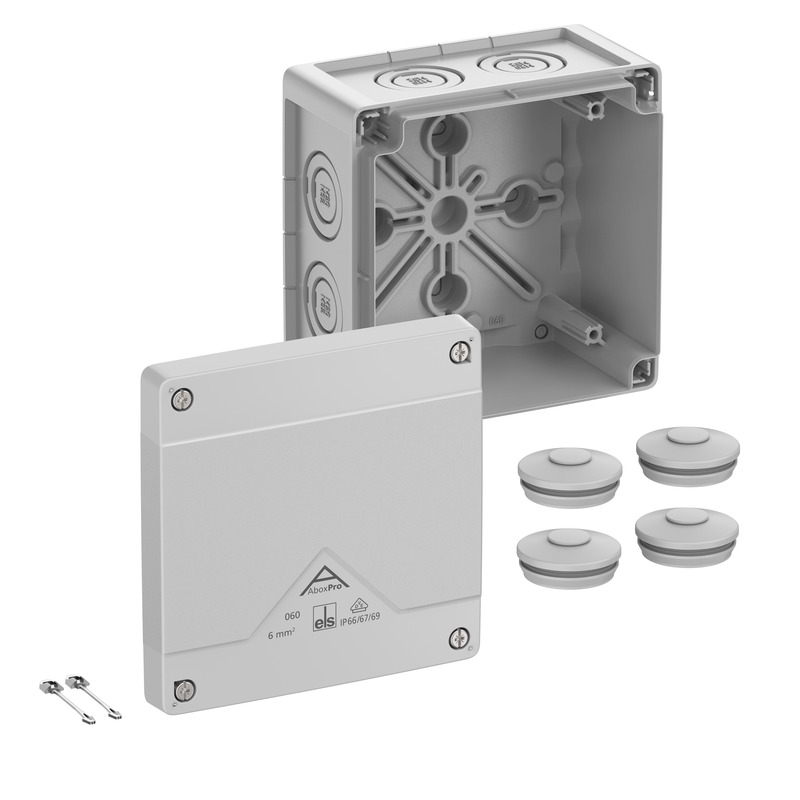

Junction box - Abox Pro 060-L

Junction box Abox Pro 060-L

Dimensions : 127 x 127 x 75 mm
Productnumber: 40640001

grey, U_i=1000 V AC, without terminals

Junction box, protection class IP66/IP67/IP69, nominal cross-section 6 mm², certified by VDE (DIN EN...

Watchlist

new

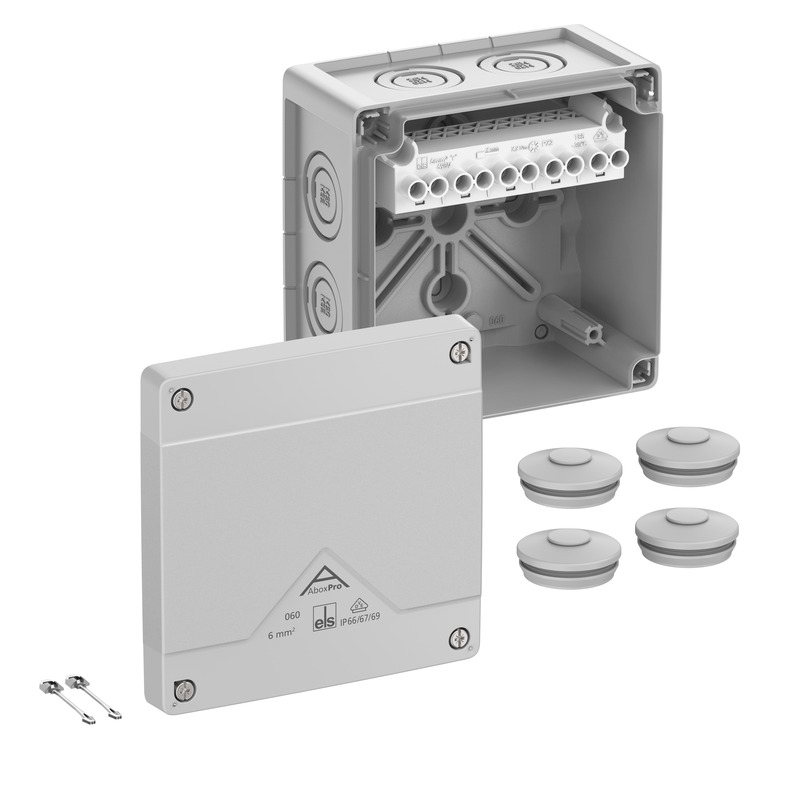

Junction box - Abox Pro 060-6²
