Junction box

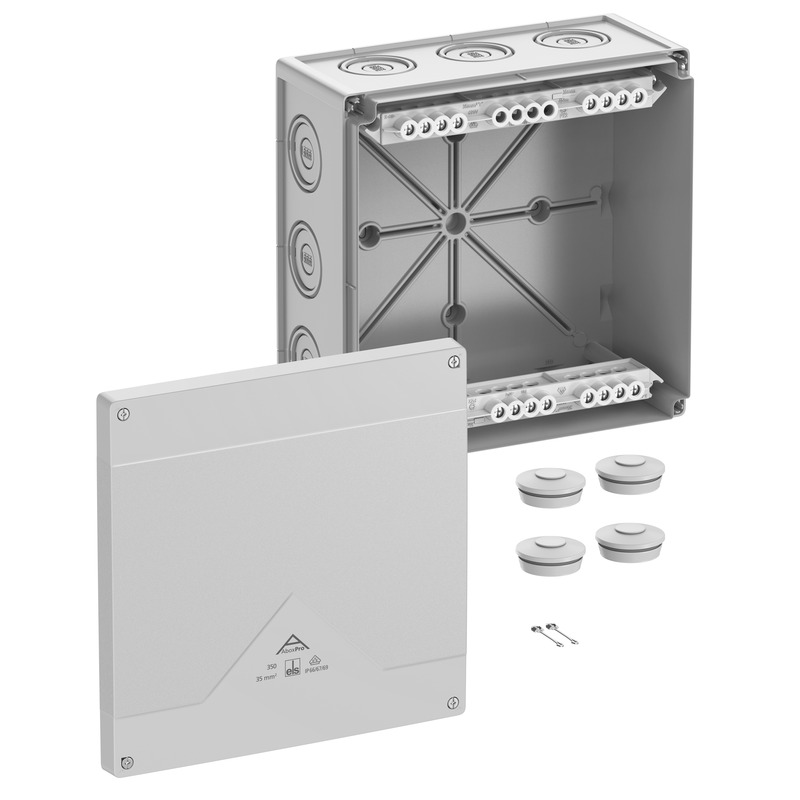

Abox Pro 350-35²

Productnumber: 43542001 | Dimensions: 252 x 252 x 120 mm

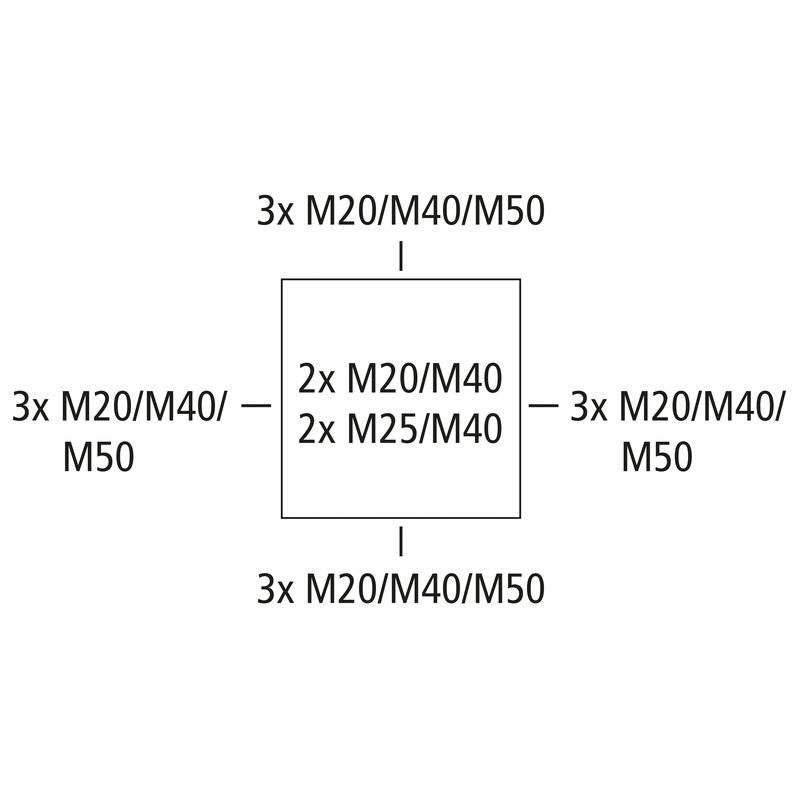

Junction box, protection class IP66/IP67/IP69, nominal cross-section 35 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M20/M25/M40/M50, (4 rear, 12 side), internal fixing points, for installation in industrial environments and unprotected outdoor areas

grey, U_i=690 V AC, I_n=125 A, with raised screw terminal block, 5-pole - 35 mm², clampable cross-sections per pole: 12 x 10 mm², 8 x 16 mm², 4 x 25 mm². 4 x 35 mm² rigid/flexible with wire-end ferrule

Accessories supplied:
4 double membrane seals IP66 M40 sealing range 17 - 28 mm, cover retainer

electrical characteristics

Rated insulation voltage AC	690 V
Rated insulation voltage DC	690 V
Min. conductor cross section	10 mm²
Max. conductor cross section	35 mm²
Protection class	II
Type of protection	IP66/IP67/IP69
Rated current	125 A
Terminal type	Screw terminal
Number of poles	5

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	252 mm
Length	252 mm
Height	120 mm
Inner length	236 mm
Inner width	236 mm
Inner height	99 mm
Weight	1.4651 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V0
Glow-wire flammability according to EN 60695-2-11	960 °C

mechanical properties

Impact strength	IK09
Sealable	yes
Cover screw torque	1.5 Nm
Type of fastening	Wall/ceiling mounting
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	80 °C
24h ambient temperature	60 °C
Installation location	unprotected outdoor areas

Sales Information

EAN	4013902663095
Packing Unit Code	C62
ETIM Class	EC002600
Custom tariff number	85369095

Material

Base unit material	Polycarbonate, glass-fibre reinforced
Cover material	Polycarbonate
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel V2A

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	DLG (Ammonia resistance)
Test mark	DNV (Class: Ships and Offshore Installations)

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction DE/EN	pdf (5 MB)
Assembly instruction FR/ES	pdf (5 MB)

Dimensioned drawing

Dimensional drawing	pdf (5 MB)
Dimensional drawing	dwg (6 MB)
Dimensional drawing	dxf (29 MB)

Certificate

VDE Certificate DE/EN	pdf (496 KB)
DNV Certificate EN	pdf (198 KB)
CE Declaration DE/EN/FR	pdf (139 KB)
UKCA Declaration EN	pdf (166 KB)
DLG Approval DE	pdf (1 MB)
CE Declaration DE/EN/PL	pdf (141 KB)

Accessories

Cable gland - KVR M20-MGM

Cable gland KVR M20-MGM

Dimensions : 26,5 x 26,5 x 36 mm
Productnumber: 22742001

Sealing range 6 - 12 mm, Thread length 9 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...

Watchlist

Cable gland - KVR M20-GDB/MGM

Cable gland KVR M20-GDB/MGM

Dimensions : 30 x 30 x 37 mm
Productnumber: 22742101

Sealing range 7 - 14 mm, Thread length 9 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...

Watchlist

Cable gland - KVR M40-MGM

Cable gland KVR M40-MGM

Dimensions : 50 x 50 x 54 mm
Productnumber: 22744001

Sealing range 16 - 28 mm, Thread length 11 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...

Watchlist

Cable gland - KVR M50-MGM

Cable gland KVR M50-MGM

Dimensions : 60 x 60 x 63 mm
Productnumber: 22745001

Sealing range 21 - 34,5 mm, Thread length 13 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...

Watchlist

Double-membrane seals - DMS M20

Double-membrane seals DMS M20

Dimensions : 25,2 x 25,2 x 13,4 mm
Productnumber: 26042001

Sealing range 7 - 13 mm

Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...

Watchlist

Double-membrane seals - DMS M40

Double-membrane seals DMS M40

Dimensions : 46,5 x 46,5 x 18,6 mm
Productnumber: 26044001

Sealing range 17 - 28 mm

Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...

Watchlist

new

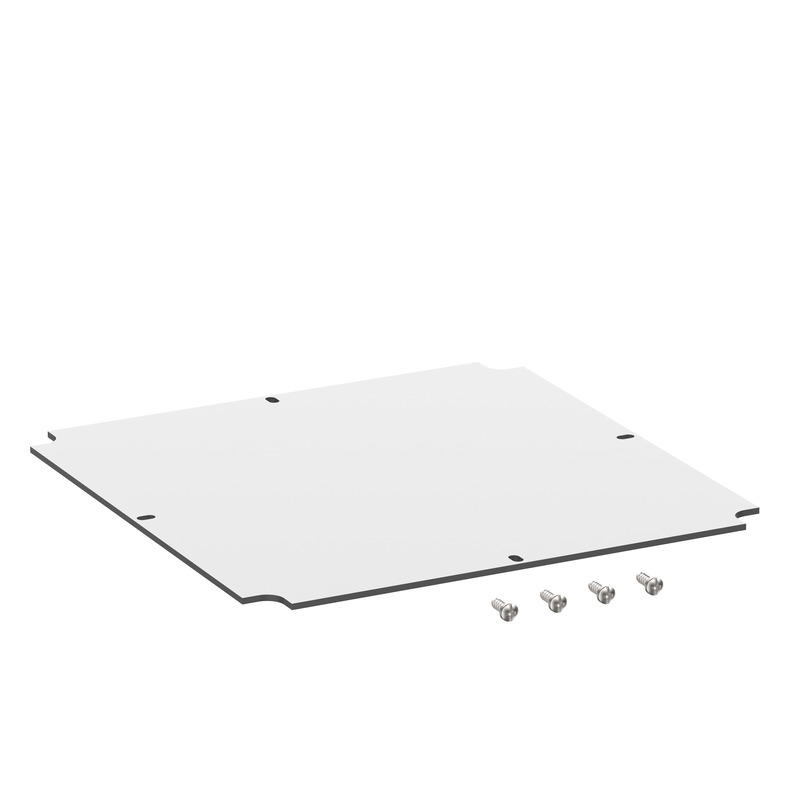

Mounting plate - Abox MPI 350

Mounting plate Abox MPI 350

Dimensions : 217 x 217 x 2,5 mm
Productnumber: 89513501

for Abox / Abox Pro 350

Mounting plate in melamine lined insulating material, 2.5 mm thickness, grey incl. fixing screws....

Watchlist

new

Standard rail - Abox 250/350 NS35

Standard rail Abox 250/350 NS35

Dimensions : 35 x 202 x 7,5 mm
Productnumber: 89533501

for Abox / Abox Pro 350

Standard rail in accordance with DIN EN 60715, 35 x 7.5 mm, incl. fixing screws. For mounting in...

Watchlist

new

Terminal holder - Abox 100 KH 2006 6²

Terminal holder Abox 100 KH 2006 6²

Dimensions : 69 x 124 x 60 mm
Productnumber: 89600601

terminal holder with standard rail NS35 for mounting of terminal...

Terminal holder incl. fixing material for mounting of Wago installation and terminal boxes in Abox...

Watchlist

new

Terminal block - Abox 250/350 KLS-25²/35²

Terminal block Abox 250/350 KLS-25²/35²

Dimensions : 21 x 205 x 48 mm
Productnumber: 89643501

raised screw terminal block for Abox/Abox Pro 250/350, 5-pole - 35...

Connecting terminal in accordance with DIN EN 60998 (VDE 0613), U_i=690V. For assembly in junction...

Watchlist

new

Mast/pipe fixing set - MABF 215-1

Mast/pipe fixing set MABF 215-1

Dimensions : 47 x 215 x 15 mm
Productnumber: 89604001

for junction boxes Abox / Abox Pro from 2024 onwards of the types Abox...

Mast/pipe fixing set in stainless steel V2A with fastening screws and quick release clamp for...

Watchlist

CAD-Data

CAD-Data	Download 3D-CAD-Data

Tender text

Log in to mySpelsberg to download tender texts. mySpelsberg Login

Similar products

new

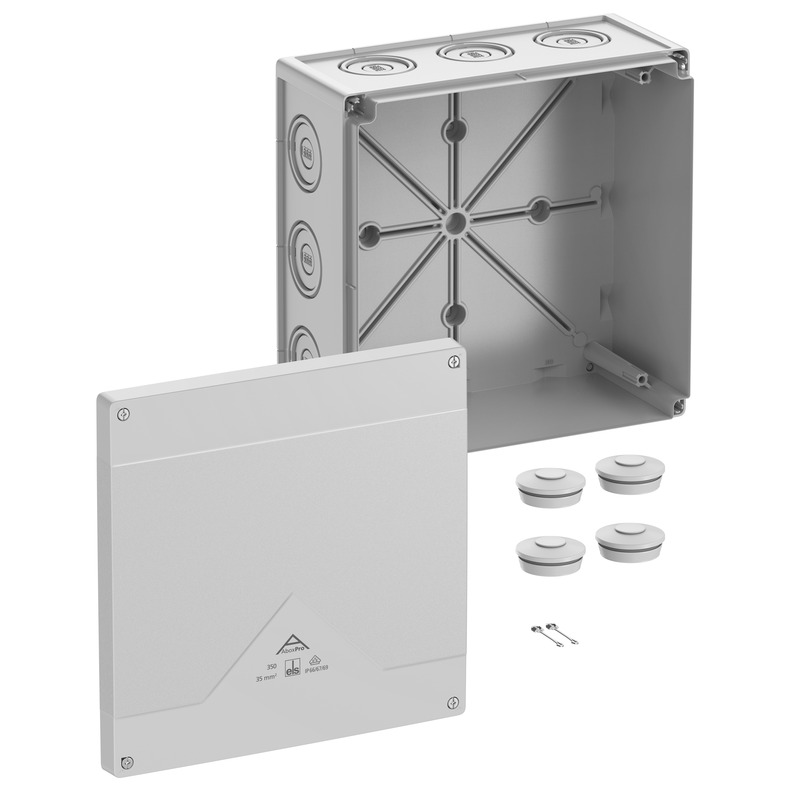

Junction box - Abox Pro 350-L

Junction box Abox Pro 350-L

Dimensions : 252 x 252 x 120 mm
Productnumber: 43540001

grey, U_i=1000 V AC, without terminals

Junction box, protection class IP66/IP67/IP69, nominal cross-section 35 mm², certified by VDE (DIN...

Watchlist

new

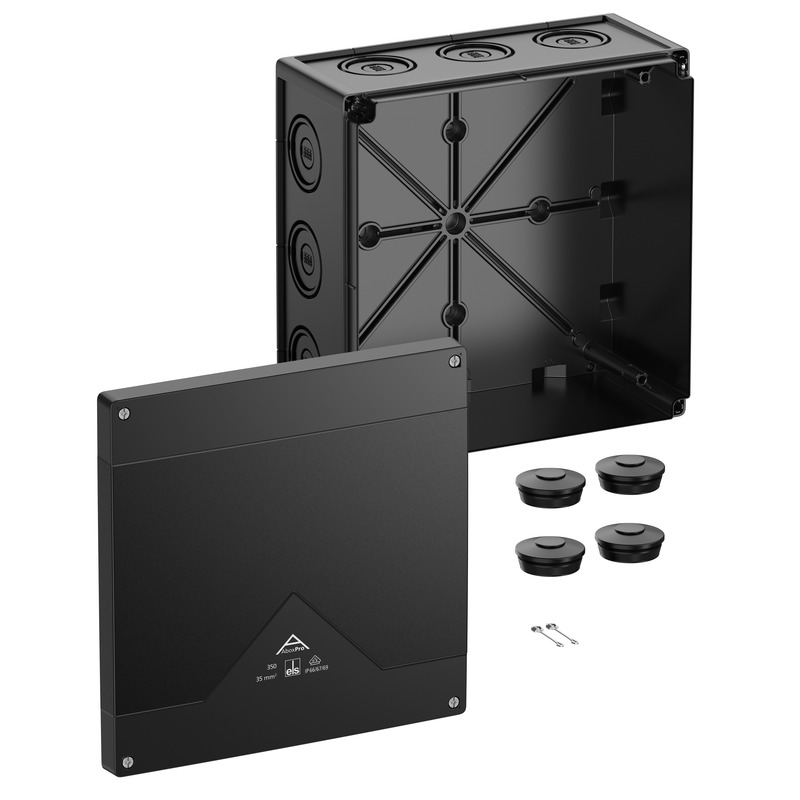

Junction box - Abox Pro 350-L/sw

Junction box Abox Pro 350-L/sw

Dimensions : 252 x 252 x 120 mm
Productnumber: 43500001

black, U_i=1000 V AC, without terminals

Junction box, protection class IP66/IP67/IP69, nominal cross-section 35 mm², certified by VDE (DIN...

Watchlist

new

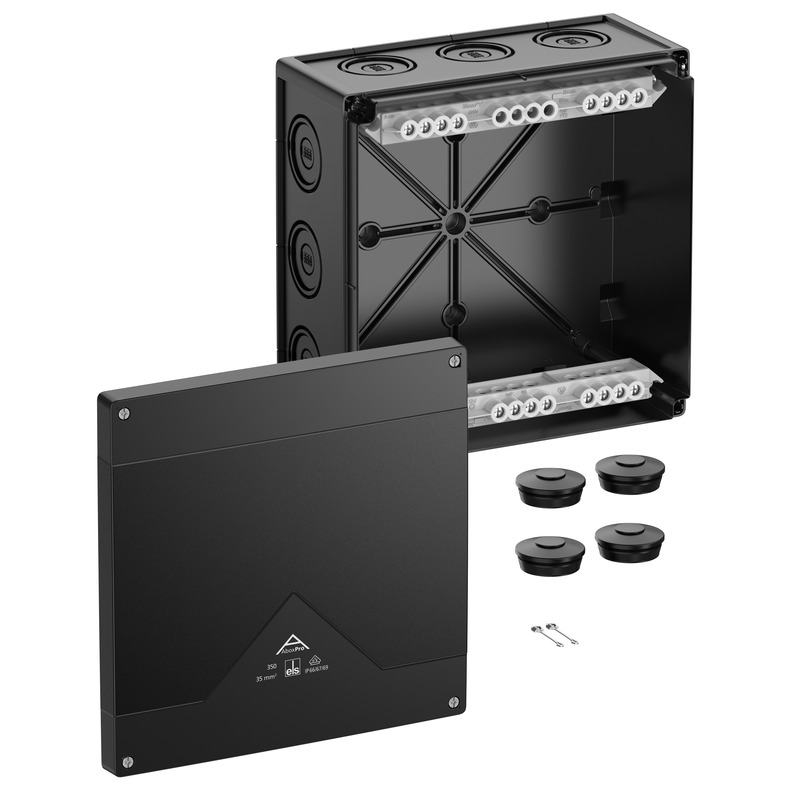

Junction box - Abox Pro 350-35²/sw
