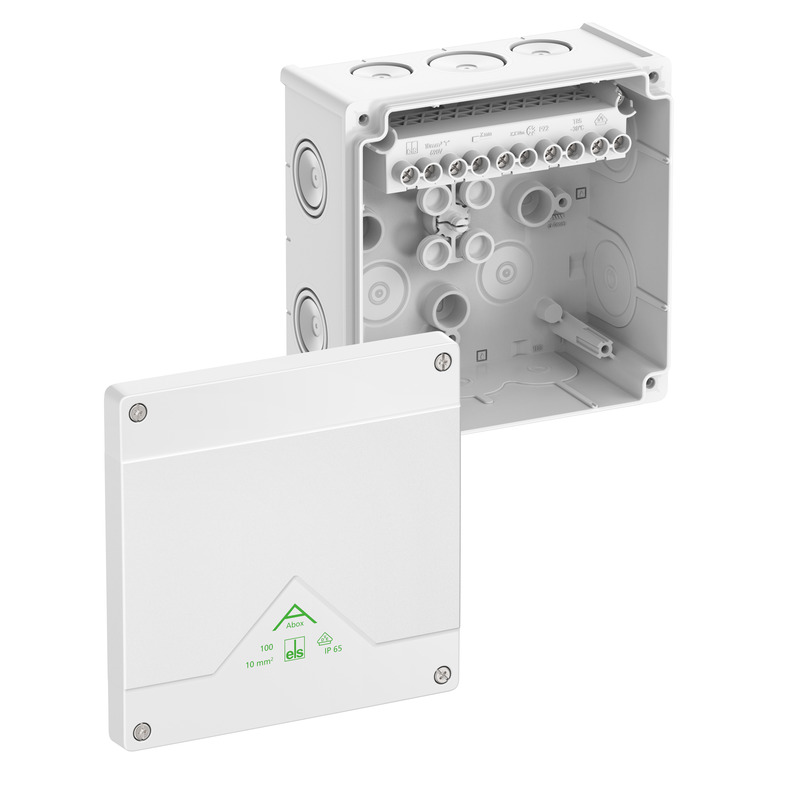

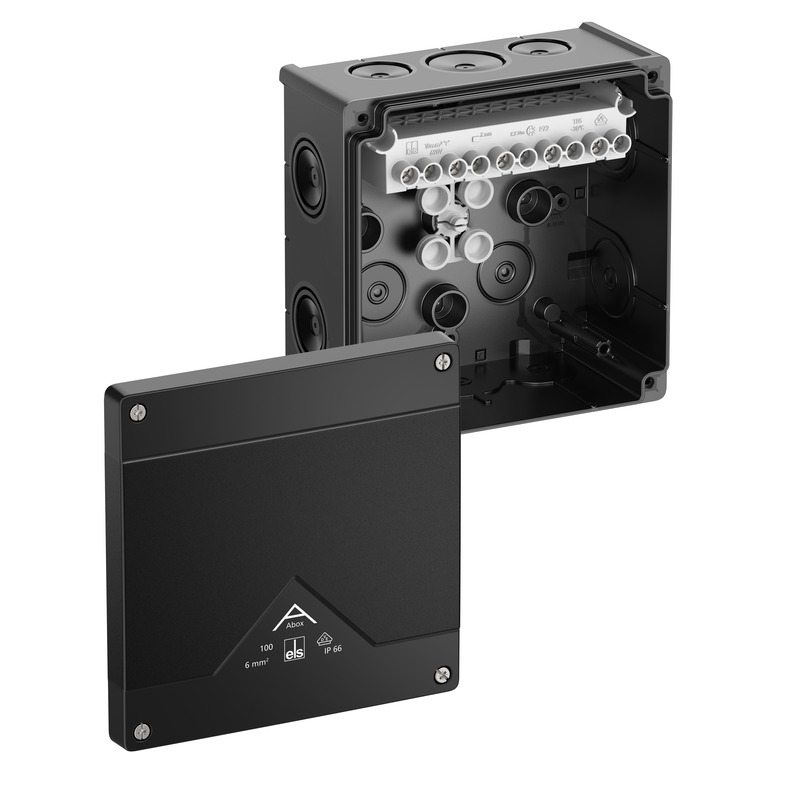

Abox 100-10²/w Abox 100-10²/w

Junction box

Abox 100-10²/w

Productnumber: 81012001 | Dimensions: 152 x 152 x 80 mm

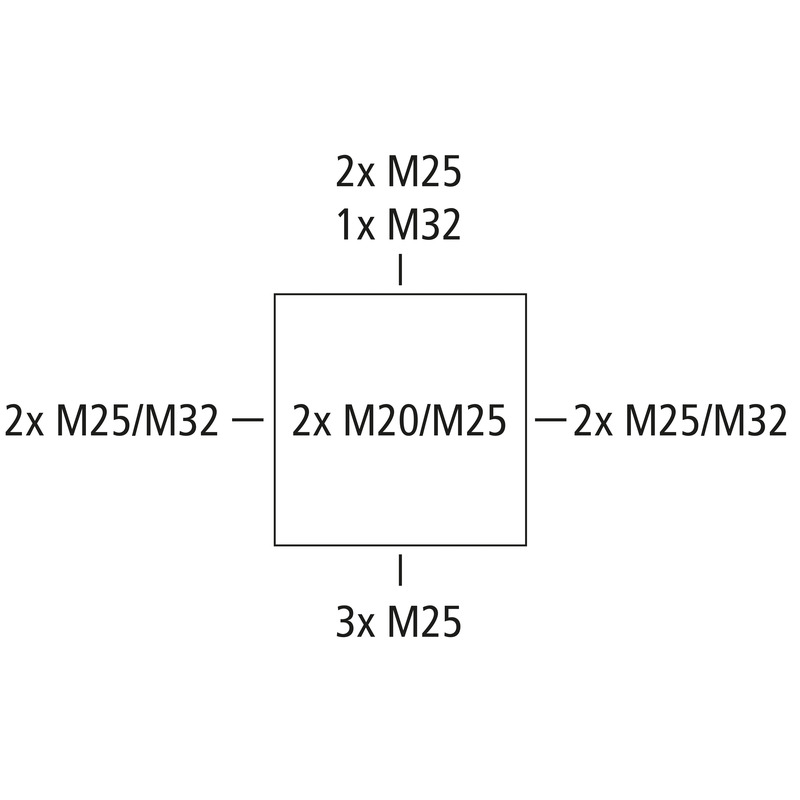

Junction box, protection class IP66, nominal cross-section 10 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), self-sealing, soft insertion membranes, M20/M25/M32, sealing range 8 - 28 mm, (2 rear, 10 side), internal fixing points, for standard indoor and protected outdoor installations

white, Ui=690 V AC, In=57 A, with raised screw terminal block, 5-pole- 10 mm², clampable cross-sections per pole: 4 x 2.5 mm², 4 x 4 mm², 4 x 6 mm², 4 x 10 mm² rigid Cu/flexible with wire-end ferrule

electrical characteristics

Rated insulation voltage AC 690 V
Rated insulation voltage DC 690 V
Min. conductor cross section 4 mm²
Max. conductor cross section 10 mm²
Protection class II
Type of protection IP66
Rated current 57 A
Terminal type Screw terminal
Number of poles 5

Colours

Base unit colour white
Cover colour white

Dimensions

Width 152 mm
Length 152 mm
Height 80 mm
Inner length 139 mm
Inner width 140 mm
Inner height 64 mm
Weight 0.414 kg

Material characteristics

UV-resistant yes
Halogen free yes
Flammability class according with UL94 HB
Glow-wire flammability according to EN 60695-2-11 750 °C

mechanical properties

for sealing range min 8 mm
for sealing range max 28 mm
Impact strength IK07
Sealable yes
Cover screw torque 1.2 Nm
Type of fastening Wall/ceiling mounting
Fastening internal fixing points

Ambient conditions

max. relative humidity 25°C 95 %
max. relative humidity 40°C 50 %
Min. ambient temperature -25 °C
Max. ambient temperature 55 °C
24h ambient temperature 35 °C
Installation location protected outdoor areas

Sales Information

EAN 4013902660575
Packing Unit Code C62
ETIM Class EC002600
Custom tariff number 85369095

Material

Base unit material Polypropylene
Cover material Polypropylene
Entry material Thermoplastic elastomer
Sealing material Thermoplastic elastomer
Cover screw material Stainless steel V2A

Certificates

Test mark VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark DLG (Ammonia resistance)

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction FR/ES pdf (5 MB)
Assembly instruction DE/EN pdf (5 MB)

Dimensioned drawing

Dimensional drawing pdf (6 MB)
Dimensional drawing dwg (8 MB)
Dimensional drawing dxf (36 MB)

Certificate

DLG Approval DE pdf (1 MB)
CE Declaration DE/EN/FR pdf (139 KB)
CE Declaration DE/EN/PL pdf (141 KB)
UKCA Declaration EN pdf (167 KB)
VDE Certificate DE/EN pdf (397 KB)

Accessories

Double-membrane seals - DMS M20/w

Double-membrane seals DMS M20/w

  • Dimensions : 25,2 x 25,2 x 13,4 mm
  • Productnumber: 26012001

Sealing range 7 - 13 mm



Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...



Watchlist
Details
Double-membrane seals - DMS M25/w

Double-membrane seals DMS M25/w

  • Dimensions : 29,7 x 29,7 x 13,6 mm
  • Productnumber: 26012501

Sealing range 9 - 17 mm



Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...



Watchlist
Details
new Double-membrane seals - DMS M32/w

Double-membrane seals DMS M32/w

  • Dimensions : 36,7 x 36,7 x 18 mm
  • Productnumber: 26013201

Sealing range 13 - 21 mm



Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...



Watchlist
Details
new Sealing kit - Abox PST 025-100

Sealing kit Abox PST 025-100

  • Dimensions : 15 x 15 x 15 mm
  • Productnumber: 89500101

Set with two sealing caps and screws



Set for subsequent sealing of junction boxes, for Abox 025/040/060/100 from 2024



Watchlist
Details
new Mounting plate - Abox MPI 100

Mounting plate Abox MPI 100

  • Dimensions : 120 x 120 x 2,5 mm
  • Productnumber: 89511001

for Abox / Abox Pro 100



Mounting plate in melamine lined insulating material, 2.5 mm thickness, grey incl. fixing screws....



Watchlist
Details
new Standard rail - Abox 100 NS35

Standard rail Abox 100 NS35

  • Dimensions : 35 x 120 x 7,5 mm
  • Productnumber: 89531001

for Abox / Abox Pro 100



Standard rail in accordance with DIN EN 60715, 35 x 7.5 mm, incl. fixing screws. For mounting in...



Watchlist
Details
new Terminal holder - Abox 100 KH 221 6²

Terminal holder Abox 100 KH 221 6²

  • Dimensions : 26 x 114 x 32 mm
  • Productnumber: 89600501

for position-fixed and elevated mounting of up to 6 terminals Wago...



Terminal holder incl. fixing material for mounting of Wago installation and terminal boxes in Abox...



Watchlist
Details
new Terminal holder - Abox 100 KH 2006 6²

Terminal holder Abox 100 KH 2006 6²

  • Dimensions : 69 x 124 x 60 mm
  • Productnumber: 89600601

terminal holder with standard rail NS35 for mounting of terminal...



Terminal holder incl. fixing material for mounting of Wago installation and terminal boxes in Abox...



Watchlist
Details
new Terminal block - Abox 100 KLS-10²

Terminal block Abox 100 KLS-10²

  • Dimensions : 25 x 124 x 39 mm
  • Productnumber: 89641001

raised screw terminal block for Abox/Abox Pro 100, 5-pole - 10 mm², In...



Connecting terminal in accordance with DIN EN 60998 (VDE 0613), Ui=690V. For assembly in junction...



Watchlist
Details
new Mast/pipe fixing set - MABF 100-1

Mast/pipe fixing set MABF 100-1

  • Dimensions : 38 x 100 x 15 mm
  • Productnumber: 89602001

for junction boxes Abox / Abox Pro from 2024 onwards of the types Abox...



Mast/pipe fixing set in stainless steel V2A with fastening screws and quick release clamp for...



Watchlist
Details
new Fastening parts kit - KTB 1

Fastening parts kit KTB 1

  • Dimensions : 17 x 30 x 14 mm
  • Productnumber: 89600901



Fixing element for mounting of enclosures on cable tray systems with elongated hole width of 7 mm...



Watchlist
Details

CAD-Data

CAD-Data Download 3D-CAD-Data

Your request

Your information
Companydata
CAD-Format

Tender text

Similar products

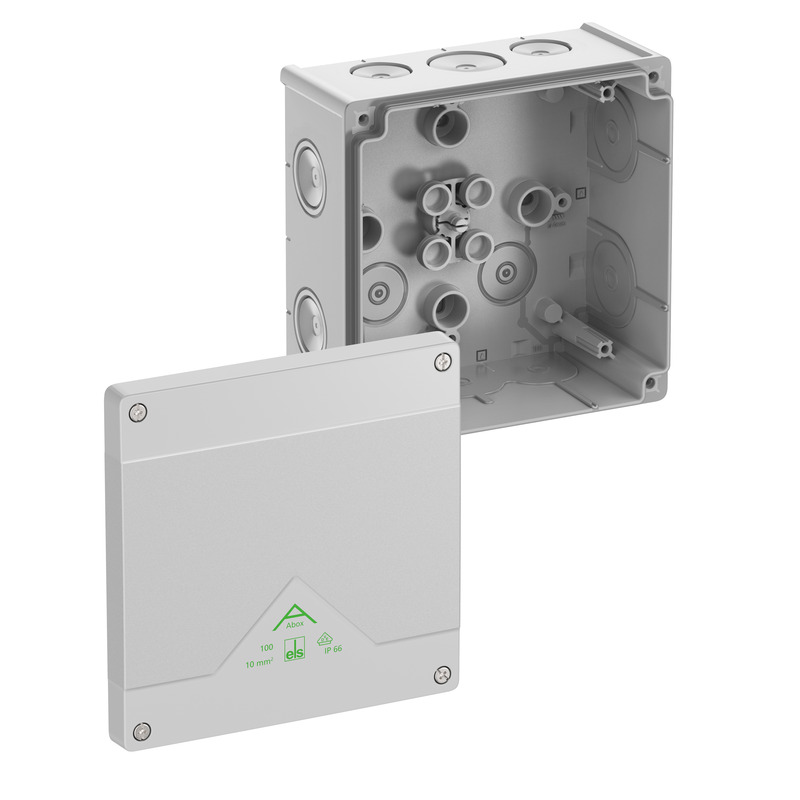

new Junction box - Abox 100-L

Junction box Abox 100-L

  • Dimensions : 152 x 152 x 80 mm
  • Productnumber: 81040001

grey, Ui=1000 V AC, without terminals



Junction box, protection class IP66, nominal cross-section 10 mm², certified by VDE (DIN EN...



Watchlist
Details

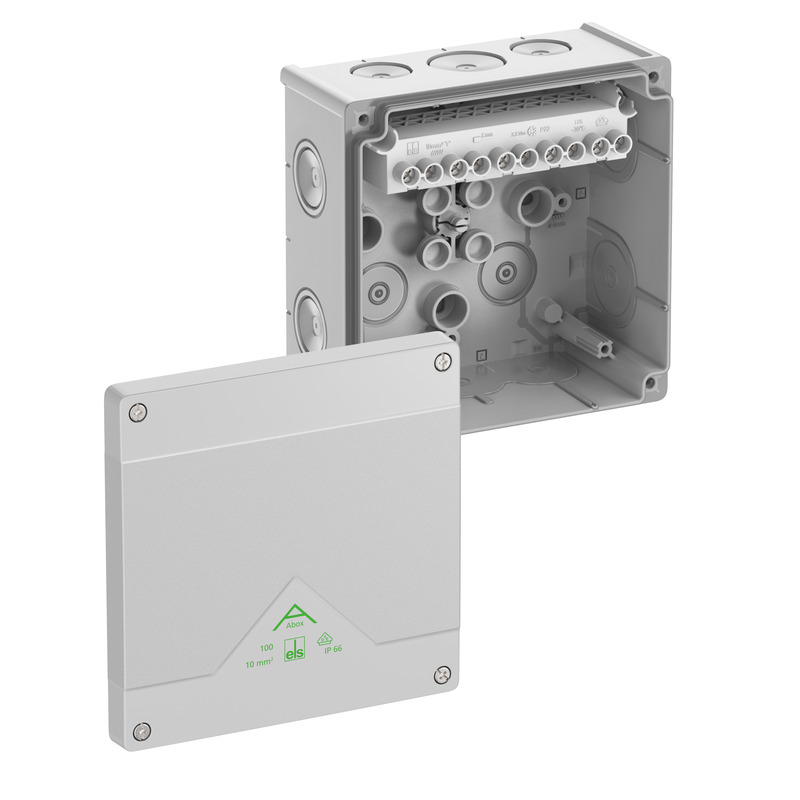

new Junction box - Abox 100-10²

Junction box Abox 100-10²

  • Dimensions : 152 x 152 x 80 mm
  • Productnumber: 81042001

grey, Ui=690 V AC, In=57 A, with raised screw terminal block, 5-pole-...



Junction box, protection class IP66, nominal cross-section 10 mm², certified by VDE (DIN EN...



Watchlist
Details

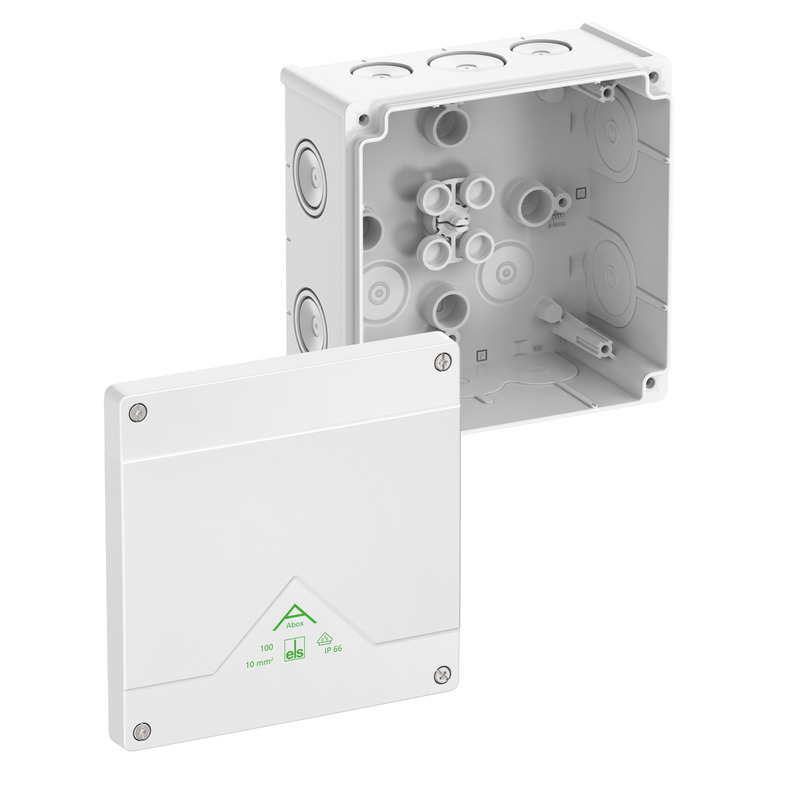

new Junction box - Abox 100-L/w
