Junction box
Productnumber: 81640001 | Dimensions: 182 x 182 x 90 mm

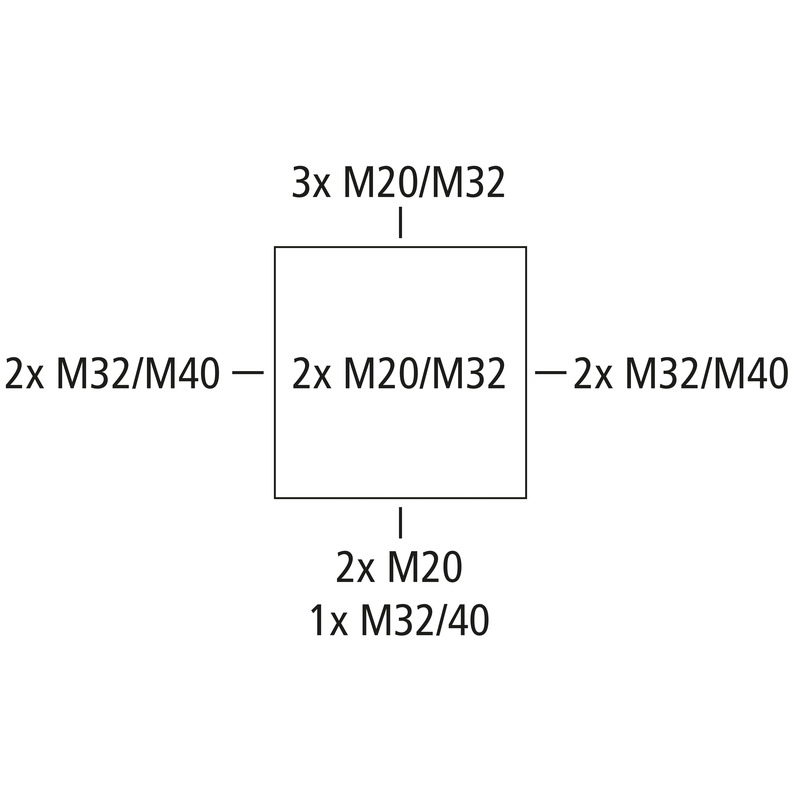

Junction box, protection class IP55/IP66, nominal cross-section 16 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), knockouts, M20/M32/M40, (2 rear, 10 side), internal fixing points, for standard indoor and protected outdoor installations
grey, Ui=1000 V AC, without terminals
Accessories supplied:
4 attachment bushes IP55 M40 sealing range 17 - 30 mm, 1 sealing plug IP55 M40, cover retainer
| Rated insulation voltage AC | 1000 V |
|---|---|
| Rated insulation voltage DC | 1000 V |
| Max. conductor cross section | 16 mm² |
| Protection class | II |
| Type of protection | IP55/IP66 |
| Rated current | 101 A |
| Terminal type | none |
| Base unit colour | grey |
|---|---|
| Cover colour | grey |
| Width | 182 mm |
|---|---|
| Length | 182 mm |
| Height | 90 mm |
| Inner length | 167 mm |
| Inner width | 167 mm |
| Inner height | 69 mm |
| Weight | 0.6114 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | HB |
| Glow-wire flammability according to EN 60695-2-11 | 750 °C |
| max. amount of terminals at 2,5² | 15 |
|---|---|
| max. amount of terminals at 4² | 12 |
| max. amount of terminals at 6² | 8 |
| max. amount of terminals at 10² | 6 |
| max. amount of terminals at 16² | 5 |
| max. amount of wires at 2,5² | 45 |
|---|---|
| max. amount of wires at 4² | 36 |
| max. amount of wires at 10² | 24 |
| max. amount of wires at 6² | 20 |
| max. amount of wires at 16² | 15 |
| Impact strength | IK07 |
|---|---|
| Sealable | yes |
| Cover screw torque | 1.5 Nm |
| Type of fastening | Wall/ceiling mounting |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 55 °C |
| 24h ambient temperature | 35 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902660391 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC002600 |
| Custom tariff number | 85389099 |
| Base unit material | Polycarbonate |
|---|---|
| Cover material | Polycarbonate |
| Sealing material | Thermoplastic elastomer |
| Cover screw material | Stainless steel V2A |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|---|
| Test mark | DLG (Ammonia resistance) |
| CAD-Data | Download 3D-CAD-Data |
|---|
