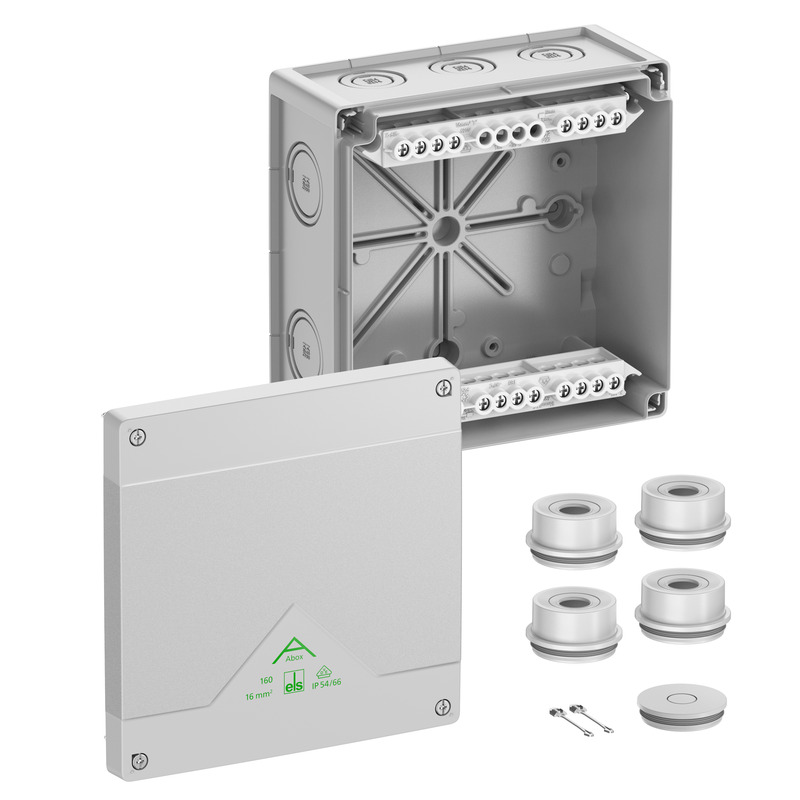

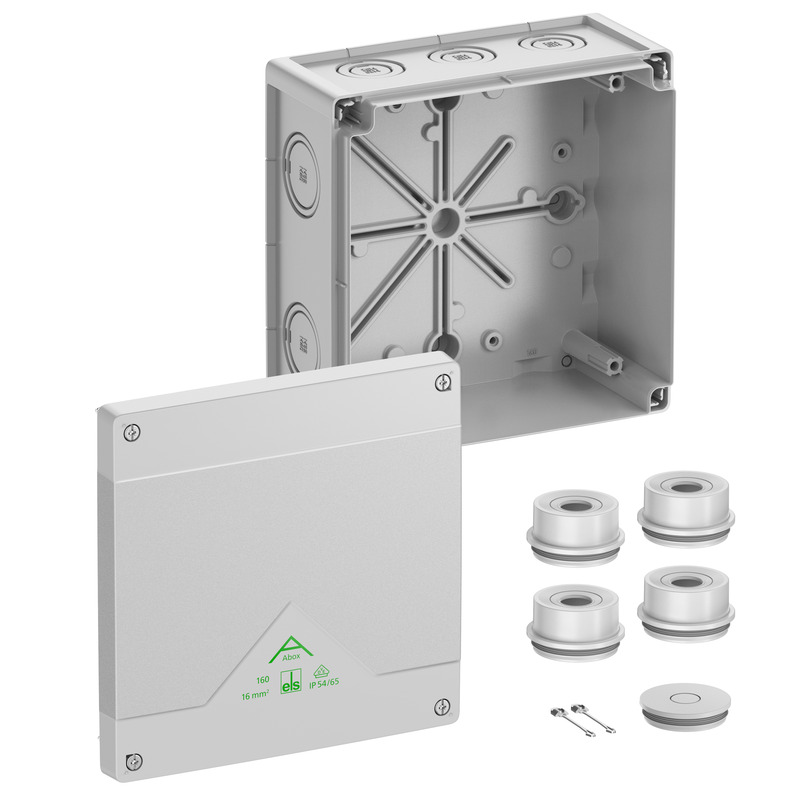

Junction box

Abox 160-16²

Productnumber: 81642001 | Dimensions: 182 x 182 x 90 mm

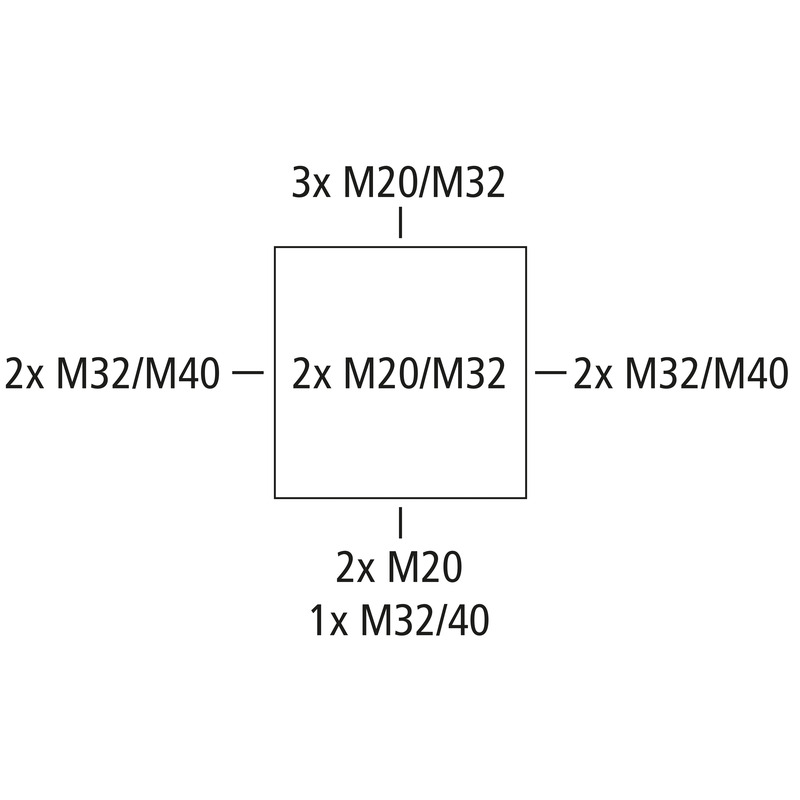

Junction box, protection class IP55/IP66, nominal cross-section 16 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), knockouts, M20/M32/M40, (2 rear, 10 side), internal fixing points, for standard indoor and protected outdoor installations

grey, U_i=690 V AC, I_n=76 A, with raised screw terminal block, 5-pole- 16 mm², clampable cross-sections per pole: 12 x 4 mm², 8 x 6 mm², 4 x 10 mm², 4 x 16 mm² rigid Cu/flexible with wire-end ferrule

Accessories supplied:
4 attachment bushes IP55 M40 sealing range 17 - 30 mm, 1 sealing plug IP55 M40, cover retainer

electrical characteristics

Rated insulation voltage AC	690 V
Rated insulation voltage DC	690 V
Min. conductor cross section	4 mm²
Max. conductor cross section	16 mm²
Protection class	II
Type of protection	IP55/IP66
Rated current	76 A
Terminal type	Screw terminal
Number of poles	5

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	182 mm
Length	182 mm
Height	90 mm
Inner length	167 mm
Inner width	167 mm
Inner height	69 mm
Weight	0.829 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability according to EN 60695-2-11	750 °C

mechanical properties

Impact strength	IK07
Sealable	yes
Cover screw torque	1.5 Nm
Type of fastening	Wall/ceiling mounting
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	55 °C
24h ambient temperature	35 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902660360
Packing Unit Code	C62
ETIM Class	EC002600
Custom tariff number	85369095

Material

Base unit material	Polycarbonate
Cover material	Polycarbonate
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel V2A

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	DLG (Ammonia resistance)

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction DE/EN	pdf (5 MB)
Assembly instruction FR/ES	pdf (5 MB)

Dimensioned drawing

Dimensional drawing	dwg (5 MB)
Dimensional drawing	dxf (23 MB)
Dimensional drawing	pdf (4 MB)

Certificate

UKCA Declaration EN	pdf (167 KB)
DLG Approval DE	pdf (1 MB)
CE Declaration DE/EN/FR	pdf (139 KB)
CE Declaration DE/EN/PL	pdf (141 KB)
VDE Certificate DE/EN	pdf (397 KB)

Accessories

Cable gland KVR M20-MGM

Dimensions : 26,5 x 26,5 x 36 mm
Productnumber: 22742001

Sealing range 6 - 12 mm, Thread length 9 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...
