Junction box
Productnumber: 31560701 | Dimensions: 78 x 78 x 27 mm

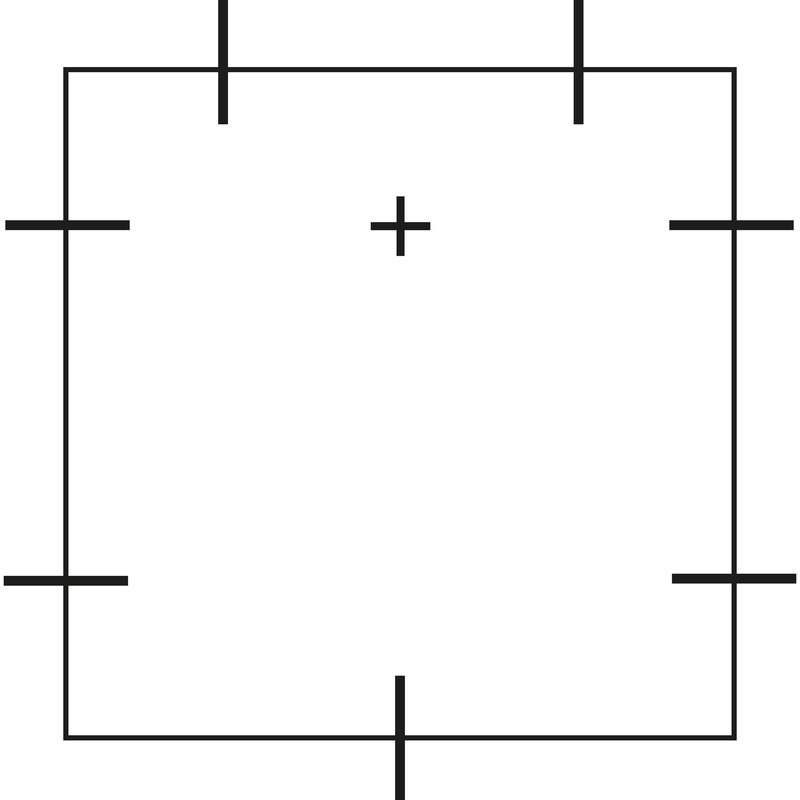

Junction box, protection class IP30, nominal cross-section 2.5 mm², Ui=400 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), knockouts, (1 rear, 7 side), internal fixing points, for standard indoor installations
grey, with white upper part, without terminals
| Rated insulation voltage AC | 400 V |
|---|---|
| Max. conductor cross section | 2,5 mm² |
| Protection class | II |
| Type of protection | IP30 |
| UL Type Rating | not specified |
| Base unit colour | grey |
|---|---|
| Cover colour | white |
| Width | 78 mm |
|---|---|
| Length | 78 mm |
| Height | 27 mm |
| Weight | 0.03 kg |
| UV-resistant | no |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | HB |
| Glow-wire flammability according to EN 60695-2-11 | 650 °C |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK07 |
| Sealable | no |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902020072 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC002600 |
| Custom tariff number | 85389099 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
| Cover screw material | Polycarbonate |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
| CAD-Data | Download 3D-CAD-Data |
|---|
