Junction box

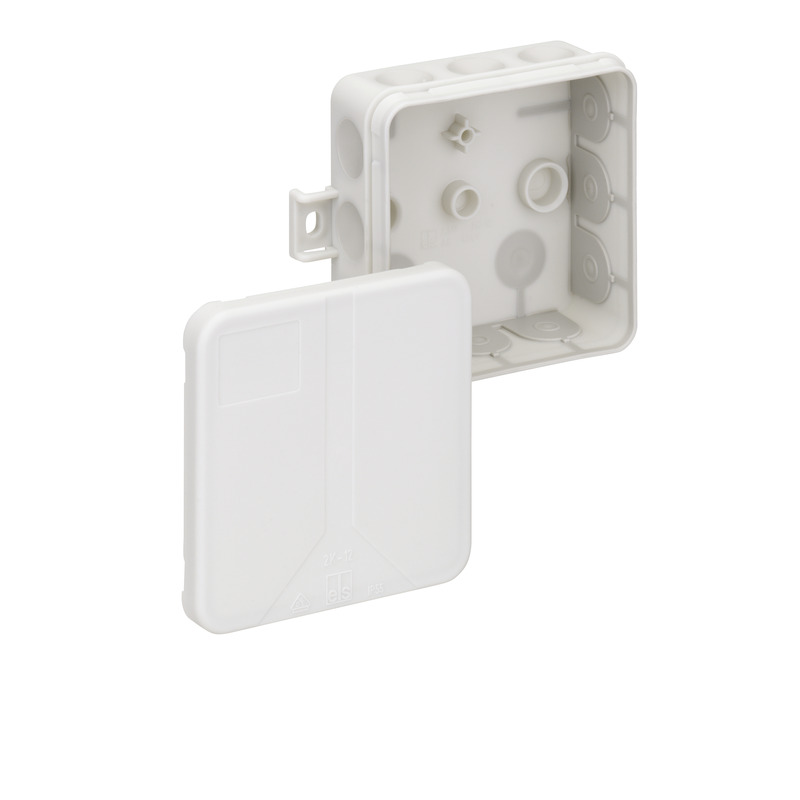

2K-12 AB-L

Productnumber: 34591201 | Dimensions: 85 x 85 x 37 mm

Junction box, protection class IP55, nominal cross-section 2.5 mm², Ui=400 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), self-sealing, soft insertion membranes, sealing range 2 - 14 mm, (2 rear, 12 side), external fixing lugs, for standard indoor installations

grey, without terminals

electrical characteristics

Rated insulation voltage AC 400 V
Max. conductor cross section 2,5 mm²
Protection class II
Type of protection IP55
UL Type Rating not specified

Colours

Base unit colour grey
Cover colour grey

Dimensions

Width 85 mm
Length 85 mm
Height 37 mm
Weight 0.046 kg

Material characteristics

UV-resistant no
Halogen free yes
Flammability class according with UL94 HB
Glow-wire flammability according to EN 60695-2-11 650 °C

Max. number of terminals per cross section acc. to DIN VDE 0606-1

max. amount of terminals at 1,5² 6
max. amount of terminals at 2,5² 5

<p>Max. number of wires per cross section acc. to DIN VDE 0606-1</p>

max. amount of wires at 1,5² 20
max. amount of wires at 2,5² 15

mechanical properties

for sealing range min 2 mm
for sealing range max 14 mm
Type of fastening Wall/ceiling mounting
Impact strength IK07
Sealable no
Fastening external fixing lugs

Ambient conditions

max. relative humidity 25°C 95 %
max. relative humidity 40°C 50 %
Min. ambient temperature -25 °C
Max. ambient temperature 40 °C
24h ambient temperature 35 °C
Installation location Indoors

Sales Information

EAN 4013902399468
Packing Unit Code C62
ETIM Class EC002600
Custom tariff number 85389099

Material

Base unit material Polypropylene
Cover material Polypropylene
Entry material Thermoplastic elastomer
Sealing material Thermoplastic elastomer

Certificates

Test mark VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))

Download Data Sheet

Download Data Sheet

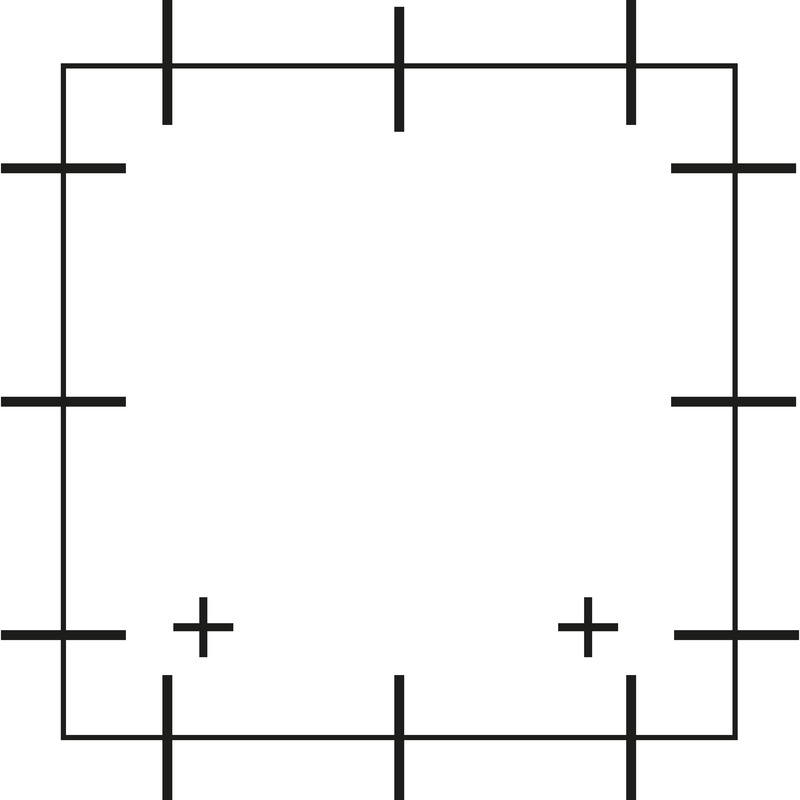

Dimensioned drawing

Dimensional drawing jpg (1 MB)
Dimensional drawing pdf (359 KB)
Dimensional drawing dxf (2 MB)
Dimensional drawing dwg (339 KB)

Certificate

CE Declaration DE/EN/FR pdf (139 KB)
CE Declaration DE/EN/PL pdf (142 KB)
UKCA Declaration EN pdf (168 KB)
VDE Certificate (EN 60670) DE/EN pdf (301 KB)

Accessories

This article is archived!
Terminal strip - HandyGrip VG 20

Terminal strip HandyGrip VG 20

  • Productnumber: 68502001

Sorted according to colour



12-pole screw terminal, rated cross-section 2.5 mm², Ui=400 V



Watchlist
Details
This article is archived!
Terminal strip - HandyGrip VG 21

Terminal strip HandyGrip VG 21

  • Productnumber: 68502101

Closed on one side, sorted according to colour



12-pole screw terminal, rated cross-section 2.5 mm², Ui=400 V



Watchlist
Details
This article is archived!
Terminal strip - HandyGrip VG 21 w

Terminal strip HandyGrip VG 21 w

  • Productnumber: 68512101

Closed on one site, white



12-pole screw terminal, rated cross-section 2.5 mm², Ui=400 V



Watchlist
Details
This article is archived!
Screwless terminal - HandyQuick SQ 32

Screwless terminal HandyQuick SQ 32

  • Productnumber: 68832001

Dark grey, 3 x 1.0-2.5 mm²



Screwless connecting terminal for single-wire conductors acc. to DIN EN 60998 (VDE 0613), Ui=400 V



Watchlist
Details
This article is archived!
Screwless terminal - HandyQuick SQ 52

Screwless terminal HandyQuick SQ 52

  • Productnumber: 68852001

Dark grey, 5 x 1.0-2.5 mm²



Screwless connecting terminal for single-wire conductors acc. to DIN EN 60998 (VDE 0613), Ui=400 V



Watchlist
Details
This article is archived!
Strain relief - ZEL 2K-12

Strain relief ZEL 2K-12

  • Dimensions : 28 x 73 x 16 mm
  • Productnumber: 34400101

Grey



Strain relief, for assembly in 2K-12 / 2K-16-junction boxes, strain relief possible for up to 2...



Watchlist
Details
new Strain relief - ZEL 2K-12/16

Strain relief ZEL 2K-12/16

  • Dimensions : 66 x 36 x 8 mm
  • Productnumber: 34400201

green



Strain relief for mounting in junction boxes of types 2K-12 and 2K-16, tested in accordance with EN...



Watchlist
Details
new Fastening parts kit - KTB 1

Fastening parts kit KTB 1

  • Dimensions : 17 x 30 x 14 mm
  • Productnumber: 89600901



Fixing element for mounting of enclosures on cable tray systems with elongated hole width of 7 mm...



Watchlist
Details

CAD-Data

CAD-Data Download 3D-CAD-Data

Your request

Your information
Companydata
CAD-Format

Tender text

Similar products

This article is archived!

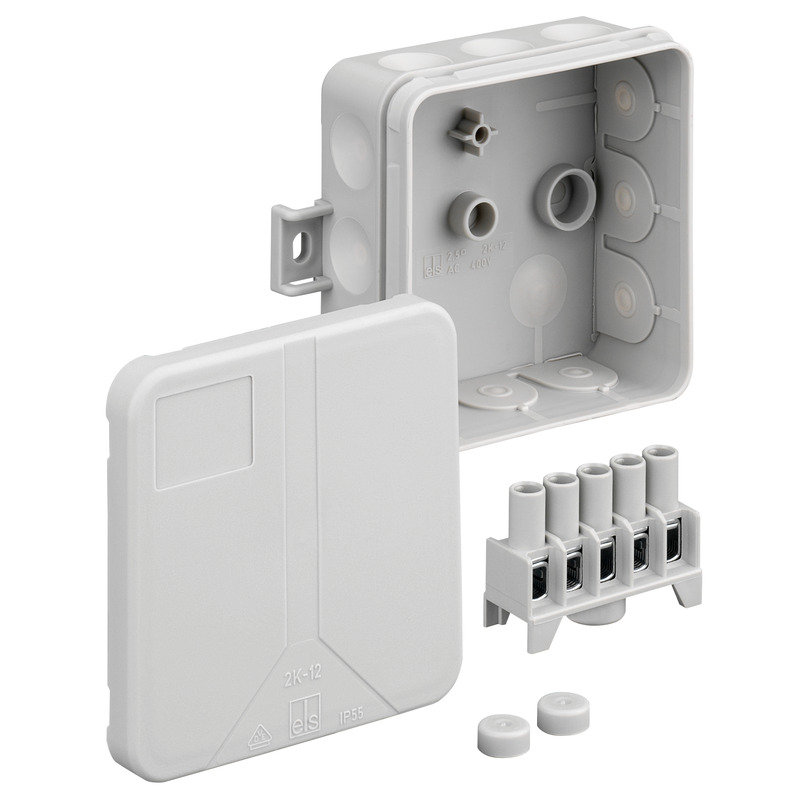

Junction box - 2K-12 AB-2,5²

Junction box 2K-12 AB-2,5²

  • Dimensions : 85 x 85 x 37 mm
  • Productnumber: 34541201

grey, In=24 A, with screw terminal, 5-pole - 2.5 mm² (4 x 1.5² / 4 x...



Junction box, protection class IP55, nominal cross-section 2.5 mm², Ui=400 V AC, certified by VDE...



Watchlist
Details
Junction box - 2K-12 AB-L/w

Junction box 2K-12 AB-L/w

  • Dimensions : 85 x 85 x 37 mm
  • Productnumber: 34561201

white, without terminals



Junction box, protection class IP55, nominal cross-section 2.5 mm², Ui=400 V AC, certified by VDE...



Watchlist
Details
This article is archived!

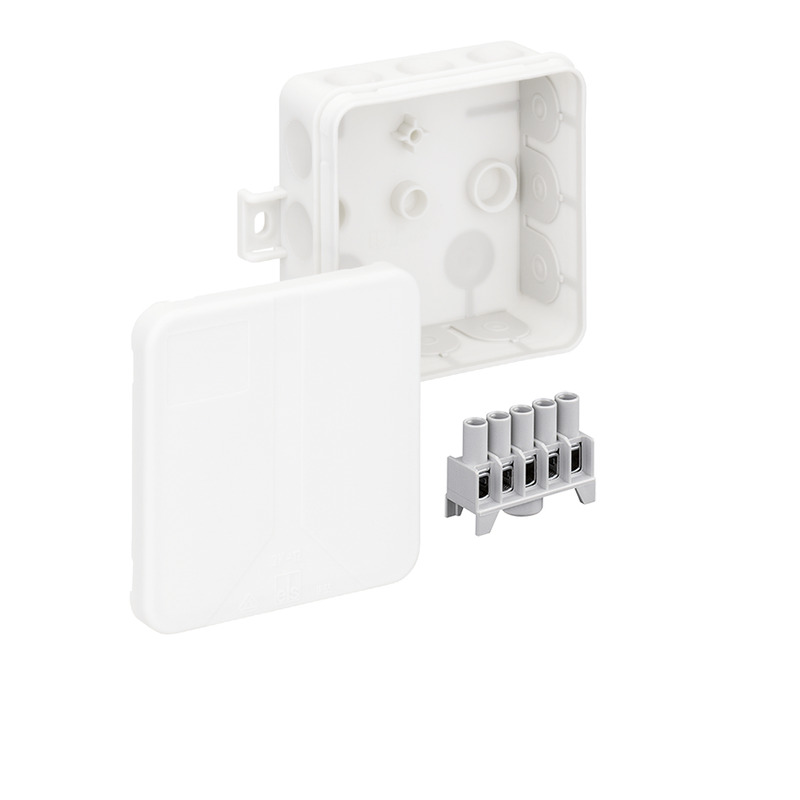

Junction box - 2K-12 AB-2,5²/w

Junction box 2K-12 AB-2,5²/w

  • Dimensions : 85 x 85 x 37 mm
  • Productnumber: 34511201

white, In=24 A, with screw terminal, 5-pole - 2.5 mm² (4 x 1.5² / 4 x...



Junction box, protection class IP55, nominal cross-section 2.5 mm², Ui=400 V AC, certified by VDE...



Watchlist
Details

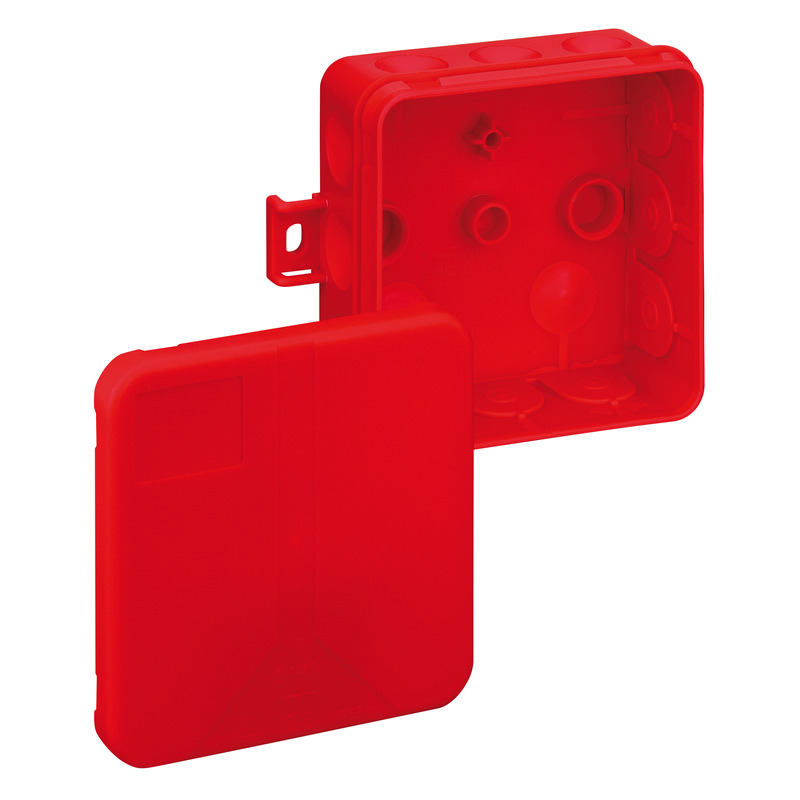

Junction box - 2K-12 AB SB-L
