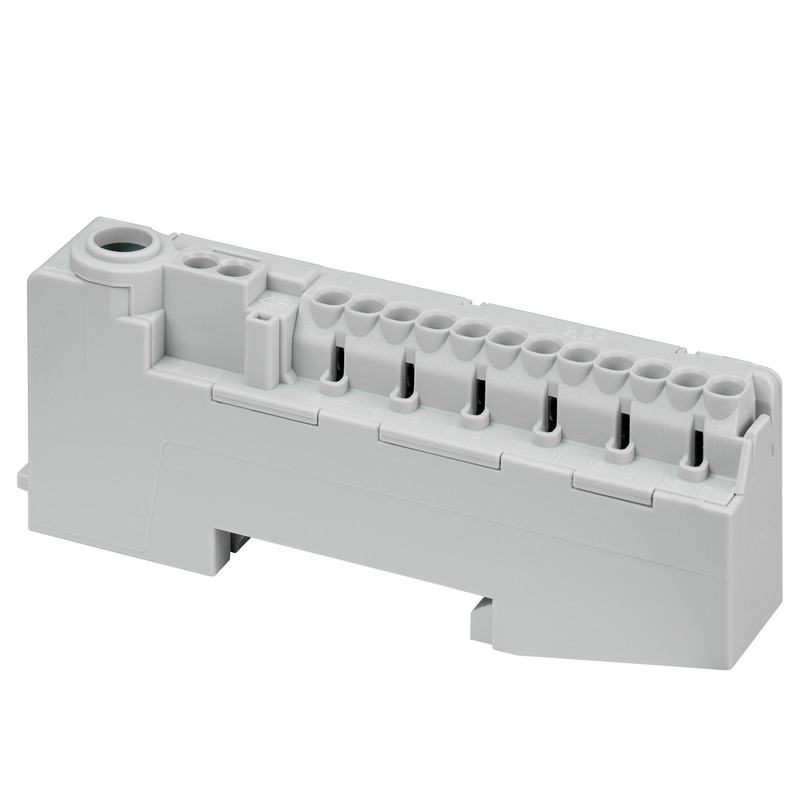

Plug clamps
Productnumber: 79032001 | Dimensions: 94 x 35 x 17 mm
Terminal, for rigid conductors, 15 clamping points, 1 screwable clamping point 25 mm² (1.5-25 mm² re, 1-16 mm² rf+AD), 2 screwless clamping points 4 mm² (1-4 mm² re, 1-2.5 mm² rf+AD), 12 screwless clamping points 2.5 mm² (1-2.5 mm² re, 0.75-1.5 mm² rf+AD), for assembly on 35 mm DIN mounting rail, for current carrying capacity of 76 A
Grey
| Rated operating voltage AC | 400 V |
|---|---|
| Number of poles | 1 |
| shockproof | Yes |
| Connection 1: Connection type | Screws |
| Connection 1: Strip length | 10 mm |
| Connection 1: Suitable for Cu conductors | 1 |
| Connection 1: Suitable for Al conductors | 0 |
| Connection 1: Connectable conductor cross-section, fine-wire without ferrule (min) | 1.5 mm² |
| Connection 1: Connectable conductor cross-section, fine-wire without ferrule (max) | 16 mm² |
| Connection 1: Connectable conductor cross-section, fine-wire with ferrule (min) | 1.5 mm² |
| Connection 1: Connectable conductor cross-section, fine-wire with ferrule (max) | 16 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (min) | 1.5 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (max) | 25 mm² |
| Connection 1: Connectable conductor cross-section, stranded (min) | 1.5 mm² |
| Connection 1:Connectable conductor cross-section, stranded (max) | 25 mm² |
| Connection 2: Connection type | Screwless |
| Connection 2: Clamping points per pole | 15 |
| Connection 2: Suitable for Al conductors | 0 |
| Connection 2: Connectable conductor cross-section, fine-wire without ferrule (min) | 0.75 mm² |
| Connection 2: Connectable conductor cross-section, fine-wire without ferrule (max) | 2.5 mm² |
| Connection 2: Connectable conductor cross-section, fine-wire with ferrule (min) | 0.75 mm² |
| Connection 2: Connectable conductor cross-section, fine-wire with ferrule (max) | 2.5 mm² |
| Connection 2: Connectable conductor cross-section, single-wire (min) | 1 mm² |
| Connection 2: Connectable conductor cross-section, single-wire (max) | 4 mm² |
| Width | 94 mm |
|---|---|
| Length | 35 mm |
| Height | 17 mm |
| Weight | 0.0396 kg |
| Glow-wire flammability according to EN 60695-2-11 | 960 °C |
|---|
| Connection 1: Tightening moment | 3 Nm |
|---|
| EAN | 4013902612093 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC001284 |
| Custom tariff number | 85369010 |
