Meter housing
Productnumber: 75250201 | Dimensions: 300 x 750 x 210 mm

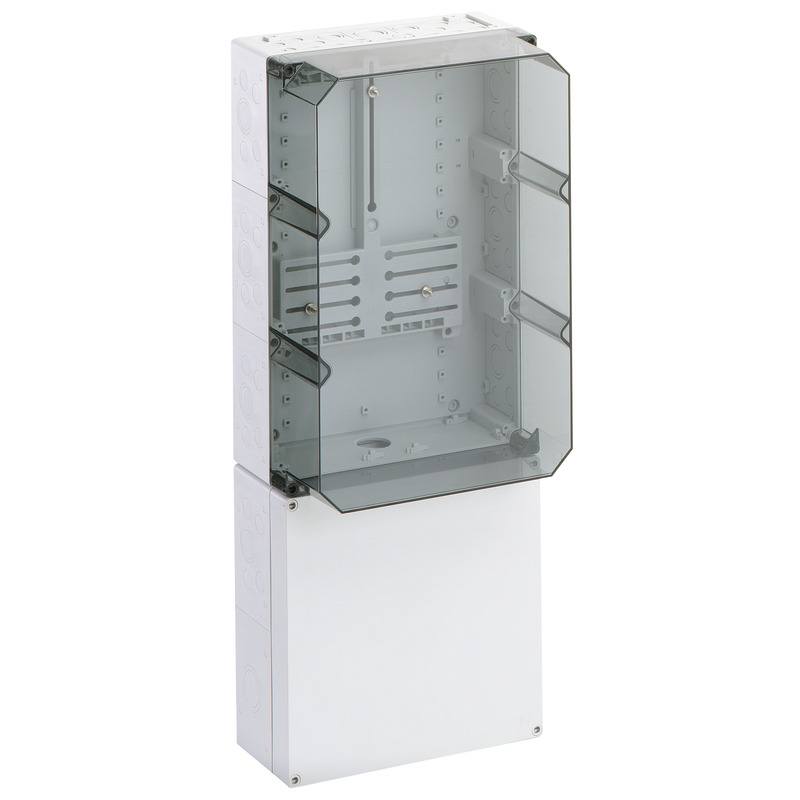

Meter enclosure, meter panel device installation surface in accordance to DIN 43870-1, with transparent cover, sealable as standard, with mounted meter cross for three-phase meters and meter fixing screws, separate, additional 300 mm terminal compartment below with 35 mm standard rail, with double membrane seals, sealing and insulating plugs
| Rated operating voltage AC | 400 V |
|---|---|
| Protection class | II |
| Type of protection | IP65 |
| UL Type Rating | not specified |
| Width | 300 mm |
|---|---|
| Length | 750 mm |
| Height | 210 mm |
| Weight | 4.52 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V2 |
| Glow-wire flammability according to EN 60695-2-11 | 850 °C |
| Type of fastening | Surface mounting |
|---|---|
| Impact strength | IK08 |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -35 °C |
| Max. ambient temperature | 80 °C |
| 24h ambient temperature | 60 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902885800 |
|---|---|
| Packing Unit Code | CT |
| ETIM Class | EC000248 |
| Custom tariff number | 85389099 |
| Base unit material | Polycarbonate |
|---|---|
| Cover material | Polycarbonate |
| Sealing material | Polyurethane |
| Cover screw material | Polyamide, glass-fibre reinforced |
| CAD-Data | Download 3D-CAD-Data |
|---|
