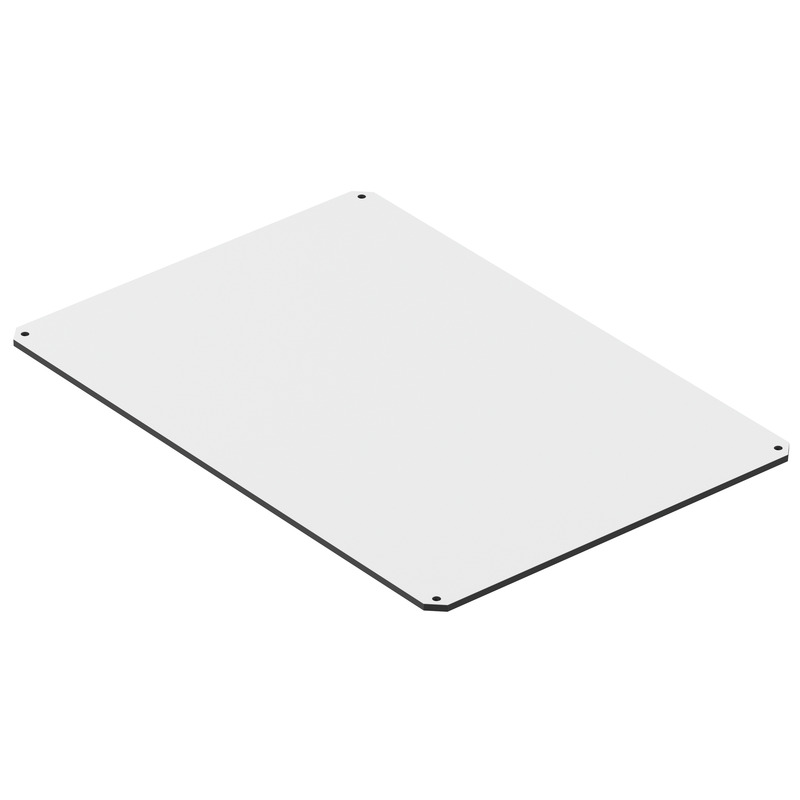

mounting plate interior frame
Productnumber: 72201401 | Dimensions: 231 x 331 x 4 mm
Installation board made of insulating material for the frame of GEOS cabinets, incl. fixing screws, for individual use, e.g. for the installation of command and signalling devices, material thickness: 4 mm
for GEOS-S 3040-18 to 22 and GEOS-S 4030-18 to 22
| Accessory colour | light grey |
|---|
| Width | 231 mm |
|---|---|
| Length | 331 mm |
| Height | 4 mm |
| Weight | 0.468 kg |
| Type of accessory | Cover |
|---|
| EAN | 4013902644322 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC002498 |
| Custom tariff number | 39219041 |
| Accessory material | insulating material |
|---|
| CAD-Data | Download 3D-CAD-Data |
|---|
Log in to mySpelsberg to download tender texts. mySpelsberg Login

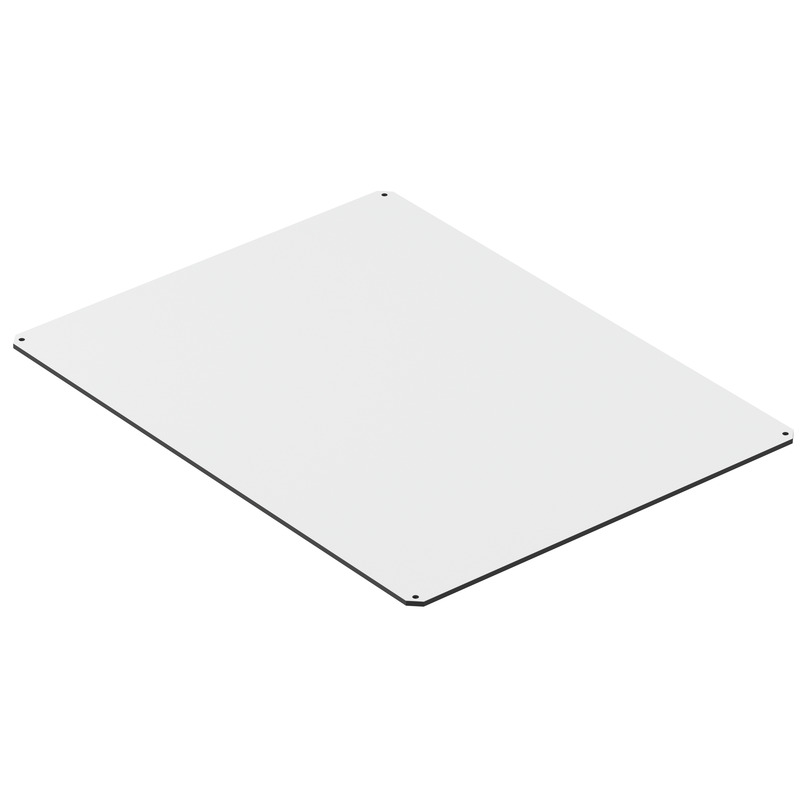

mounting plate interior frame GEOS-S EPR 4050/5040
