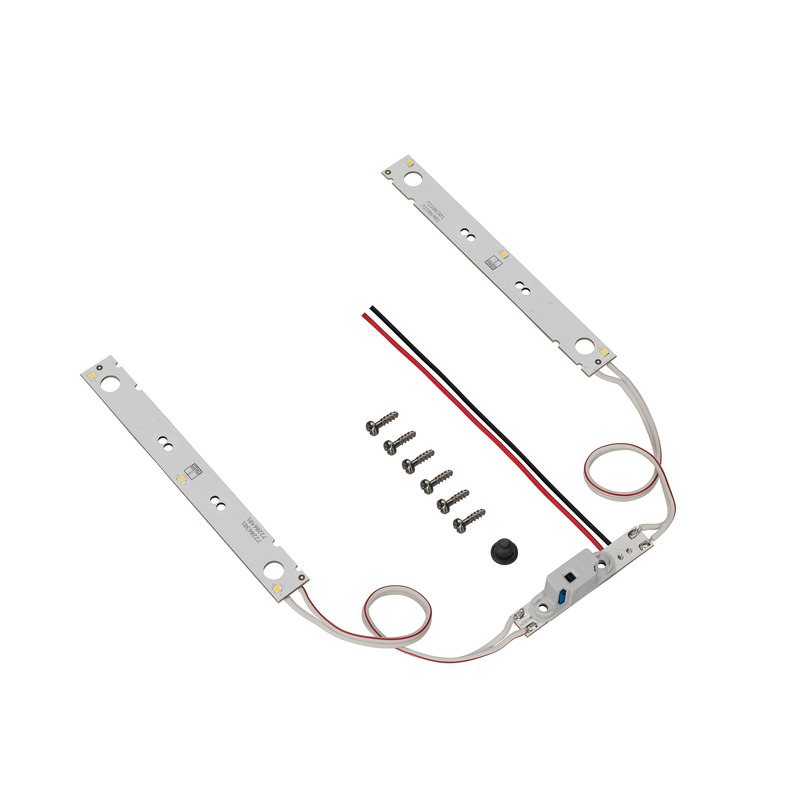

Innenbeleuchtungs-Set GEOS-S IBS 3040/4030 (72206401) Accessories: Spelsberg

Interior lighting set

GEOS-S IBS 3040/4030

Productnumber: 72206401 | Dimensions: 350 x 250 x 10 mm

Interior lighting set for lighting the interior of GEOS-S-control cabinets, including door contact switch and mounting accessories.

for GEOS-S 3040/4030

Built-in devices

LED, 24V 6

electrical characteristics

Colour temperature 5000 K
Luminous flux 256.8 lm

Colours

Accessory colour other

Dimensions

Width 350 mm
Length 250 mm
Height 10 mm
Weight 0.073 kg

mechanical properties

Type of accessory other

Sales Information

EAN 4013902650651
Packing Unit Code C62
ETIM Class EC002498
Custom tariff number 94054940

Material

Accessory material other

Download Data Sheet

Download Data Sheet

Handbook

Product manual EN pdf (13 MB)
Product manual DE pdf (9 MB)

Installation instructions

Assembly instruction pdf (7 MB)

Dimensioned drawing

Dimensional drawing pdf (129 KB)
Dimensional drawing dwg (228 KB)
Dimensional drawing dxf (1 MB)
Dimensional drawing jpg (1.011 KB)

Certificate

CE Declaration DE/EN/FR pdf (62 KB)
CE Declaration DE/EN/PL pdf (89 KB)
UKCA Declaration EN pdf (49 KB)

Accessories

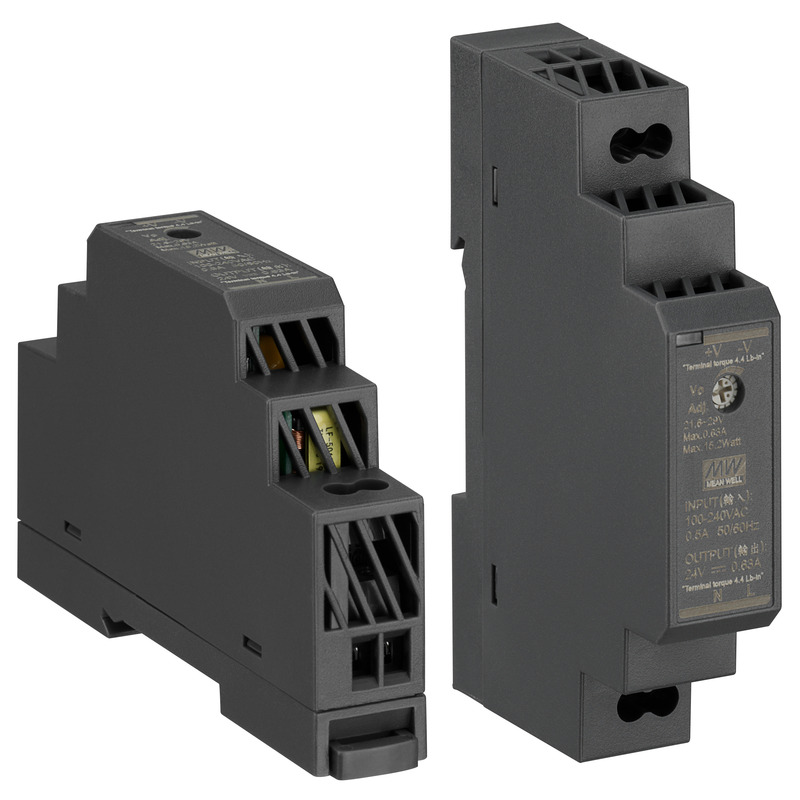

Power supply NT-35-24

  • Dimensions : 110 x 77 x 55 mm
  • Productnumber: 72212001



Mains supply unit for assembly on NS35 standard rail. Input voltage 85V to 264 V AC, output voltage...



Tender text

Similar products

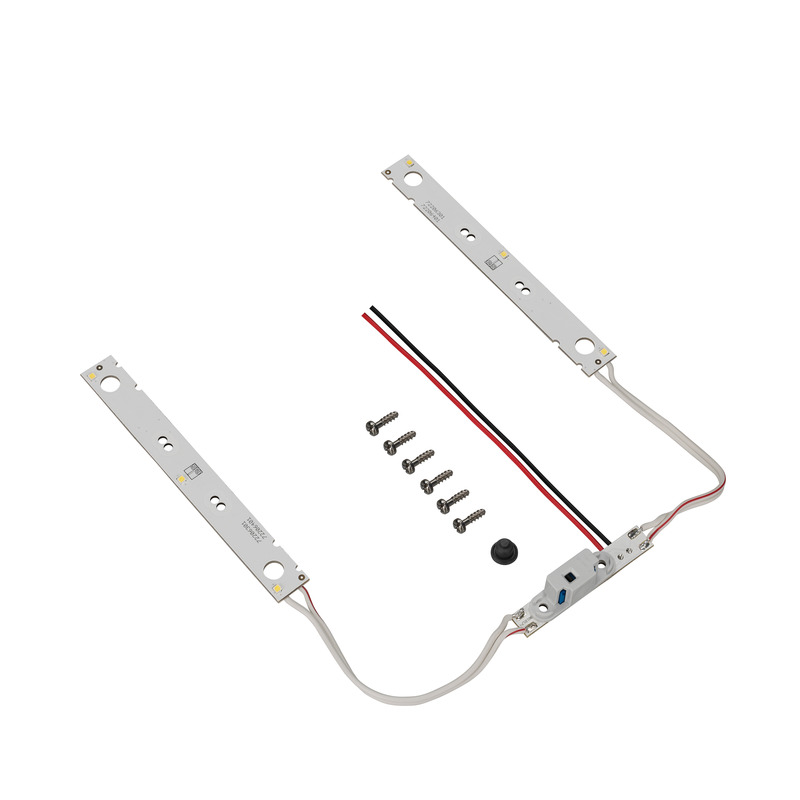

Interior lighting set GEOS-S IBS 3030

  • Dimensions : 350 x 250 x 10 mm
  • Productnumber: 72206301

for GEOS-S 3030



Interior lighting set for lighting the interior of GEOS-S-control cabinets, including door contact...

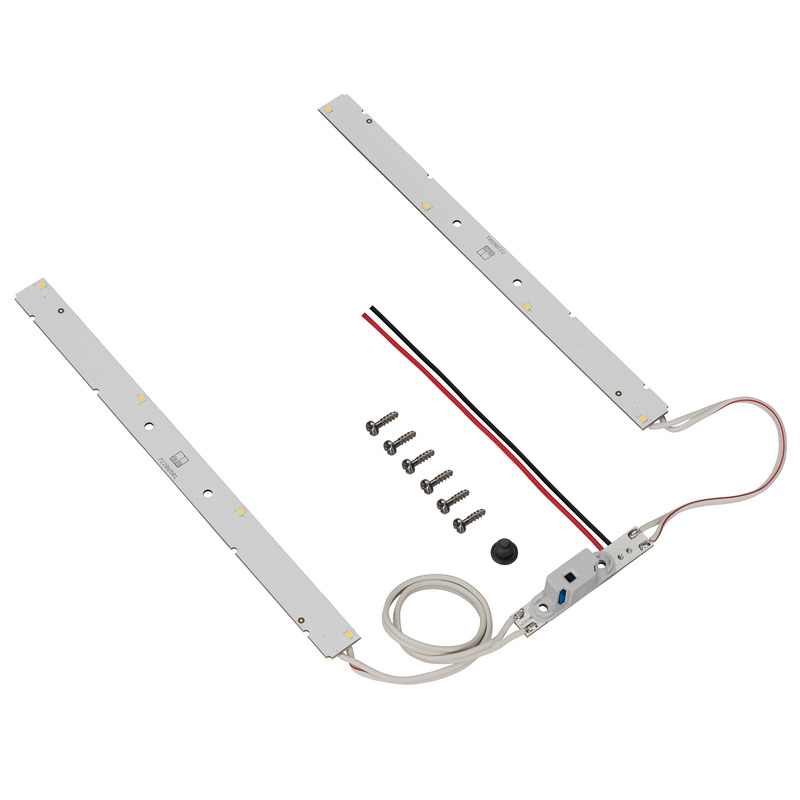

Interior lighting set GEOS-S IBS 4050/5040
