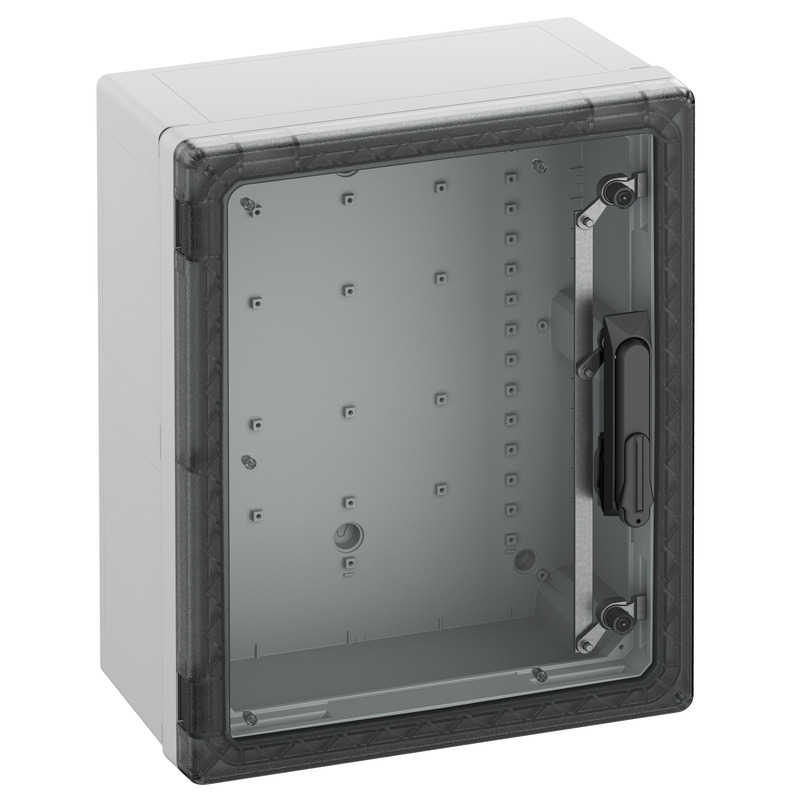

cabinet

GEOS-S 4050-22-to/SH

Productnumber: 72174501 | Dimensions: 400 x 500 x 226 mm

Cabinet, suitable for installation in harsh environments and in exposed outside areas, box and frame: glass-fibre reinforced polycarbonate, grey, similar to RAL 7035, door: Polycarbonate.
Swivel lever for inserting profile-cylinders in accordance to DIN 18252

with transparent door

electrical characteristics

Rated insulation voltage AC	1000 V
Rated insulation voltage DC	1500 V
Protection class	II
Type of protection	IP66/IP67/IP69
vented	no
UL Type Rating	4X, 12/12K

Colours

Base unit colour	grey
Cover colour	transparent

Dimensions

Width	400 mm
Length	500 mm
Height	226 mm
Inner length	471 mm
Inner width	371 mm
Inner height	204 mm
Weight	6.279 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Burning behaviour in accordance with UL 50/UL 746C	comparable with 5VA
Flammability class according with UL94	V2
Glow-wire flammability according to EN 60695-2-11	960 °C

mechanical properties

Type of fastening	Wall mounting
Impact strength	IK09
Sealable	yes
Flange variant	no
Stackable	no
Stop system	2-point installation, swivel lever
with fastening points in the cover	yes
Type of top part	Door
Locking insert	none

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	80 °C
24h ambient temperature	60 °C

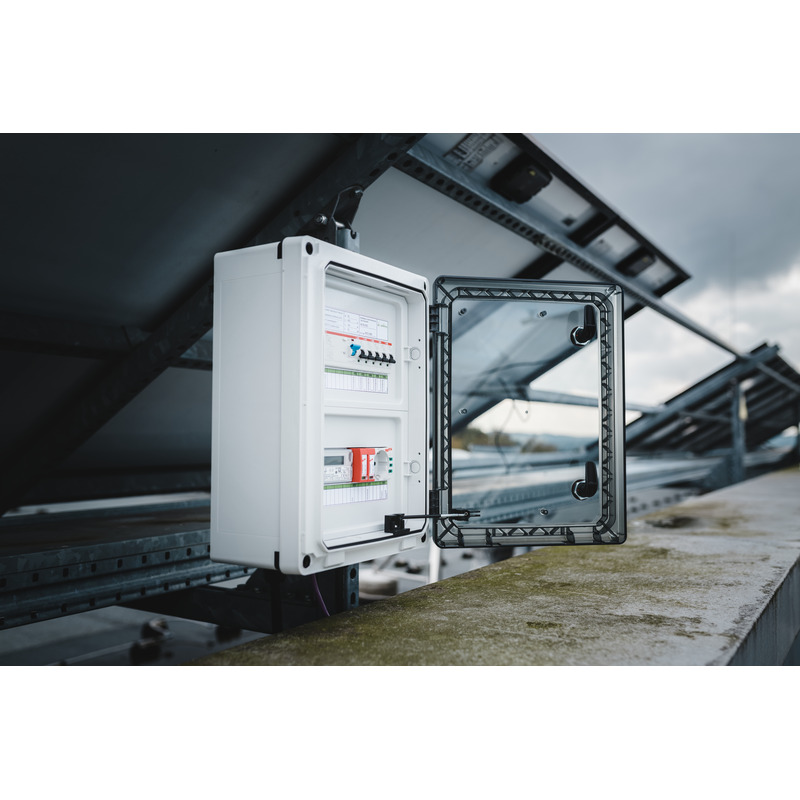

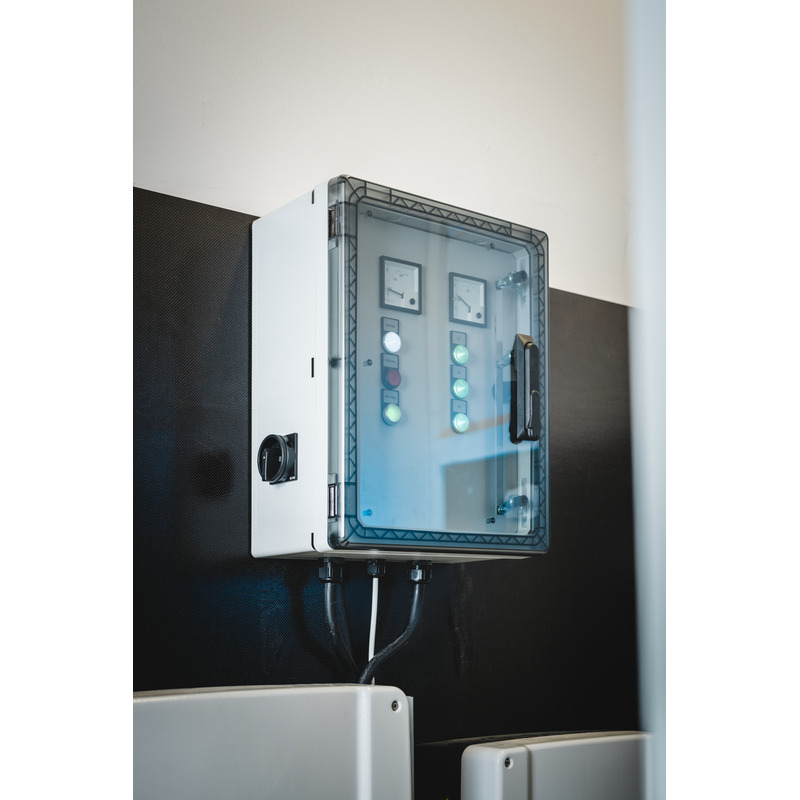

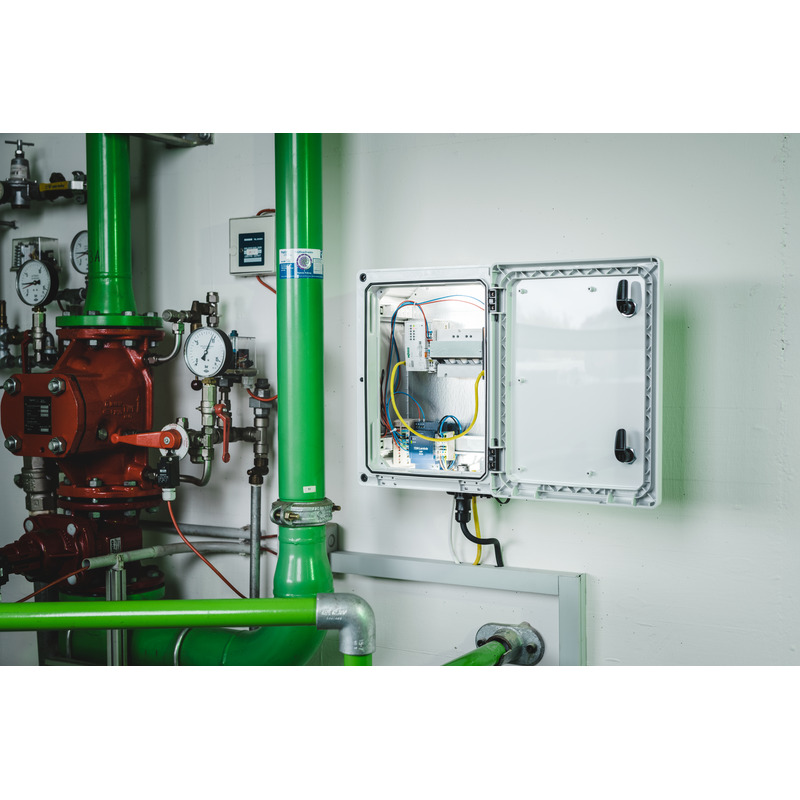

Installation location	unprotected outdoor areas

Sales Information

EAN	4013902646135
Packing Unit Code	CT
ETIM Class	EC000261
Custom tariff number	85389099

Material

Base unit material	Polycarbonate, glass-fibre reinforced
Cover material	Polycarbonate
Entry material	not relevant
Sealing material	Silicone
Cover screw material	Polyamide, glass-fibre reinforced

Certificates

Test mark	UL-EU (EN 62208)
Test mark	UL-EU (EN 61439-1/-2)
Test mark	UL-EU (EN 61439-1/-3)
Test mark	UL-EU (EN 61439-1 & EN IEC 61439-7)
Test mark	DLG (Ammonia resistance)
Test mark	DNV (Class: Ships and Offshore Installations)

Download Data Sheet

Download Data Sheet

Handbook

Product manual EN	pdf (13 MB)
Product manual DE	pdf (9 MB)

Installation instructions

Assembly instruction DE/EN/FR	pdf (828 KB)
Assembly instruction	pdf (2 MB)

Dimensioned drawing

Dimensional drawing	dxf (19 MB)
Dimensional drawing	pdf (3 MB)
Dimensional drawing	dwg (4 MB)
Dimensional drawing	jpg (1 MB)

Certificate

UL-EU Certificate (EN 61439-3) EN	pdf (234 KB)
CE Declaration DE	pdf (129 KB)
UL-EU Certificate (EN 61439-2) EN	pdf (230 KB)
UKCA Declaration EN	pdf (51 KB)
DNV Certificate EN	pdf (205 KB)
Manufacturer Declaration DE/EN	pdf (680 KB)
UL-EU Certificate (EN 62208) EN	pdf (236 KB)
UL-EU Certificate (EN 61439-7) EN	pdf (231 KB)
CE Declaration PL	pdf (132 KB)
DLG Approval DE	pdf (703 KB)
DLG Approval EN	pdf (936 KB)

Accessories

lock fittings for swivel lever GEOS-S SGA-DB/3

Dimensions : 80 x 120 x 10 mm
Productnumber: 72206001

Double-bit 3 mm mandrel

Profile-cylinders for GEOS-S cabinets with swivel lever
