Junction box
Productnumber: 40290701 | Dimensions: 80 x 80 x 38 mm

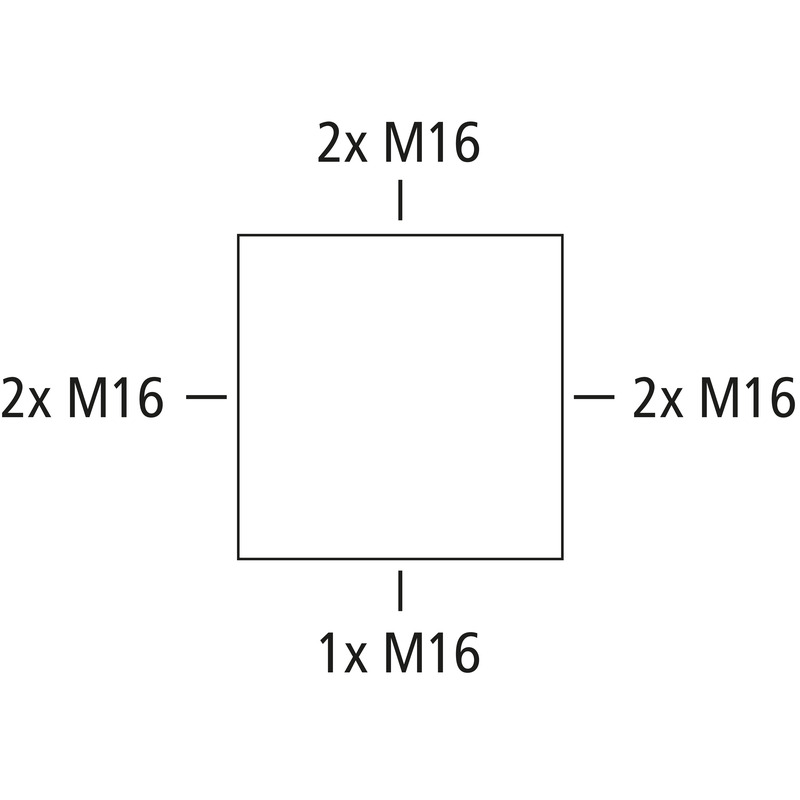

Junction box, protection class IP54, nominal cross-section 2.5 mm², Ui=400 V AC, knockouts, M16, (7 side), internal fixing points, for standard indoor installations
grey, without terminals
Accessories supplied:
4 Attachment bushes IP54 M16 sealing range 6 - 10 mm, 1 sealing plugs M16
| Rated insulation voltage AC | 400 V |
|---|---|
| Max. conductor cross section | 2,5 mm² |
| Protection class | II |
| Type of protection | IP54 |
| UL Type Rating | not specified |
| Base unit colour | grey |
|---|---|
| Cover colour | grey |
| Width | 80 mm |
|---|---|
| Length | 80 mm |
| Height | 38 mm |
| Weight | 0.116 kg |
| UV-resistant | no |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V0 |
| Glow-wire flammability according to EN 60695-2-11 | 960 °C |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK05 |
| Sealable | no |
| Cover screw torque | 1.8 Nm |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902040094 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC002600 |
| Custom tariff number | 85389099 |
| Base unit material | Duroplast |
|---|---|
| Cover material | Duroplast |
| Sealing material | Thermoplastic elastomer |
| Cover screw material | Steel |
