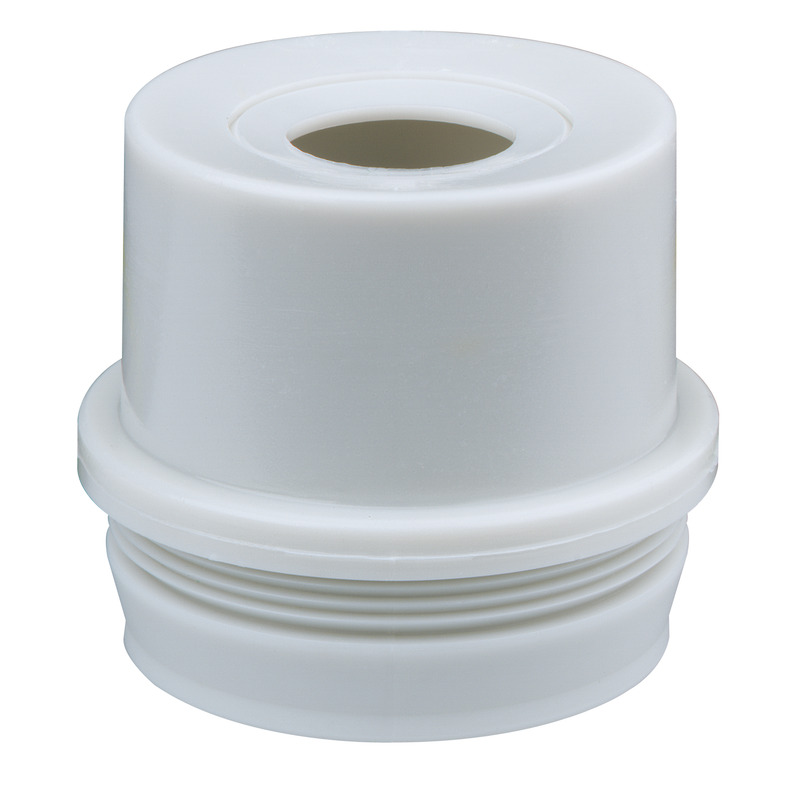

Mounting socket IP55, with open sealing membrane, thermoplastic elastomer (TPE), for wall thicknesses from 1.5 - 4.0 mm, grey
Sealing range 6 - 10 mm
Attachment bushes
AST M16
Productnumber: 23041601 | Dimensions: 20,5 x 20,5 x 22,5 mm
electrical characteristics
| Type of protection | IP55 |
|---|
Colours
| Accessory colour | light grey |
|---|
Dimensions
| Width | 20.5 mm |
|---|---|
| Length | 20.5 mm |
| Height | 22.5 mm |
| Nominal size | M16 |
| Weight | 0.002 kg |
Material characteristics
| UV-resistant | no |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | HB |
| Glow-wire flammability according to EN 60695-2-11 | 650 °C |
mechanical properties
| for sealing range min | 6 mm |
|---|---|
| for sealing range max | 10 mm |
Ambient conditions
| Installation location | Indoors |
|---|
Sales Information
| EAN | 4013902852116 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC000451 |
| Custom tariff number | 39269097 |
CAD-Data
| CAD-Data | Download 3D-CAD-Data |
|---|
