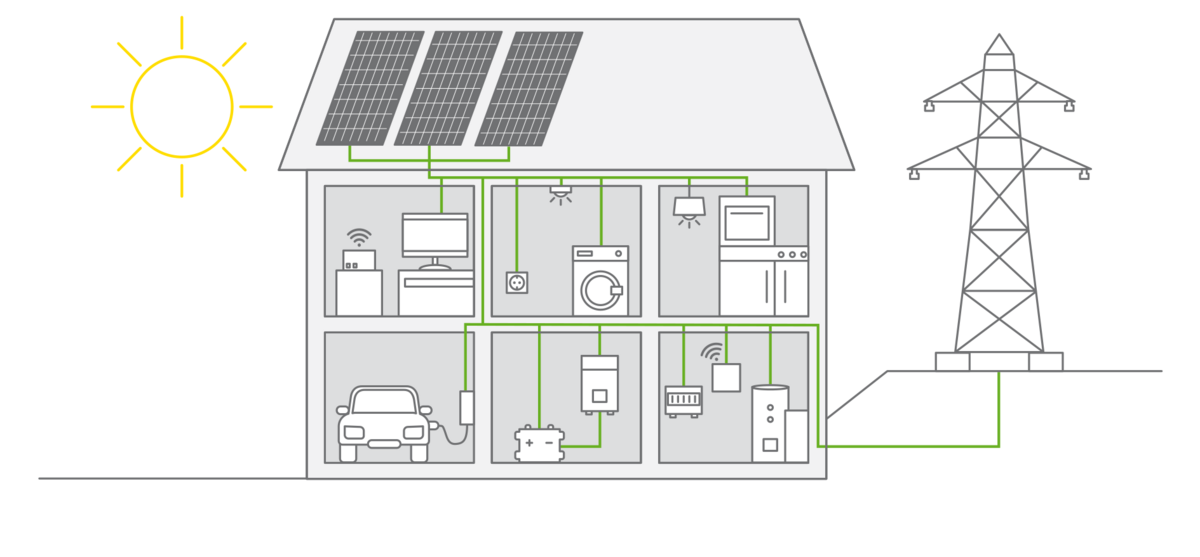

The Spelsberg Wallbox can be incorporated as part of an energy management system (EMS). The EMS controls all energy flows in the system, including PV systems, energy storage and loads. Thanks to intelligent control of the energy flows, in the ideal situation only self-generated energy is used as a supply. This significantly increases consumption from own sources and independence from mains power. Please refer to our compatibility list to find out which energy management systems the Spelsberg Wallbox is compatible with. List of compatible EMS.
There are three ways to connect the Spelsberg Wallbox to an energy management system. To do this, open the app and go to System and then to Settings. Next click System integration and then External control. At this point, you can choose between integration via SMA SEMP, EEBus or Modbus TCP and continue with the configuration as described below. In principle, all devices must be in the same network for integration. Information on network integration can be found here Network integration.
To configure the Spelsberg Wallbox Smart Pro with the Sunny Home Manager 2.0 via SMA SEMP, follow the settings in the Spelsberg Wallbox app. Detailed information on the various charging modes and the functions of the Spelsberg Wallbox Smart Pro in conjunction with the Sunny Home Manager 2.0 can be found here (Insert LINK to page). The following parameters must be set:
Parameter overview | |
App Parameter | Settings |
SMA SEMP interface | Activate |
SMA charging mode | Selection:
|
SMA minimum energy demand [kWh] | Input [0-1,000 kWh] _ _ _ _ _ |
SMA maximum energy demand [kWh] | Input [0-1,000 kWh] _ _ _ _ _ |
SMA planned departure time | Enter the desired time in the format HH:MM |
Current limitation in the event of failure of the SEMP gateway [A] | Set the maximum charging current (6 - 16 A), in 1 A steps in the event of loss of connection to the Sunny Home Manager 2.0 |
Once parametrisation is complete, click Apply and transfer the settings to the Spelsberg Wallbox via NFC or network communication.
To configure the Spelsberg Wallbox Smart Pro via EEBus, follow the settings in the Spelsberg Wallbox app. The following parameters must be set.
Parameter overview | |
App Parameter | Settings |
EEBUS interface | Activate |
Link EEBUS | When the EEBUS capable EMS is displayed, click "Link" and transfer the data to the Spelsberg Wallbox via NFC |
EEBUS charging mode | Selection:
|
Cost-optimised charging | Activate |
Charging current in the event of a connection failure [A] | Sets the maximum charging current (6 - 16 A), in 1 A steps in the event of loss of connection to the EMS |
Once parametrisation is complete, click Apply and transfer the settings to the Spelsberg Wallbox via NFC or network communication.
To configure the Spelsberg Wallbox Smart Pro via Modbus TCP, follow the settings in the Spelsberg Wallbox app. The following parameters must be set.
Parameter overview | |
App Parameter | Settings |
Modbus TCP server | Activate |
Modbus register set | Selection: |
Allow Start/Stop of charging processes | Activate |
Modbus TCP server device address | Input [0-255 kWh] _ _ _ _ _ |
Modbus TCP server port | Input [0-65535 kWh] _ _ _ _ _ |
Note: Information on the Modbus registers is available on request from our technical service.
Once parametrisation is complete, click Apply and transfer the settings to the Spelsberg Wallbox via NFC or network communication.
