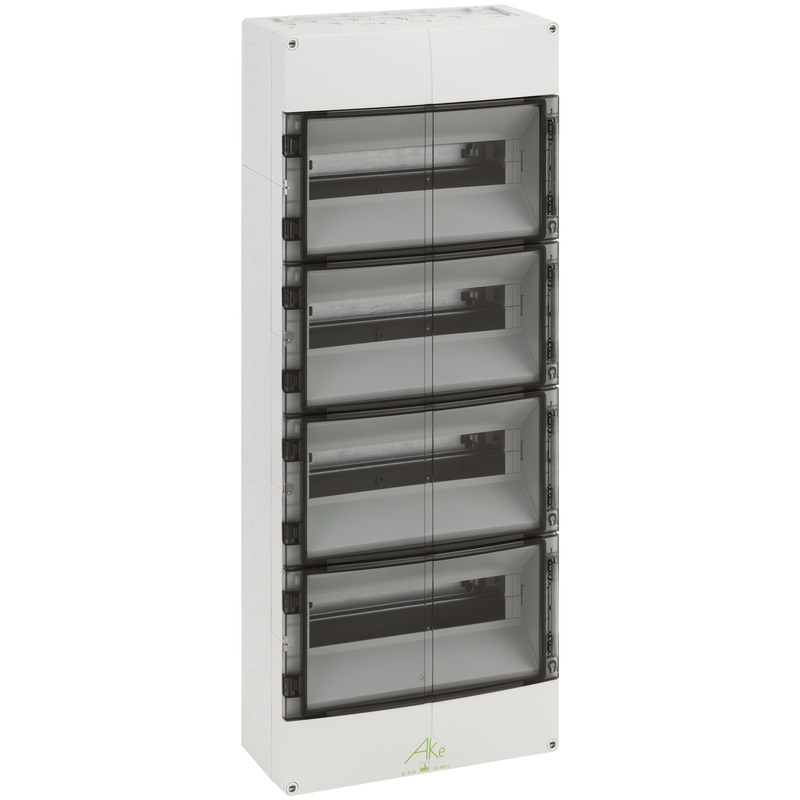

AKe 48

Productnumber: 73554801 | Dimensions: 300 x 750 x 142 mm

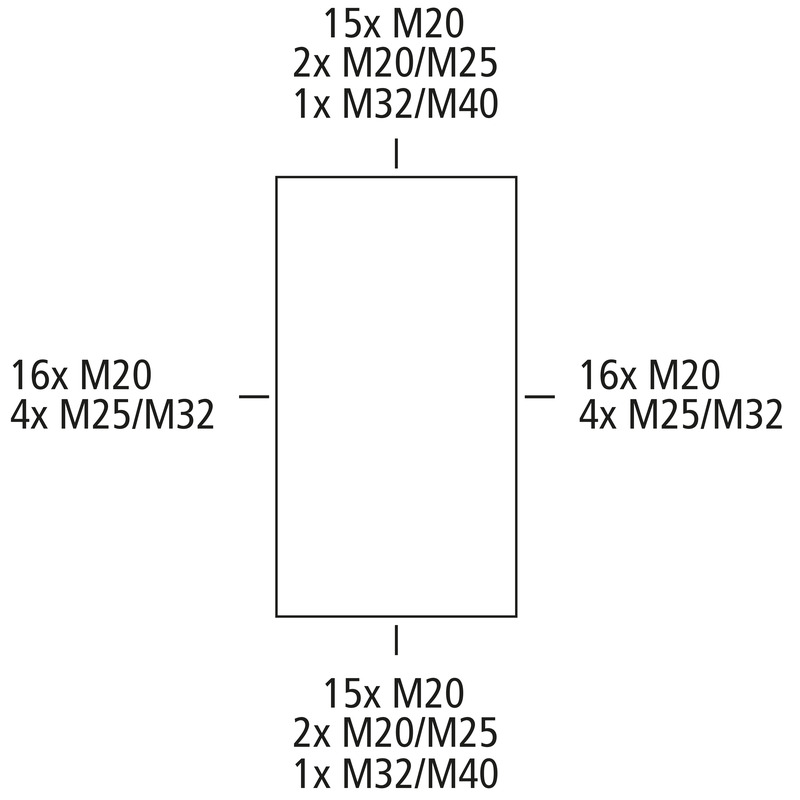

Small distributions boards, protection class IP55, 4 rows, 48 available modules, rated operational voltage: 400V AC, rated insulation voltage: 690V AC, 690V DC, metric knockouts on top and bottom for universal cable insertions with cable glands, double membrane seals and/or stepped nipples, for standard installations indoors

with PE/N terminal rail, each with 1 terminal point 25 mm², 6 clamping points 16mm² and 18 clamping points 6 mm²

Accessories supplied:
Stepped nipples: 25x M20, 2x M25, 1x M32, 1x M40, sealing plugs, cover and labelling strips

Highlights

Greater flexibility - Thanks to the 5 variants with 14 to 70 distribution units, it offers the right distributor solution for every application.

electrical characteristics

Rated operating voltage AC	400 V
Rated insulation voltage AC	690 V
Rated insulation voltage DC	690 V
Protection class	II
Type of protection	IP55
Number of N-potentials	1
Number of rows	4
Number of modules	48
Number of modules per row	12

Colours

Base unit colour	grey

Dimensions

Width	300 mm
Length	750 mm
Height	142 mm
Inner height	95 mm
Weight	4.34 kg

Material characteristics

UV-resistant	no
Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability according to EN 60695-2-11	650 °C

mechanical properties

Type of fastening	Surface mounting
Impact strength	IK07
Sealable	yes
Stackable	yes

Ambient conditions

Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	Indoors

Sales Information

EAN	4013902911691
Packing Unit Code	CT
ETIM Class	EC000214
Custom tariff number	85369095

Material

Base unit material	Polystyrene
Cover material	Polystyrene
Sealing material	Polyurethane
Cover screw material	Polyamide, glass-fibre reinforced
Hinged window material	Polycarbonate
