STV 923-K

Productnumber: 72942301 | Dimensions: 200 x 400 x 122 mm

Socket outlet combination, protection class IP44, ready for connection, according to EN 61439-3, high mechanical strength, temperature-resistant, can be combined

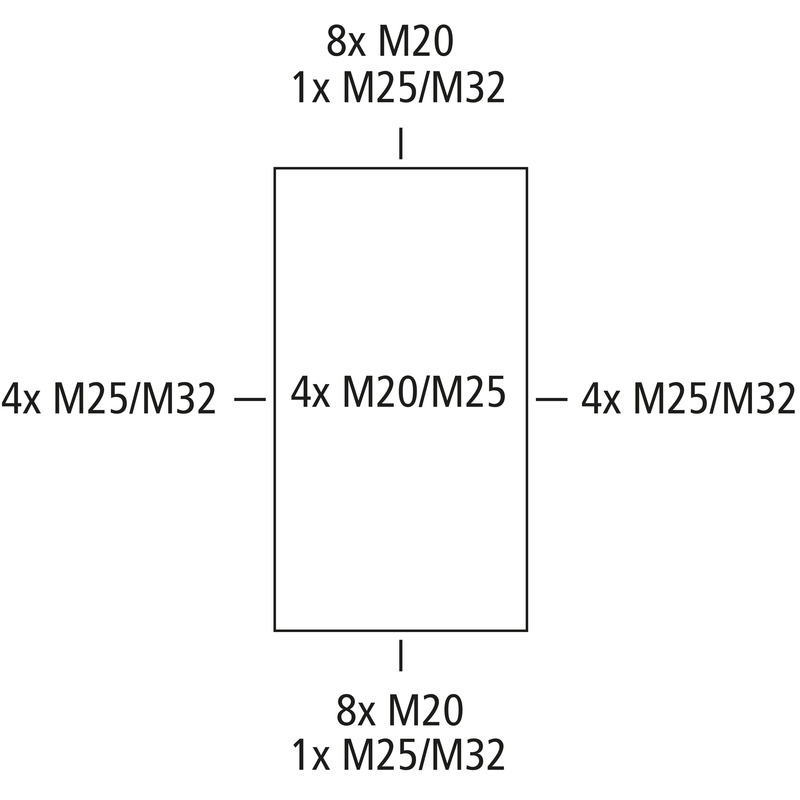

Cable insertions:
Top: Pre-embossing 8 x M20, 1 x M25/32
Bottom: Pre-embossing 8 x M20, 1 x M32/25
Left: Pre-embossing 4 x M20/25
Right: Pre-embossing 4 x M20/25
Rear: Pre-embossing 4 x M20/25

equipped with:

2 x Miniature circuit breaker B16A, 1-pin
1 x Miniature circuit breaker C 16 A, 3p
1 x Miniature circuit breaker C 32 A, 3p
3 x SCHUKO^® plug socket (on front), 230V
1 x CEE plug socket outlet (on front) 16A, 400V
1 x CEE plug socket outlet (on front) 32A, 400V

Accessories supplied:
Attachment bushes: 2x M25, 2x M32, sealing plugs, masking and labelling strips

Built-in devices

Miniature circuit breaker B16A, 1-pin	2
Miniature circuit breaker C 16 A, 3p	1
Miniature circuit breaker C 32 A, 3p	1
SCHUKO^® plug socket (on front), 230V	3
CEE plug socket outlet (on front) 16A, 400V	1
CEE plug socket outlet (on front) 32A, 400V	1

electrical characteristics

Rated insulation voltage AC	400 V
Protection class	II
Type of protection	IP44
Number of N-potentials	1
Number of rows	1
Number of modules per row	9
with N terminal	yes
with PE terminal	yes

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	200 mm
Length	400 mm
Height	122 mm
Weight	3.38 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V2
Glow-wire flammability according to EN 60695-2-11	850 °C

mechanical properties

Type of fastening	Wall mounting
Impact strength	IK08

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902934690
Packing Unit Code	C62
ETIM Class	EC000379
Custom tariff number	85369095

Material

Base unit material	Polycarbonate, glass-fibre reinforced
Cover material	Polycarbonate, glass-fibre reinforced
Sealing material	Polyurethane
Cover screw material	Polyamide, glass-fibre reinforced
Hinged window material	Polycarbonate

Download Data Sheet

Download Data Sheet

Dimensioned drawing

Circuit diagram	jpg (610 KB)
Dimensional drawing	pdf (447 KB)
Dimensional drawing	dwg (770 KB)
Dimensional drawing	dxf (4 MB)
Dimensional drawing	jpg (2 MB)
Circuit diagram	pdf (56 KB)
