STG 024

Productnumber: 73222401 | Dimensions: 250 x 200 x 122 mm

Socket enclosure, protection class IP44, with integrated, pre-wired sockets, high mechanical resilience, non-sensitive to temperature, combinable, halogen-free

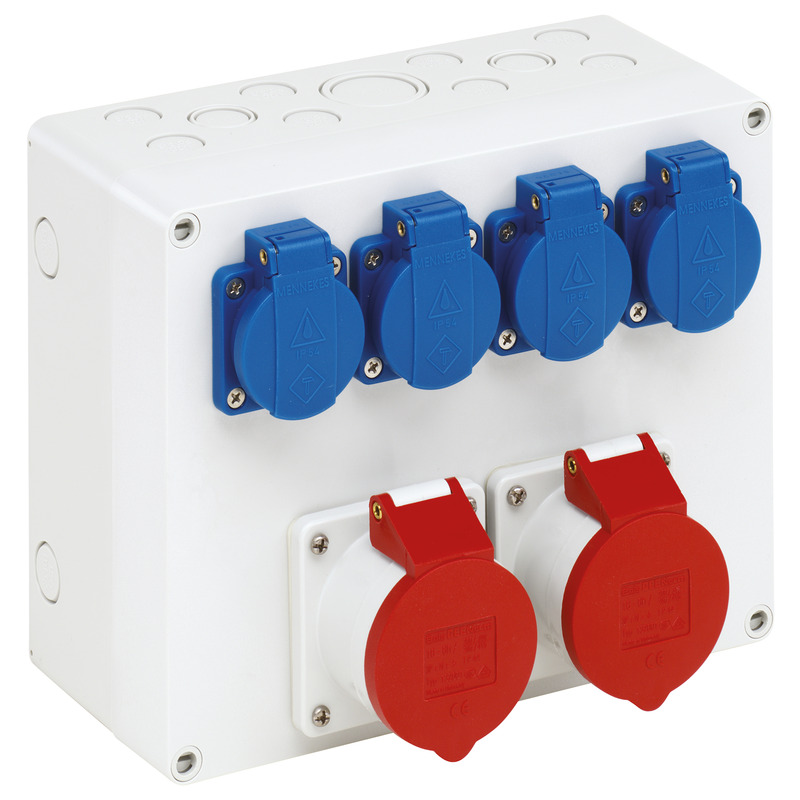

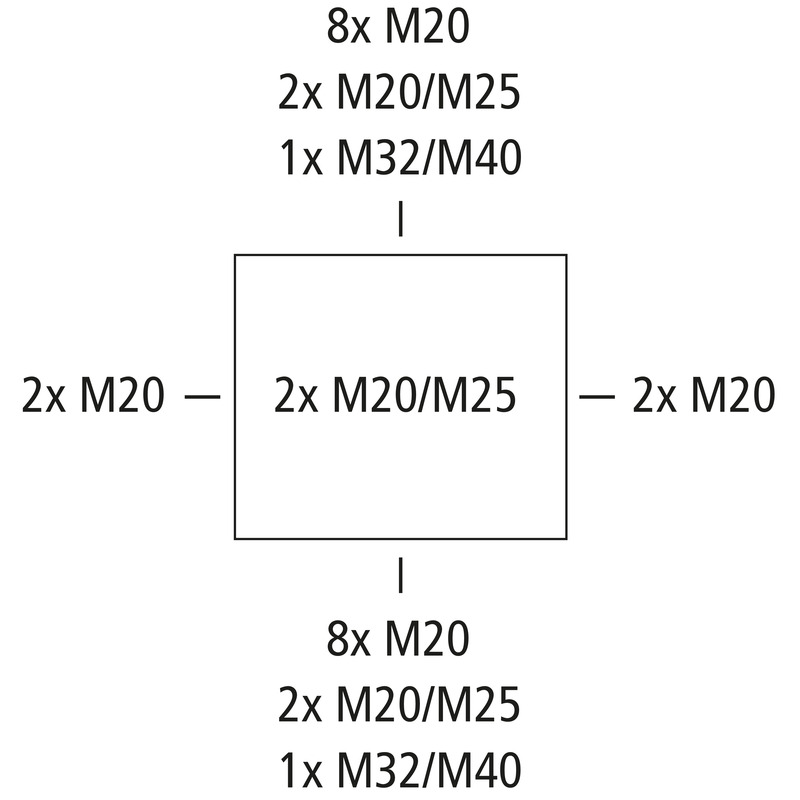

Cable insertions:
Top: Pre-embossing 8 x M20, 2 x M20/25, 1 x M32/40
Bottom: Pre-embossing 8 x M20, 2 x M20/25, 1 x M32/40
Left: Pre-embossing 2 x M20
Right: Pre-embossing 2 x M20
Rear: Pre-embossing 2 x M20/25

equipped with:

4 x SCHUKO^® plug socket (on front), 230V
2 x CEE plug socket outlet (on front) 16A, 400V

Accessories supplied:
Attachment bushes: 2x M25, 2x M32, sealing plugs

Built-in devices

SCHUKO^® plug socket (on front), 230V	4
CEE plug socket outlet (on front) 16A, 400V	2

electrical characteristics

Rated insulation voltage AC	400 V
Protection class	II
Type of protection	IP44
Number of rows	0

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	250 mm
Length	200 mm
Height	122 mm
Weight	1.765 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V2
Glow-wire flammability according to EN 60695-2-11	850 °C

mechanical properties

Type of fastening	Wall mounting
Impact strength	IK08

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C

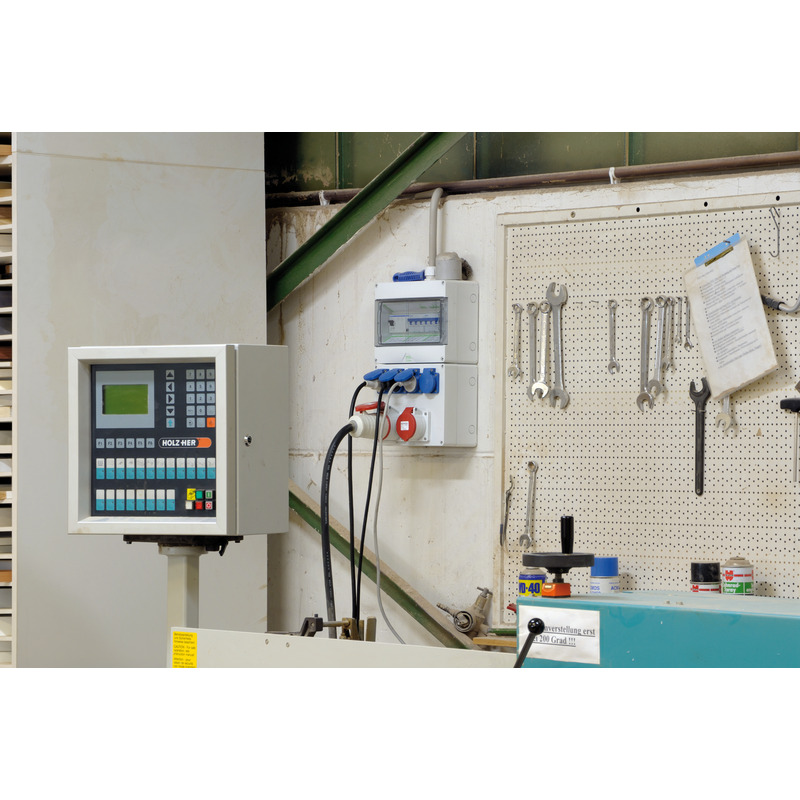

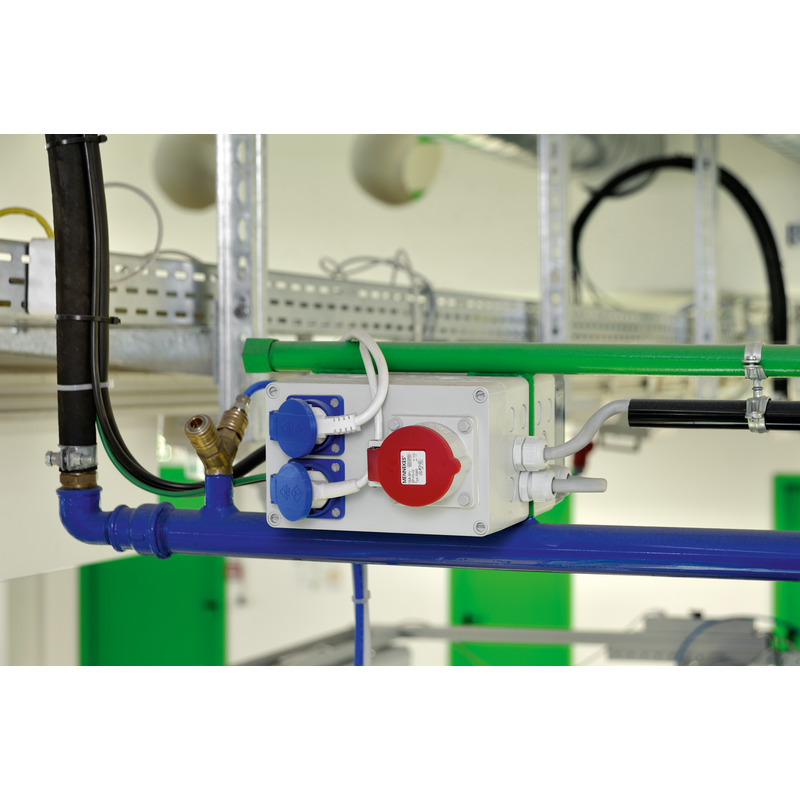

Installation location	protected outdoor areas

Sales Information

EAN	4013902934911
Packing Unit Code	C62
ETIM Class	EC000379
Custom tariff number	85369095

Material

Base unit material	Polycarbonate, glass-fibre reinforced
Cover material	Polycarbonate, glass-fibre reinforced
Sealing material	Polyurethane
Cover screw material	Polyamide, glass-fibre reinforced

Download Data Sheet

Download Data Sheet

Dimensioned drawing

Dimensional drawing	pdf (221 KB)
Dimensional drawing	dwg (383 KB)
Dimensional drawing	dxf (2 MB)
Dimensional drawing	jpg (1 MB)
Circuit diagram	pdf (46 KB)
Circuit diagram	jpg (769 KB)
