Kabelblende AK KBL (79240001) Socket housing: Spelsberg
This article is archived!

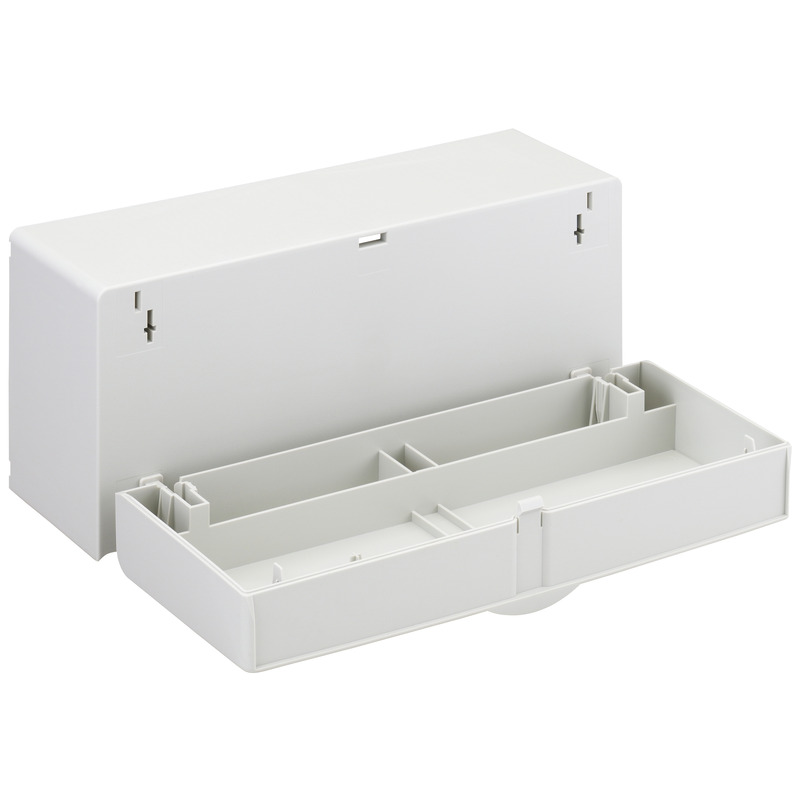

Cable cover

AK KBL

Productnumber: 79240001 | Dimensions: 300 x 90 x 125 mm

for installation in the components of the AK enclosure system (until 04/15) for 300 mm wide end walls, with cable covers as standard

Dimensions

Width 300 mm
Length 90 mm
Height 125 mm
Weight 0.41 kg

Material characteristics

Flammability class according with UL94 HB
Glow-wire flammability according to EN 60695-2-11 650 °C

mechanical properties

Type of accessory other

Ambient conditions

Installation location protected outdoor areas

Sales Information

ETIM Class EC002287
Custom tariff number 85389099

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction DE/EN/FR/ES pdf (454 KB)

Dimensioned drawing

Dimensional drawing jpg (694 KB)
Dimensional drawing pdf (71 KB)
Dimensional drawing dxf (1.005 KB)
Dimensional drawing dwg (178 KB)

Tender text
